SKU 006731
Save 3% Save 3%
$158.31
$158.31 - $158.31
$158.31
$153.70
$153.70 - $153.70
$153.70
CALIFORNIA WARNING

Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information see www.P65Warnings.ca.gov/motor-vehicle-parts.

Not CARB legal – cannot ship to CA

Color: Black
Spring Rating: 14psi
Style: Bent
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 765 points to redeem on future purchases. Check your points.

DUE TO THE CUSTOM-BUILT NATURE OF THE MV-SERIES, LEAD TIMES MAY VARY.

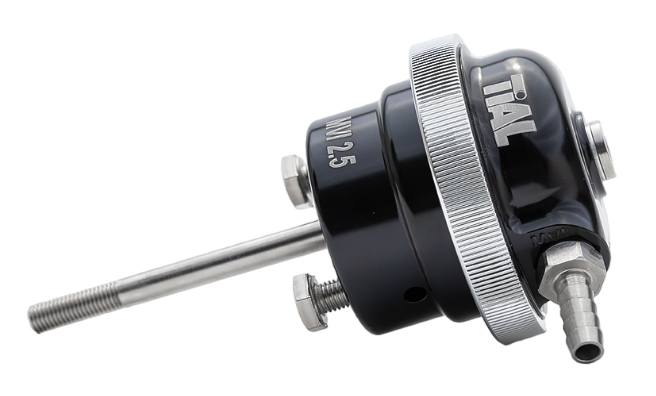

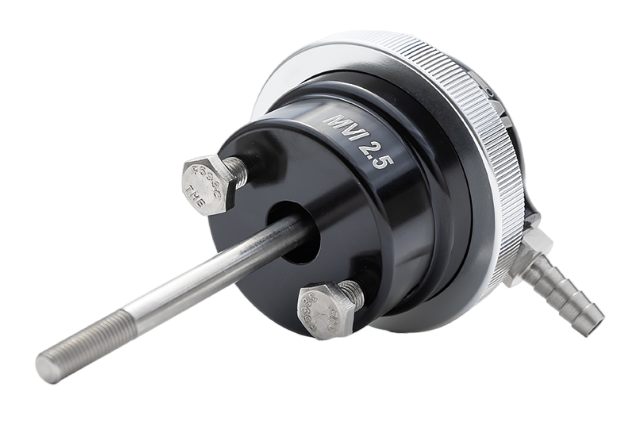

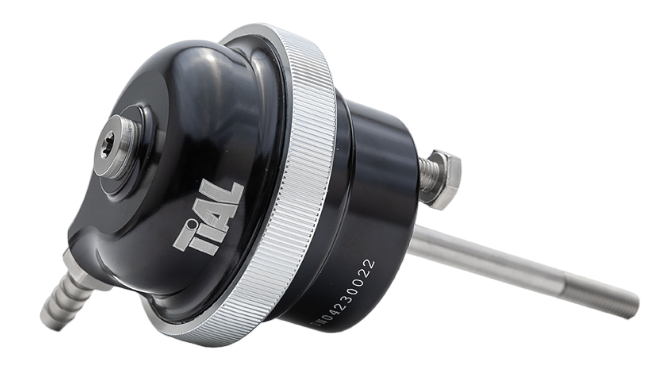

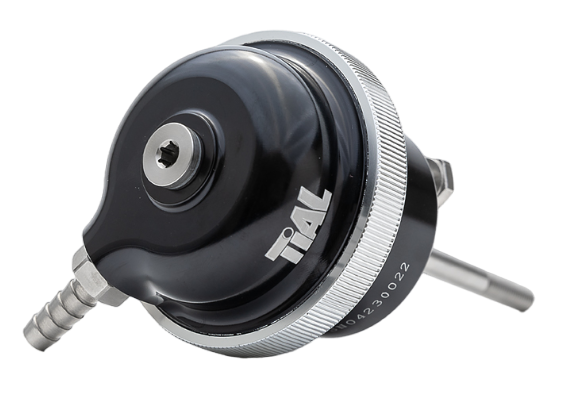

The MV-I 2.5 is a modular, compact wastegate actuator designed to replace the popular O.E. 480099-XXXX units found on many turbochargers. It works especially well with the TiALSport IWG series of turbine housings.

Standard configurations provide for both offset-bent and straight, 4.33" O.A.L. stem designs, but multiple hardware options are available in our Spare Parts section.

Technical Specifications:

- Aluminum housings, fully-anodized for corrosion and wear resistance and an attractive appearance.

- High temperature silicone reinforced actuator diaphragm.

- Stainless Steel actuator spring gives consistent pressure at high temperatures.

- Universal two-bolt mounting pattern.

- M8 air fitting ports, with optional locations.

NOTE:

The MV-I 2.5 is sold with no linkage connection, but rather, with a 1/4"-UNF threaded stem which adapts easily to existing hardware. Optional hardware is also available in our Spare Parts section.

 Included in the package:

- MV-I 2.5 Actuator assembly

- Air fitting set

- Attachment bolts




This part also goes by the following cross reference.

Cross Reference Part Number:
