Integrated Engineering
Availability:
Out of stock
SKU IETPCK6
Sold out
$447.99 - $447.99
$447.99
$447.99 - $447.99
$447.99
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 2235 points to redeem on future purchases. Check your points.

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

The IE Aluminum Charge Pipe Kit for Audi B9 S4, S5, & SQ5 eliminates factory bottlenecks and weak plastic materials for increased flow and strength. Our TIG-welded individual billet hose ends provide a reliable crush-proof base with grip-lock ribbing to keep boost hoses securely in place in even the most demanding performance and hybrid turbo builds.

  • Replaces restrictive, pinched, and plastic stock parts

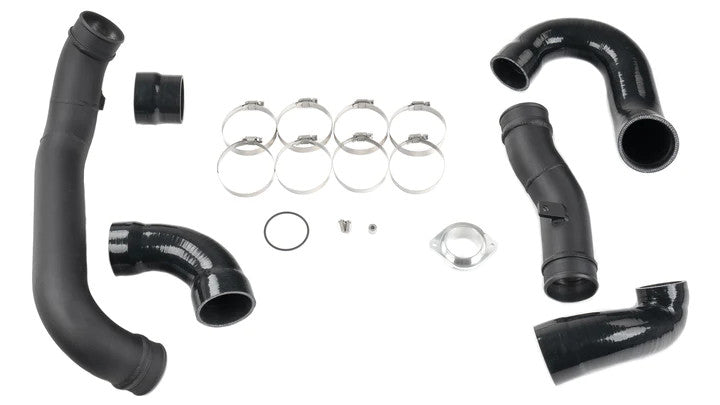

  • Includes complete replacement from turbo to throttle body

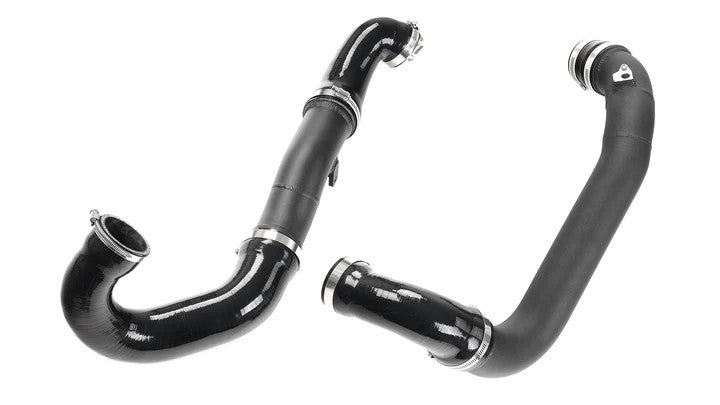

  • Aluminum hot side and cold side charge pipes
  • Constant diameter design removes factory bottlenecks
  • Larger 67mm inner diameter vs. small stock 63.5mm diameter
  • Mandrel bent piping & smooth silicone reduce turbulence
  • Reliable long-life TIG welded aluminum
  • Strong crush-proof individual billet hose ends
  • Secure CNC-machined radius edge and grip-lock ribbing
  • 100% complete bolt-in replacement
  • Black powder coat finish for a long-lasting attractive look

INCREASE FLOW

BREATHE EASY

IE charge pipes are performance engineered to eliminate the stock-equipped intercooler piping's small diameter, pinched sections, and abrupt bends. Our increased 67mm consistent sizing and smooth flow path remove any possibility for flow restrictions or power limitations from the charge piping on performance builds.

RELIABLE MATERIALS

BOOST WITHOUT WORRY

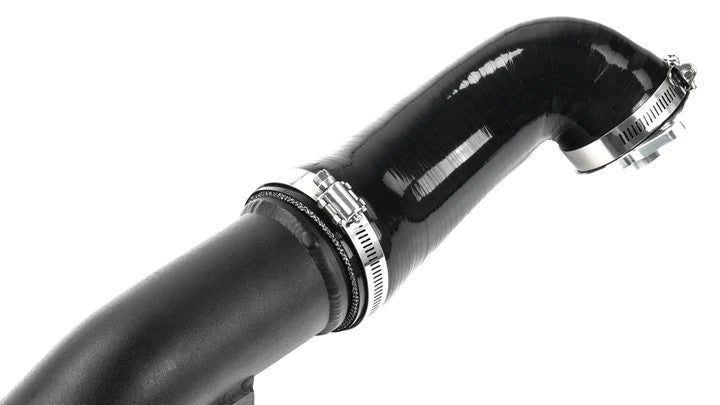

Say goodbye to cracked plastic, inferior materials, and boost leaks for good. Our kit replaces both the hot and cold side piping with mandrel bent and TIG welded aluminum charge pipes for maximum durability and performance. We've also upgraded the couplers with strong five-ply smooth-flow silicone couplers and stainless clamps, ensuring a complete and lasting upgrade.

BILLET HOSE ENDS

CRUSH PROOF - LEAK PROOF

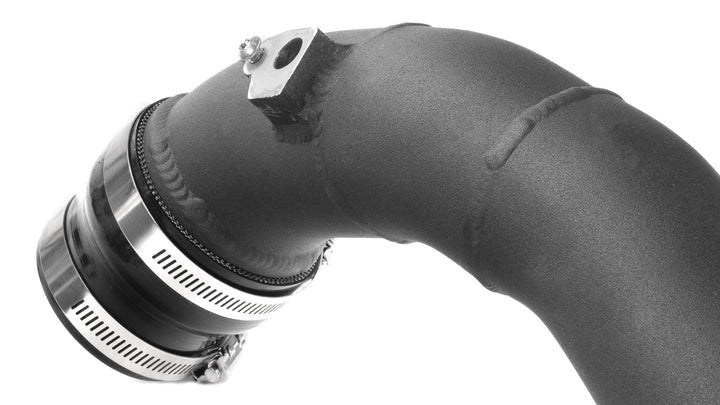

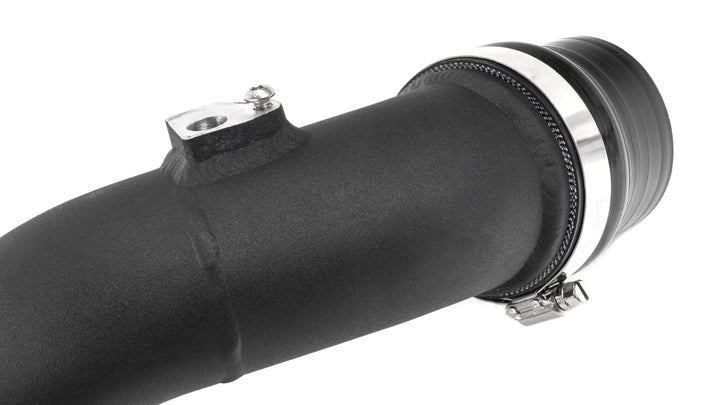

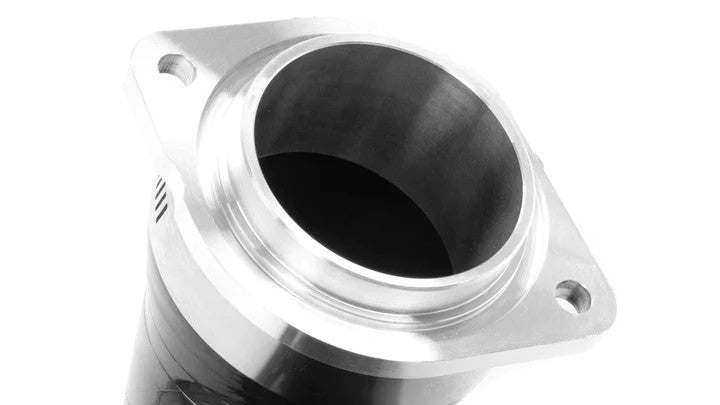

Typical aftermarket charge pipe designs roll a bead into the end of the thin aluminum pipe, which can crush under hose clamps and lead to boost leaks. Our charge pipes feature individual billet thick-wall hose ends TIG welded onto each pipe end for maximum durability. We took it further with machined grip-lock ribbing and radius ends to ensure your boost connections stay secure under the most demanding high-boost builds.

This part also goes by the following cross reference.

Cross Reference Part Number:

Fits These Vehicles 21 applications
A4
Make Model Engine Years
Audi S4 Base 3.0 2018–2024
Audi S4 Premium 3.0 2019–2025
Audi S4 Premium Plus 3.0 2018–2025
Audi S4 Prestige 3.0 2018–2025
A5
Make Model Engine Years
Audi S5 Base 3.0 2018–2025
Audi S5 Premium 3.0 2019–2025
Audi S5 Premium Plus 3.0 2018–2025
Audi S5 Prestige 3.0 2018–2025
Audi S5 Sportback Base 3.0 2019–2025
Audi S5 Sportback Premium 3.0 2020–2025
Audi S5 Sportback Premium Plus 3.0 2018–2025
Audi S5 Sportback Prestige 3.0 2018–2025
Q5
Make Model Engine Years
Audi SQ5 3.0T 3.0 2018–2018
Audi SQ5 Base 3.0 2019–2025
Audi SQ5 Premium 3.0 2019–2025
Audi SQ5 Premium Plus 3.0 2018–2025
Audi SQ5 Prestige 3.0 2018–2025
Audi SQ5 Sportback Base 3.0 2022–2025
Audi SQ5 Sportback Premium 3.0 2021–2025
Audi SQ5 Sportback Premium Plus 3.0 2021–2025
Audi SQ5 Sportback Prestige 3.0 2021–2025

Fitment data last updated: 2026-05-03
