Classic Porsche 911 3.2 Carrera Electronic Throttle Kit
Classic Porsche 911 3.2 Carrera Electronic Throttle Kit
Classic Porsche 911 3.2 Carrera Electronic Throttle Kit

Classic Porsche 911 3.2 Carrera Electronic Throttle Kit

ADAPT MOTORSPORT
Availability:
Direct Ship
Ships directly from our supplier and is subject to availability.
Availability:
Direct Ship
Ships directly from our supplier and is subject to availability.
SKU AMS9050159+AMS9050228
$944.00 - $1,038.00
$944.00
$944.00 - $1,038.00
$944.00
Kit Type: DBW Kit with Small Filter
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 4720 points to redeem on future purchases. Check your points.

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

Our solution for a throttle body upgrade for the Carrera 3.2 intake manifold. This manifold is a common upgrade for the earlier aircooled cars as it is cheap, flows reasonably well and still looks like a factory component. The standard system uses a mechanical throttle body, with idle air bypass and an air flow meter. This results in a busy and cluttered engine bay.

Enter the AMS 3.2 Carrera DBW kit. An increase in airflow, throttle control, tuneability, simplicity and additional features depending on the engine control unit chosen. Increasing the throttle body diameter from 63mm to 74mm diameter.

Using our special adapter plate, with O-ring seals on both sides, and vacuum ports for fuel pressure regulator and other accessories, it is specially tapered to match the throttle body to the original port of the 3.2 intake manifold.

Additionally we provide filter adapter kits, precision machined, bead blasted and clear anodised for aesthetic looks and corrosion protection. Available in two options, a small filter, and large filter option.

Advantages:

  • Greater throttle diameter for higher flow
  • Precise throttle control, and the ability for throttle sensitivity mapping for different conditions with the right ECU
  • Idle engine control, no need for additional idle air control valves and bypass hosing
  • No linkages, a more sensitive pedal, no linkage drag or friction in the bushes, bellcrank, or linkages.
  • Simplifies and tidies up engine bay
  • Additional features available from market leading ecus include, torque control, traction control, cruise control.

Kit Includes:

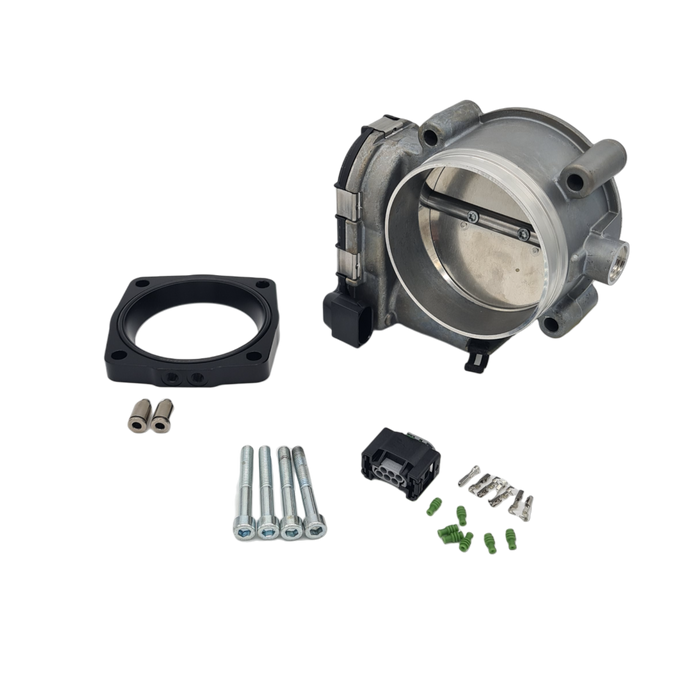

  • Bosch 74mm Throttle Body
  • Fasteners
  • Electrical connector kit
  • Adapter Plate, with O rings and vacuum fittings
  • Vacuum hose

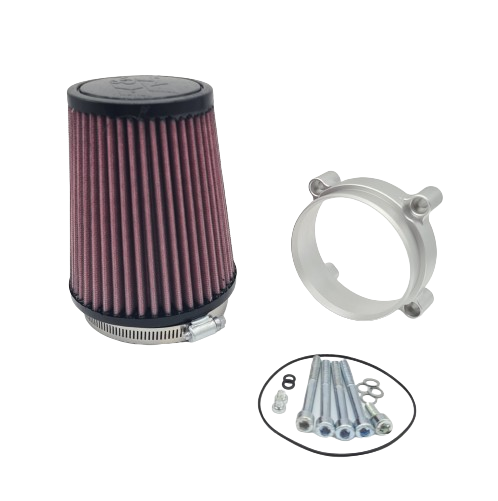

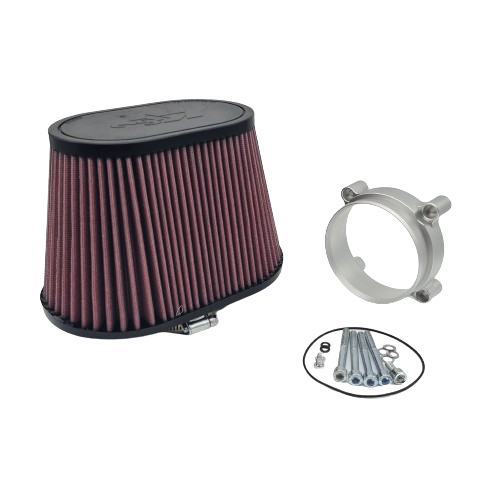

  • Air filter adapter kit with O ring and fasteners
  • K&N Air filter (small or large, please choose the correct option)

And includes a choice of small or large K&N air filter kit. We generally recommend the small filter for street engines less than 3.6L. You can freely make up additional intake piping to relocate the filter to wherever you prefer.

Recommended accessories

  • Adapt Motorsport Fuel system parts - Fuel rails, regulators
  • Adapt Motorsport Electronic Throttle Pedal kit
  • Check out our range of ECUs from Motec and ECUmaster for complimentary engine management duties.

The throttle should be installed and tuned by an experienced and trained person, including setting up the appropriate safety features found in normal performance ECU software.

This part also goes by the following cross reference.

Cross Reference Part Number:

Fitment data is currently being updated for this part. Please contact us with your VIN to confirm compatibility.
