Integrated Engineering PCV Solution Kit for 2.0T FSI Engines
Integrated Engineering PCV Solution Kit for 2.0T FSI Engines
Integrated Engineering PCV Solution Kit for 2.0T FSI Engines

Integrated Engineering PCV Solution Kit for 2.0T FSI Engines

Integrated Engineering
Ships from Supplier
UGC IEBAVC17
$117.99 - $117.99
$117.99
$117.99 - $117.99
$117.99
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 585 points to redeem on future purchases. Check your points.

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

Save your engine from an oily mess, built-up crankcase pressure, rough idle, fuel economy, and boost loss with a quick and simple install that takes less than 20 minutes on average. You will immediately notice a drastic improvement in drivability and power if your valve was leaking previously.



STOCK PRESSURE RELIEF VALVE ISSUES

One of the most common failures on the 2.0T FSI engine is the factory pressure-relief valve. These valves are in place to recirculate crankcase gases into the intake manifold once they open. Although this works fine for a few thousand miles, they begin to leak over time and cause boost to go past the valve into the valve cover. This not only causes an oily mess in the engine bay from crankcase pressure but a rough idle, fuel economy decline and boost loss. With boost pressure far below where it should be, it is common to notice significant power losses and poor drivability.



IE PCV SOLUTION PLAGE

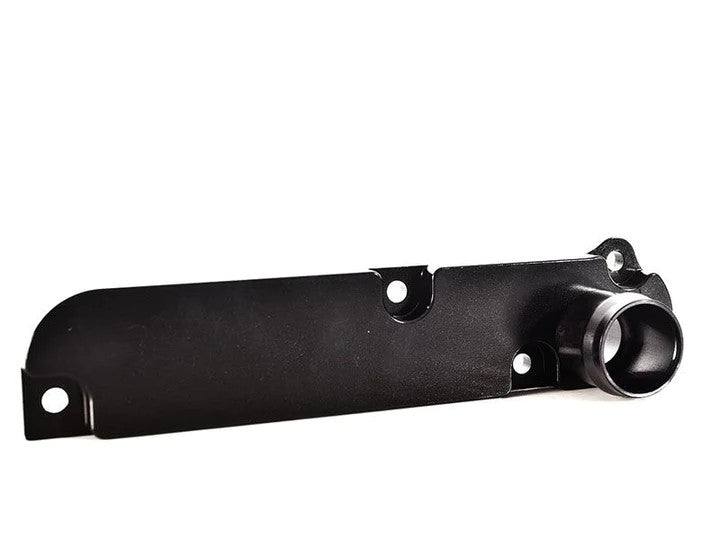

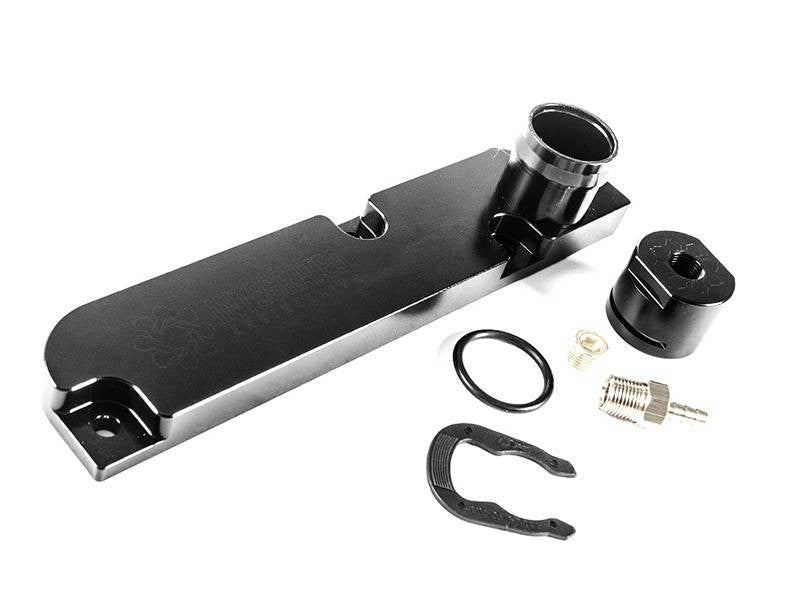

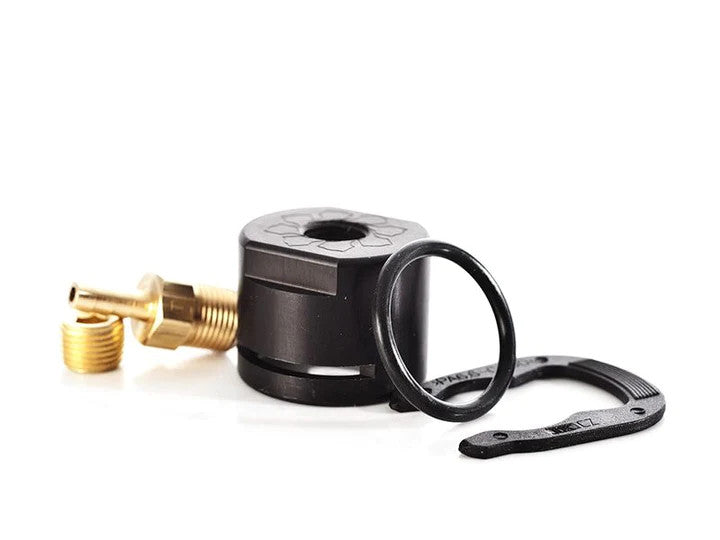

Using our kit, you are able to completely remove the pressure-relief valve and replace it with a billet aluminum plate. This allows the factory breather system to function properly while eliminating the failure-prone relief valve. With the hose between the valve cover and intake manifold completely eliminated, the included boost cap is used to block off the hose connection on the end of the intake manifold. Our billet cap features a tapped hole that can be plugged or used to plumb a boost gauge, compared to competitors products that do not offer a provision for plumbing a boost gauge.



PRODUCT FEATURES

  • Save your engine from a faulty pressure relief valve
  • Direct replacement & quick installation
  • IE boost cap has an optional outlet for a boost gauge
  • Bright black anodized finish
  • In-house CNC machined aluminum

VEHICLE FITMENT

  • Audi - A4 2005-2008 (B7) 2.0T FSI (EA113) engines
  • Audi - A6 2005-2011 (C6) 2.0T FSI (EA113) engines
  • Audi - A6 Allroad 2005-2011 (C6) 2.0T FSI (EA113) engines
  • Audi - TT 2008-2015 (MK2 - 8J) 2.0T FSI (EA113) engines*
  • Audi - TTS 2008-2015 (MK2 - 8J) 2.0T FSI (EA113) engines
  • Audi - A3 2006-2013 (MK2 - 8P) 2.0T FSI (EA113) engines*
  • Audi - S3 2006-2013 (MK2 - 8P) 2.0T FSI (EA113) engines
  • VW - GTI 2006-2009 (MK5) 2.0T FSI (EA113) engines*
  • VW - Golf R 2012-2012 (MK6) 2.0T FSI (EA113) engines
  • VW - Jetta & Jetta GLI 2006-2010 (MK5) 2.0T FSI (EA113) engines*
  • VW - Passat 2006-2010 (B6) 2.0T FSI (EA113) engines*
  • VW - EOS 2006-2015 (1F7) 2.0T FSI (EA113) engines*


*NOTE: IE PCV Solution Kits only work on early model 2.0T EA113 engines. You can verify you have the correct engine if it is in the above chassis and is driven by a timing belt. If your engine is driven by a timing chain, you have an EA888 Gen1/Gen2 TSI engine and is not compatible with this product.

This part also goes by the following cross reference.

Cross Reference Part Number:

Fits These Vehicles 50 applications
A3
Make Model Engine Years
Audi A3 Base 2.0 2006–2013
Audi A3 Cabrio 2.0 2009–2009
Audi A3 Quattro Base 2.0 2006–2013
Audi A3 S Line 2.0 2006–2011
A4
Make Model Engine Years
Audi A4 Avant 1.8 2005–2005
Audi A4 Base 1.8 2005–2005
Audi A4 Base 2.0 2005–2008
Audi A4 Base 3.0 2005–2005
Audi A4 Base 3.2 2006–2008
Audi A4 Cabriolet 1.8 2005–2006
Audi A4 Cabriolet 3.0 2005–2005
Audi A4 Cabriolet 2.0 2007–2008
Audi A4 Elite 3.2 2005–2007
Audi A4 Elite 2.0 2007–2007
Audi A4 Quattro Avant 1.8 2005–2005
Audi A4 Quattro Avant 2.0 2005–2008
Audi A4 Quattro Avant 3.0 2005–2005
Audi A4 Quattro Avant 3.2 2005–2008
Audi A4 Quattro Base 1.8 2005–2005
Audi A4 Quattro Base 2.0 2005–2008
Audi A4 Quattro Base 3.0 2005–2005
Audi A4 Quattro Base 3.2 2005–2008
Audi A4 Quattro Cabriolet 3.0 2005–2006
Audi A4 Quattro Cabriolet 2.0 2007–2008
Audi A4 Quattro Cabriolet 3.2 2007–2008
Audi A4 Quattro Elite 1.8 2005–2005
Audi A4 Quattro Elite 3.2 2005–2008
Audi A4 Quattro Elite 2.0 2006–2008
Audi A4 Quattro S Line 3.2 2005–2006
Audi A4 Quattro S Line 2.0 2008–2008
Audi A4 S Line 3.2 2005–2006
Audi A4 S Line 2.0 2007–2008
TT
Make Model Engine Years
Audi TT Base 2.0 2008–2010
Audi TTS Quattro Base 2.0 2009–2015
Golf
Make Model Engine Years
Volkswagen Golf R Base 2.0 2012–2012
Jetta
Make Model Engine Years
Volkswagen Jetta 2.0T 2.0 2006–2008
Volkswagen Jetta Base 2.0 2009–2010
Volkswagen Jetta GLI 2.0 2006–2008
Volkswagen Jetta SEL 2.0 2009–2009
Volkswagen Jetta Wolfsburg Edition 2.0 2008–2010
Passat
Make Model Engine Years
Volkswagen Passat 2.0T 2.0 2006–2009
Volkswagen Passat 3.6 3.6 2006–2009
Volkswagen Passat Base 2.0 2008–2008
Volkswagen Passat Turbo 2.0 2008–2008
Volkswagen Passat VR6 3.6 2008–2008
Volkswagen Passat Wolfsburg Edition 2.0 2007–2007

Fitment data last updated: 2026-05-03
