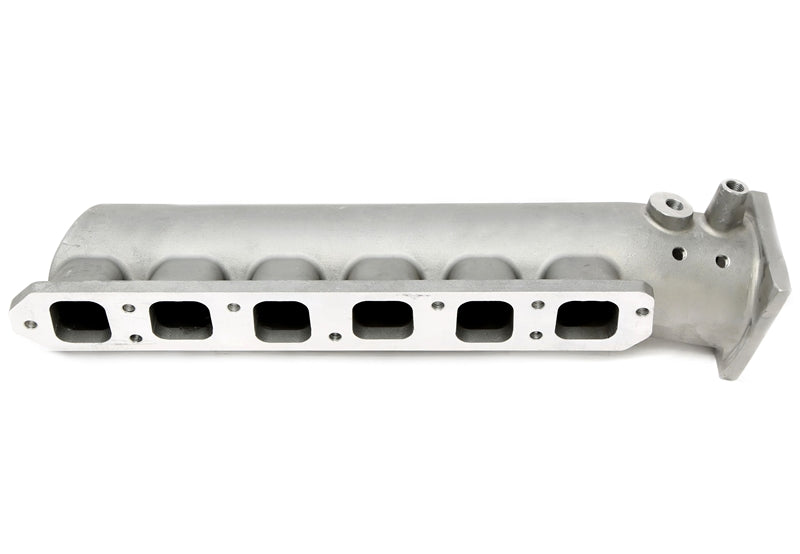

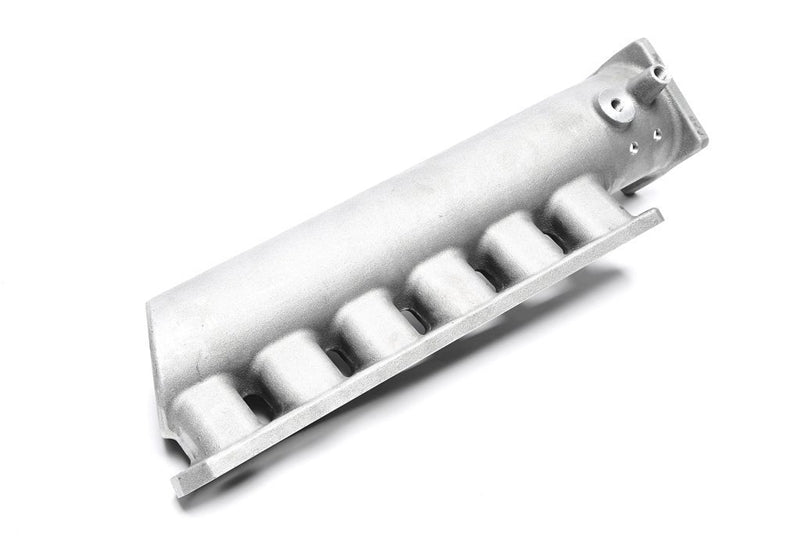

EUROMOTIV Short Runner Intake Manifold – 3.2L VR6

The Short Turbo Intake Manifold is designed for 3.2L V6/R32 engines and turbocharged or supercharged applications. Its compact design is intended to provide improved packaging for forced-induction conversions while optimizing airflow through the intake system.

The manifold replaces the factory intake manifold and features an optimized internal design with revised runner lengths, diameters, and air routing to support improved intake airflow and throttle response.

FEATURES

• Short-style intake manifold designed for R32 / 3.2L V6 applications
• Suitable for turbo and other forced-induction conversions
• Optimized intake runner and airflow design
• 80mm throttle body flange connection
• Throttle body flange is supplied undrilled
• Pressure connections included

APPLICATIONS

• Audi A3/S3 8P – 3.2L V6
• Audi TT 8N – 3.2L V6
• Audi TT 8J – 3.2L V6
• Volkswagen Golf IV R32 1J – 3.2L V6
• Volkswagen Golf V R32 1K – 3.2L V6
• Also suitable for R32 turbo conversions using custom applications

TECHNICAL INFORMATION

Engine: 3.2L V6 / R32
Throttle Body Connection: Ø80mm

This part also goes by the following cross reference.

Cross Reference Part Number: 022133201AN
