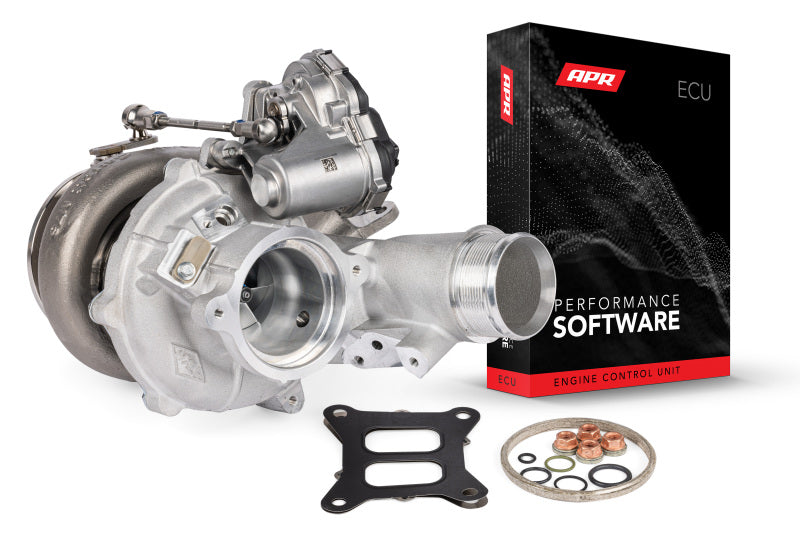

APR Stage 3 PowerMax GT2563S Turbocharger System (2.0T EA888.4)

Our software delivers a smooth, linear torque curve across both configurations and various octane levels, ensuring an exhilarating drive without placing undue stress on engine components.In designing this upgrade, our team meticulously adhered to Garrett's prescribed specifications for turbocharger reliability, including exhaust gas temperature and turbocharger shaft speed limits. Additionally, the software is calibrated to operate within the limits of factory sensors and fueling hardware, delivering a dependable driving experience.APR's calibration experts have also integrated additional safety and protection protocols into the ECU to guard against LSPI, knock, turbo shaft speed, exhaust gas temperature, turbo discharge temperature, exhaust back pressure, and fuel system limits. This ensures that drivers can fully enjoy their vehicle's performance without undue concern for premature component failure. At APR, we enhance the driving experience by delivering performance without compromise!

• Direct replacement Garrett PowerMax GT2563S Turbocharger
• Delivers up to 478-543 HP and 409-435 FT-LBS of torque
• Gains as high as +127-193 AWHP and +96-145 AWFT-LBS of torque over stock over (2022 US Golf R Baseline)
• Free upgrade to APR Stage 3 ECU/TCU from lower stage
• Install hardware kit included
• Plug-and-play with stock hardware
• Power figures achieved on the stock exhaust & fueling with APR Intake & Intercooler
• Does not alter emissions components
• +20% compressor flow and +37% turbine flow compared to the factory turbo
• Application specifically derived Garrett compressor wheel and turbine aero
• Mar-M alloy turbine wheel and stainless steel turbine housing rated for 1050°C
• Fully machined speed sensor port
• Integrated thrust bearing reinforced for application

Vehicle Fitment: Fits 2022-2024 Audi S3/VW Arteon/Golf R

To add an additional layer of protection, use a high performance oil matching the factory weight and minimum factory specs.

This part also goes by the following cross reference.

Cross Reference Part Number: aprT4100010
