APR 17-20 Audi RS3 2.5 TFSI EVO (RS3) Intercooler Kit

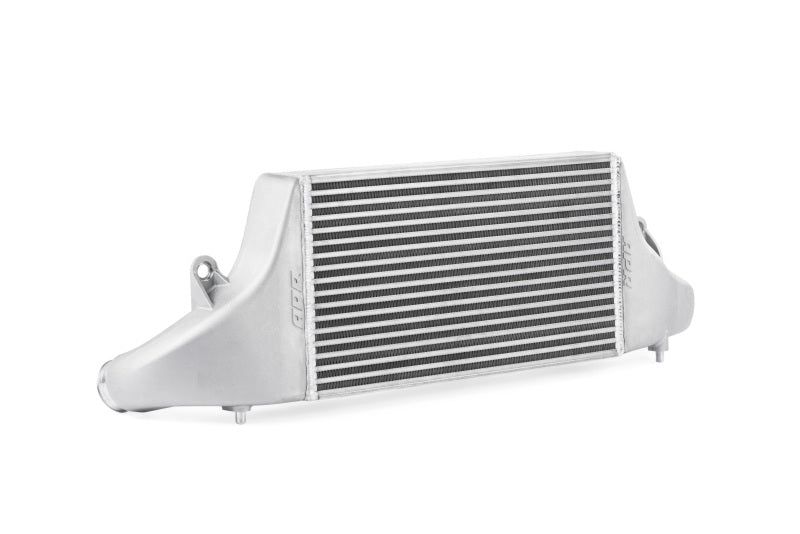

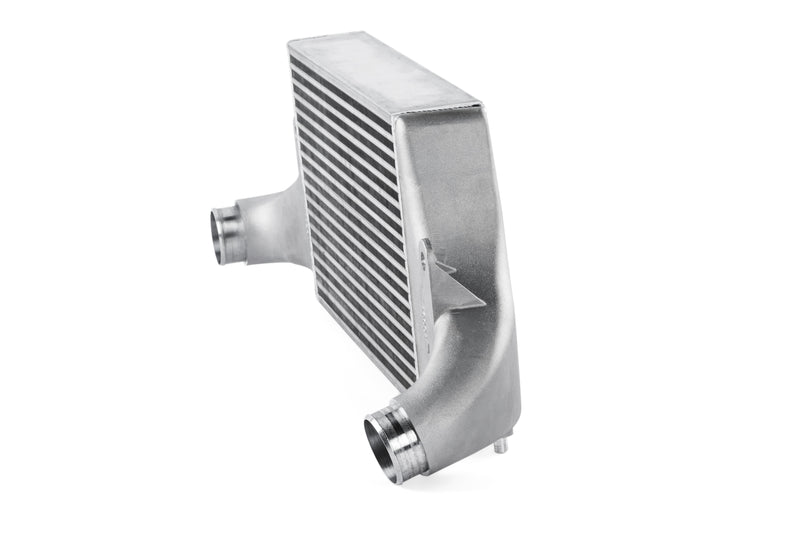

The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.

• Dramatically lowers intake air temp (IAT)
• Increases HP while minimizing power-robbing heat soak!
• Dynoed 26 AWHP over to the factory system (STG 1 93)!
• Effective cooling for more than double factory horsepower levels!
• Massive frontal surface area and core volume
• 6.38" x 25.33" x 3.16" - 161.6 in² front. & 510.67 in³ volume - OEM
• 11.7" x 22.00" x 3.50" - 257.4 in² front. & 900.90 in³ volume - APR
• Highly effective core design

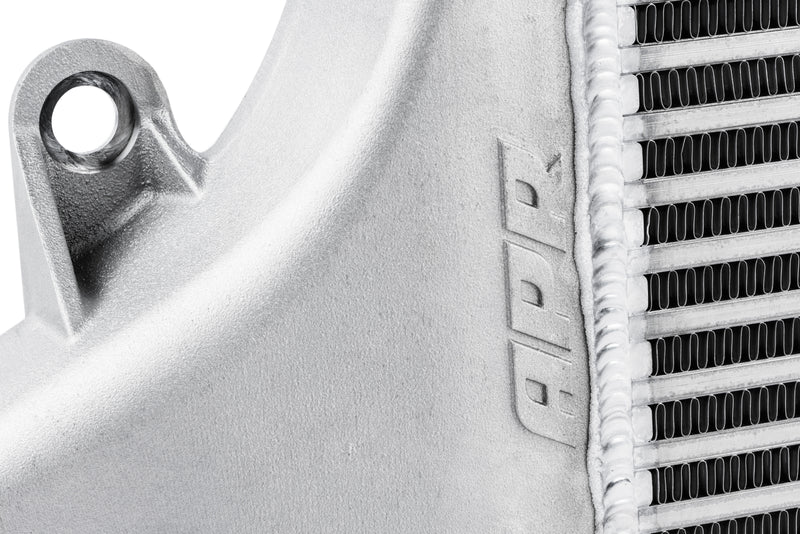

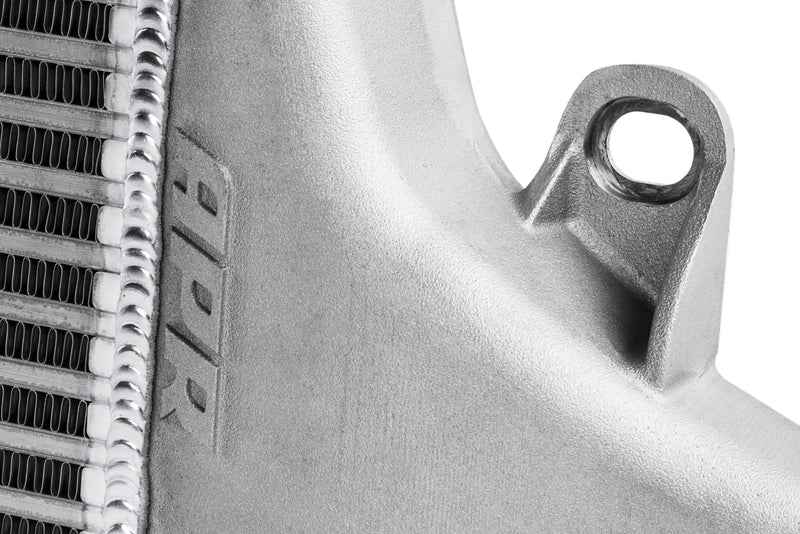

• Bar-and-plate core with staggered and louvered fins.
• Rigorous testing determined core style, fin density, and size.
• Low pressure drop + highly effective cooling = high performance!

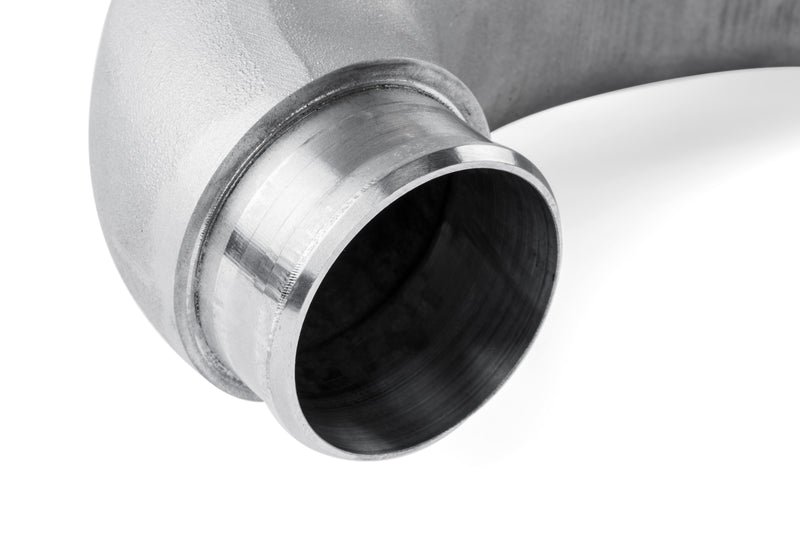

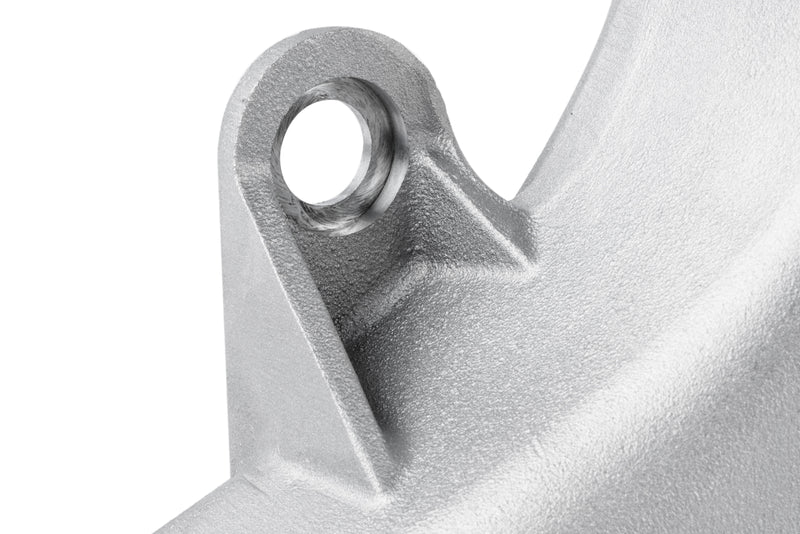

• Smooth cast end tanks
• Engineered for low turbulence/restriction and maximum flow.
• Organically shaped to promote airflow across entire core.
• Pressure tested to prevent power robbing boost leaks.
• Easy to install
• Simple plug-and-play design with no trimming or drilling necessary!
• Designed by engineers with lasers
• With the best equipment and smartest engineers, it just works!

Vehicle Fitment: Fits Audi RS3 17-20, 22-24

Please note, this system will not directly fit the ROW vehicles with the shorter crash bar. A US spec setup is needed. Crash Bar: 8V5807190D, Foam: 8V5807550B, ACC Adapter: 8V0907574H.

This part also goes by the following cross reference.

Cross Reference Part Number: aprIC100024
