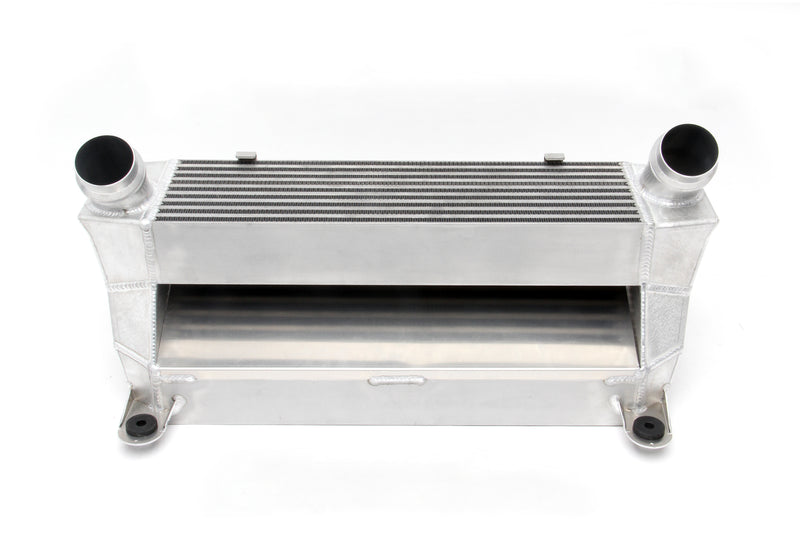

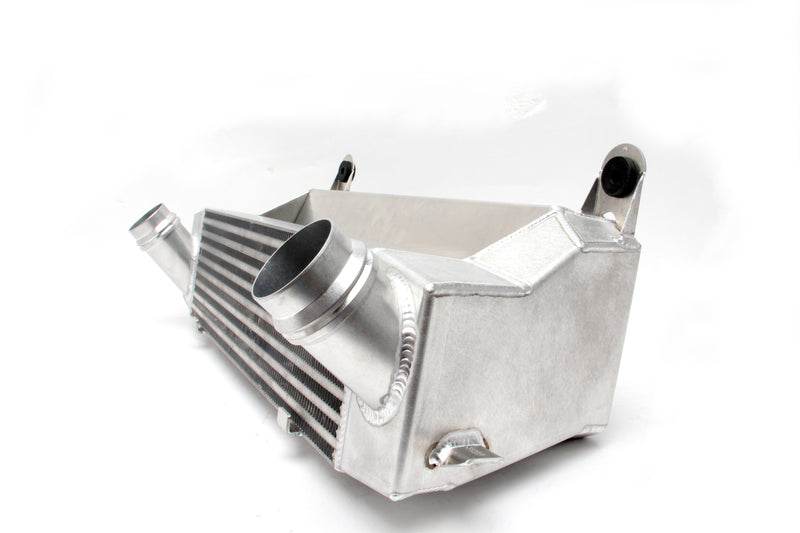

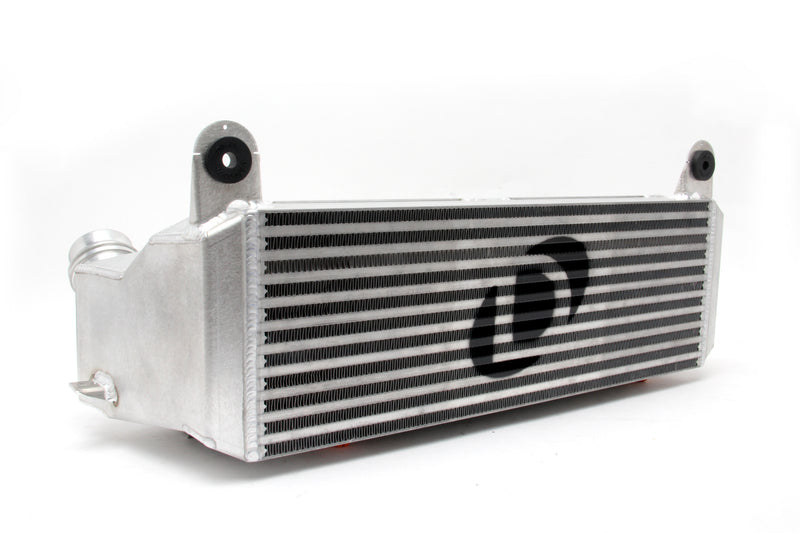

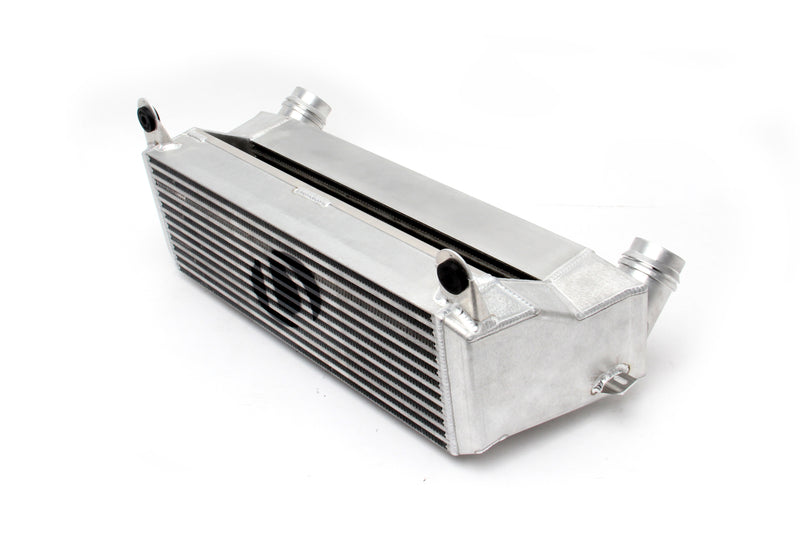

Dinan 12-16 BMW 2/3/4-Series (F22/F30/F31/F32/F36) High Performance Air-to-Air Dual Core Intercooler

The system has been engineered to be as direct a replacement as possible to the stock unit, requiring only minor modifications for a clean, factory-like installation. The increased thermal efficiency provided by the Dinan dual core intercooler will also enhance turbocharger reliability in addition to overall power. On a stock vehicle, power gains can be had from 4000 RPM and beyond (when the car is in boost). In order to achieve the best performance, the intercooler should be paired eith engine tuning as it can provide additional optimization of the intercooler. In particular, with Dinan flash software the power band is extended to be more robust and powerful from 5000 RPM to redline whereas without tuning the bulk of the gains are from 6000 RPM to redline.

• Max gains (N55 engine) of 15 HP and 13 lb-ft of torque @ 6250 RPM.
• Max gains (N20/N26 engine) of 6 HP and 5 lb-ft of torque @ 5500 RPM.
• Face area  240% larger than the stock intercooler setup for maximum cooling efficiency to deter heat soak.

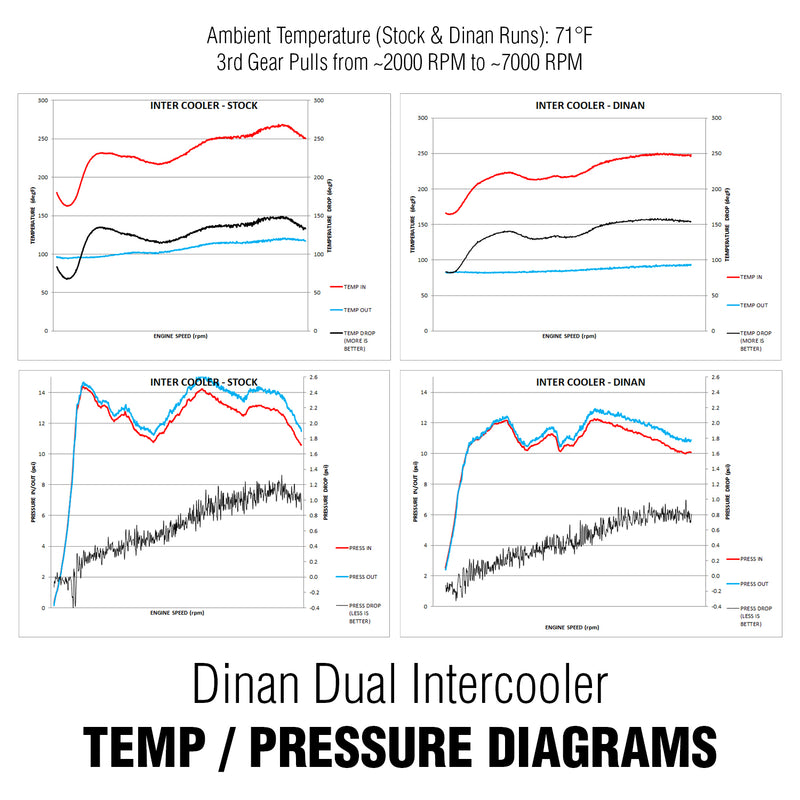

• Charge Air Pressure drop: 0.80 PSI (25% improvement over stock).
• Charge Air Temperature drop: 155º F (11% improvement over stock).
• Charge Air Temperature / Ambient Temperature Delta: 18º F @ 6250 RPM (60% improvement over stock).
• 50 State Emissions Legal: CARB EO D-176-51

Not compatible with vehicles equipped with Active Cruise Control or the F23 / F33 chassis' (convertibles).

This part also goes by the following cross reference.

Cross Reference Part Number: dnnD330-0021
