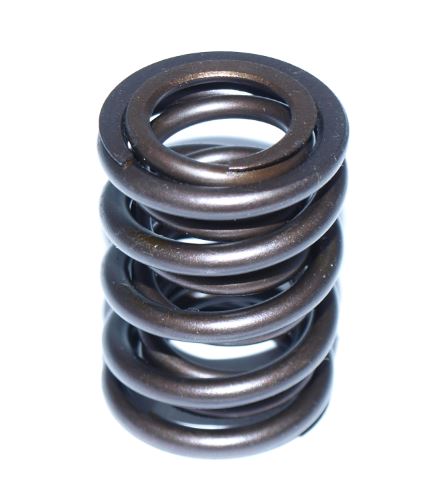

Schrick Valve spring 022702113 (022702113)

Schrick Valve spring 022702113 (022702113)

Schrick
Disponibilidad:
en stock, listo para ser enviado

Ships in 5–8 business days

SKU 022702113
$140.99 - $140.99
$140.99
$140.99 - $140.99
$140.99
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 700 points to redeem on future purchases. Check your points.

Technical Specifications

Outer diameter Da (mm) 30.7
Minimum working length L2 (mm) 23
Valve lift S (mm) 13 mm
Wire thickness d (mm) 3.9/3.1
Maximum installation length L1 (mm) 36
Minimum working length L2 (mm) 23
Force F1 at L1 (N) 309
Force F2 at L2 (N) 1130
For max valve lift: 13.0 mm
F2 in [N]: 1130 N
F1 in [N] : 309 N

This part also goes by the following cross reference.

Cross Reference Part Number:
