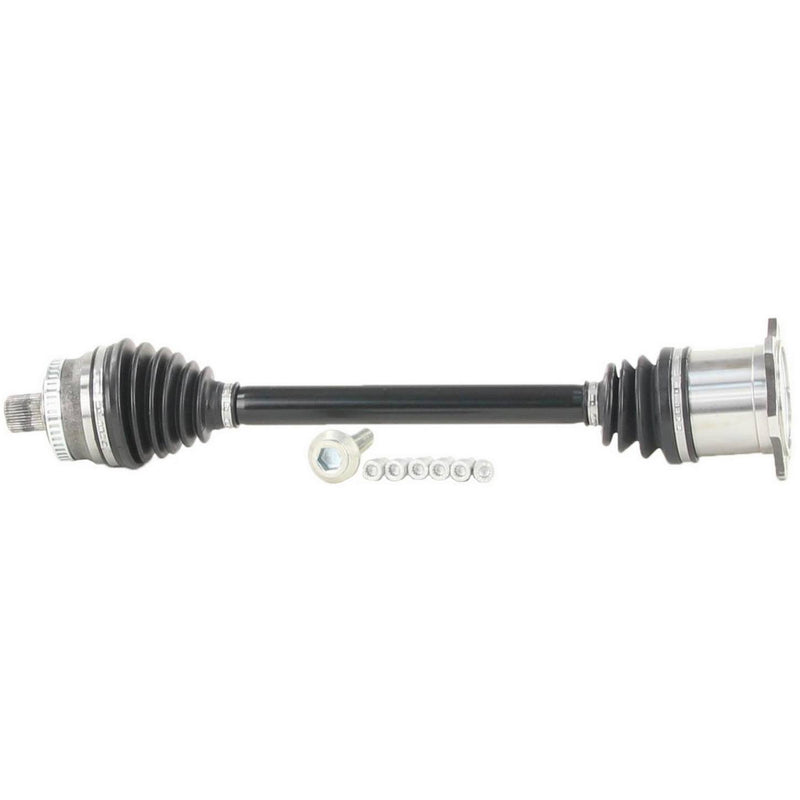

Audi CV Axle Shaft – SurTrack AD-8187

Audi CV Axle Shaft – SurTrack AD-8187

Stock: Direct Ship ℹ️ This item ships directly from our supplier and is subject to availability.

SKU AD-8187
$173.99 - $173.99
$173.99
$173.99 - $173.99
$173.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

Abs Ring Tooth Count 45
Abs Ring Type Window
Abs Tone Ring Included Yes
Axle Bolt Hex Size (mm) 17
Axle Bolt Length (mm) 85
Axle Bolt Thread Size M16*1.5
Axle Nut Head Type N/A
Axle Nut Height (in) N/A
Axle Nut Height (mm) N/A
Axle Nut Hex Size (in) N/A
Axle Nut Hex Size (mm) N/A
Axle Nut Included No
Axle Nut Length (in) N/A
Axle Nut Length (mm) N/A
Axle Nut Locking Type N/A
Axle Nut Thread Size N/A
Boot Material Neoprene
Inboard Bolt Head Size (in) 7/16
Inboard Bolt Head Size (mm) 11.5
Inboard Bolt Length (in) 1 3/16
Inboard Bolt Length (mm) 30
Inboard Bolt Thread Size M10*1.5
Inboard Joint Type Flange
Inboard Shaft Connection Style Bolt-On
New Or Remanufactured New
Number Of Bolt Holes N/A
Number Of Inboard Joint Bolt Holes 6
Number Of Inboard Shaft Bolts 6
Number Of Inboard Splines N/A
Number Of Outboard Joint Bolt Holes N/A
Number Of Outboard Shaft Bolts N/A
Number Of Outboard Splines 38
Outboard Bolt Head Size (in) N/A
Outboard Bolt Head Size (mm) N/A
Outboard Bolt Head Type N/A
Outboard Bolt Length (in) N/A
Outboard Bolt Length (mm) N/A
Outboard Joint Bolt Thread Size N/A
Outboard Joint Type Audi Style Spline Bolt
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 22.78
Overall Compressed Length (mm) 578.5
Overall Extended Length (in) 24.96
Overall Extended Length (mm) 634

This part also goes by the following cross reference.

Cross Reference Part Number:
