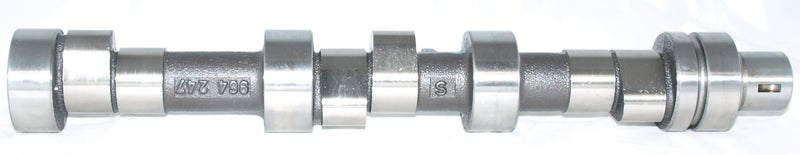

Schrick 911° Intake Camshaft - Porsche 320° (964) (0005L1200-01)

Schrick 911° Intake Camshaft - Porsche 320° (964) (0005L1200-01)

Schrick
Availability:
in stock, ready to be shipped

Ships in 5–8 business days

SKU 0005L1200-01
$1,621.99 - $1,621.99
$1,621.99
$1,621.99 - $1,621.99
$1,621.99
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 8105 points to redeem on future purchases. Check your points.

Schrick 320° camshaft for the PORSCHE 911 6 Cyl., 2 Valve, air cooled engine. Machined by AVL Schrick in Remscheid, Germany, this profile raises valve lift to 13.2 mm for greater cylinder filling and top-end power over the factory camshaft.

Key Features & Benefits

  • 320° duration — 283° measured at 1 mm lift
  • 13.2 mm valve lift (8.8 mm cam lobe lift)
  • 0.2 mm valve clearance — solid lash, mechanical adjustment
  • Made by Schrick, OE supplier and motorsport camshaft specialist

Important Fitment Notes

Innengewinde, Lager Ø 49mm, Porsche rocker arm Nr, 96210530800 use.

Technical Specifications

Engine 911 6 Cyl., 2 Valve, air cooled
Duration intake 320°
Duration intake @ 1 mm 283°
Duration exhaust 308°
Duration exhaust @ 1 mm 271°
Intake peak timing 108°
Exhaust peak timing 108°
Cam lobe lift intake 8.8 mm
Cam lobe lift exhaust 8.8 mm
Valve lift without valve clearance intake 13.2 mm
Valve lift without valve clearance 13.2 mm
Valve clearance intake 0.2 mm
Valve clearance exhaust 0.2 mm
Intake opens 52°
Intake closes 88°
Exhaust opens 82°
Exhaust closes 46°
Intake opens @ 1 mm (EM) 1 -33°
Intake closes @ 1 mm (EM) 1 249°
Exhaust opens @ 1 mm (AM) 1 -244°
Exhaust closes @ 1 mm (AM) 1 28°
Valve lift @ TDC intake (EM) 1 5 mm
Valve lift @ TDC exhaust (AM) 1 4.3 mm
Additional engine information : , 964 mechanical valve train

Installation Notes

Professional installation recommended. Camshaft timing must be set to the specification above; refer to the Schrick data sheet for the full timing diagram.

Download the Schrick data sheet (PDF) — part 0005L1200-01.
