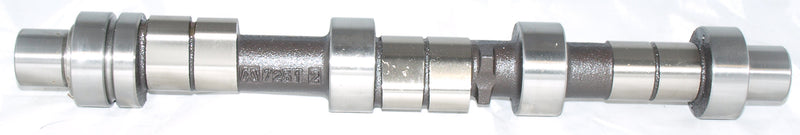

Schrick 911° Intake Camshaft - Porsche 288° (964) (0005R1880-02)

Name: Schrick 911° Intake Camshaft - Porsche 288° (964) (0005R1880-02)
Brand: Schrick
SKU: 0005R1880-02
Price: 1567.99 USD
Availability: InStock

Availability:

5+ in stock, ready to be shipped

Ships in 5–7 business days

SKU 0005R1880-02

$1,567.99 - $1,567.99

$1,567.99

$1,567.99 - $1,567.99

$1,567.99

See all financing options

CALIFORNIA WARNING

Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information see www.P65Warnings.ca.gov/motor-vehicle-parts.

Description

Schrick 288° camshaft for the PORSCHE 911 6 Cyl., 2 Valve, air cooled engine. Machined by AVL Schrick in Remscheid, Germany, this profile raises valve lift to 13.2 mm for greater cylinder filling and top-end power over the factory camshaft.

Key Features & Benefits

288° duration
13.2 mm valve lift (8.8 mm cam lobe lift)
0.2 mm valve clearance — solid lash, mechanical adjustment
Made by Schrick, OE supplier and motorsport camshaft specialist

Important Fitment Notes

Innengewinde, Lager Ø 49mm (Carrera 2 and Carrera 4).

Technical Specifications

Engine	911 6 Cyl., 2 Valve, air cooled
Duration intake	288°
Duration exhaust	280°
Intake peak timing	114°
Exhaust peak timing	114°
Cam lobe lift intake	8.8 mm
Cam lobe lift exhaust	8.8 mm
Valve lift without valve clearance intake	13.2 mm
Valve lift without valve clearance	13.2 mm
Valve clearance intake	0.2 mm
Valve clearance exhaust	0.2 mm
Intake opens	30°
Intake closes	78°
Exhaust opens	74°
Exhaust closes	26°
Valve lift @ TDC intake (EM) 1	2.1 mm
Valve lift @ TDC exhaust (AM) 1	1.7 mm
Additional engine information :	, 964 mechanical valve train

Installation Notes

Professional installation recommended. Camshaft timing must be set to the specification above; refer to the Schrick data sheet for the full timing diagram.

Download the Schrick data sheet (PDF) — part 0005R1880-02.

Specifications

This part also goes by the following cross reference.

Cross Reference Part Number:

Fitment

Reviews

About this Camshaft

The Schrick 0005R1880-02 camshaft opens and closes the engine's valves in time with the pistons. The shape of its lobes sets how far and for how long each valve opens, which shapes the engine's power delivery.

Frequently asked questions

What does a camshaft do?

As it turns, its lobes push the valves open, directly or through followers or rocker arms, then let the springs close them. Lift and duration determine how much air the engine can breathe.

What are the signs of a worn camshaft?

A ticking or tapping from the top of the engine, loss of power, misfires, and visibly worn or pitted lobes when inspected. Metal particles in the oil can also point to cam or follower wear.

Will a performance camshaft need other upgrades?

Often. More aggressive camshafts may need stronger valve springs, adjusted valve timing and an engine tune to run properly. Check the maker's requirements in the product details.

Can I install a camshaft myself?

It requires removing the timing drive, locking the engine at the correct timing with engine-specific tools and setting the timing precisely. Mistakes can damage the valves and pistons, so it is best done by an experienced technician.

How do I make sure this camshaft fits my car?

Compare the part numbers listed on this page with the number on your old part or in your vehicle's parts catalog, and check the fitment information. If you are unsure, contact us with your VIN before ordering.
