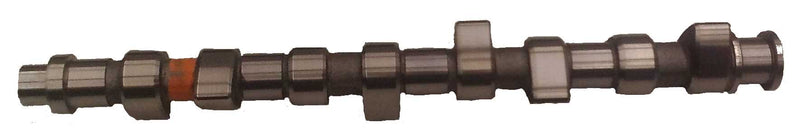

Schrick 320° Intake Camshaft - VW EA 827 Conversion to mechanical (001401200-01)

Schrick 320° Intake Camshaft - VW EA 827 Conversion to mechanical (001401200-01)

Schrick
Availability:
Out of stock
SKU 001401200-01
Sold out
$1,027.99 - $1,027.99
$1,027.99
$1,027.99 - $1,027.99
$1,027.99
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 5135 points to redeem on future purchases. Check your points.

Schrick 320° camshaft for the AUDI , VW EA 827 4 cyl., 2 valve, 1,5-2,0L engine. Machined by AVL Schrick in Remscheid, Germany, this profile raises valve lift to 12.9 mm for greater cylinder filling and top-end power over the factory camshaft.

Key Features & Benefits

  • 320° duration — 293° measured at 1 mm lift
  • 12.9 mm valve lift (12.9 mm cam lobe lift)
  • 0.25 mm valve clearance — solid lash, mechanical adjustment
  • Made by Schrick, OE supplier and motorsport camshaft specialist

Important Fitment Notes

Grundkreis Ø 34 for umgebaute hydraulic Zylinderköpfe, not for Stössel with obenliegender Einstellscheibe, (Lauffläche Ø35 erforderlich).

Technical Specifications

Engine EA 827 4 cyl., 2 valve, 1.5-2.0L
Duration intake 320°
Duration intake @ 1 mm 293°
Duration exhaust 320°
Duration exhaust @ 1 mm 293°
Intake peak timing 102°
Exhaust peak timing 102°
Cam lobe lift intake 12.9 mm
Cam lobe lift exhaust 12.9 mm
Valve lift without valve clearance intake 12.9 mm
Valve lift without valve clearance 12.9 mm
Valve clearance intake 0.25 mm
Valve clearance exhaust 0.3 mm
Intake opens 58°
Intake closes 82°
Exhaust opens 82°
Exhaust closes 58°
Intake opens @ 1 mm (EM) 1 -44°
Intake closes @ 1 mm (EM) 1 248°
Exhaust opens @ 1 mm (AM) 1 -248°
Exhaust closes @ 1 mm (AM) 1 44°
Valve lift @ TDC intake (EM) 1 6.1 mm
Valve lift @ TDC exhaust (AM) 1 6.1 mm

Installation Notes

Professional installation recommended. Camshaft timing must be set to the specification above; refer to the Schrick data sheet for the full timing diagram.

Download the Schrick data sheet (PDF) — part 001401200-01.
