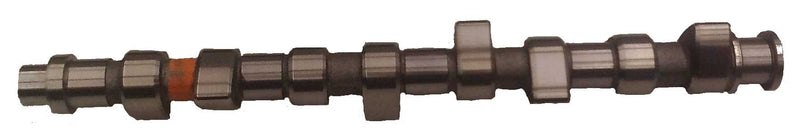

Schrick 288° Intake Camshaft - VW EA 827 Golf MK 1 mechanical (001401880-02)

Schrick 288° Intake Camshaft - VW EA 827 Golf MK 1 mechanical (001401880-02)

Schrick
Availability:
in stock, ready to be shipped

Ships in 5–7 business days

SKU 001401880-02
$1,027.99 - $1,027.99
$1,027.99
$1,027.99 - $1,027.99
$1,027.99
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 5135 points to redeem on future purchases. Check your points.

Schrick 288° camshaft for the AUDI , VW EA 827 4 cyl., 2 valve, 1,5-2,0L engine. Machined by AVL Schrick in Remscheid, Germany, this profile raises valve lift to 11.7 mm for greater cylinder filling and top-end power over the factory camshaft.

Key Features & Benefits

  • 288° duration — 261° measured at 1 mm lift
  • 11.7 mm valve lift (11.7 mm cam lobe lift)
  • 0.35 mm valve clearance — solid lash, mechanical adjustment
  • Made by Schrick, OE supplier and motorsport camshaft specialist

Important Fitment Notes

Nockenfreigängigkeit ensure, only for Golf I with mechanicalen Stösseln,.

Technical Specifications

Engine EA 827 4 cyl., 2 valve, 1.5-2.0L
Duration intake 288°
Duration intake @ 1 mm 261°
Duration exhaust 288°
Duration exhaust @ 1 mm 261°
Intake peak timing 108°
Exhaust peak timing 108°
Cam lobe lift intake 11.7 mm
Cam lobe lift exhaust 11.7 mm
Valve lift without valve clearance intake 11.7 mm
Valve lift without valve clearance 11.7 mm
Valve clearance intake 0.35 mm
Valve clearance exhaust 0.45 mm
Intake opens 36°
Intake closes 72°
Exhaust opens 72°
Exhaust closes 36°
Intake opens @ 1 mm (EM) 1 -22°
Intake closes @ 1 mm (EM) 1 238°
Exhaust opens @ 1 mm (AM) 1 -238°
Exhaust closes @ 1 mm (AM) 1 22°
Valve lift @ TDC intake (EM) 1 3.4 mm
Valve lift @ TDC exhaust (AM) 1 3.4 mm

Installation Notes

Professional installation recommended. Camshaft timing must be set to the specification above; refer to the Schrick data sheet for the full timing diagram.

Download the Schrick data sheet (PDF) — part 001401880-02.

This part also goes by the following cross reference.

Cross Reference Part Number:
