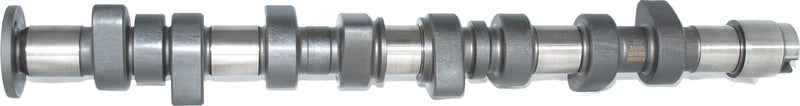

Schrick 288° Intake Camshaft - VW EA 111 (024401881-00)

Schrick 288° Intake Camshaft - VW EA 111 (024401881-00)

Schrick
Availability:
Low stock

Ships in 5–8 business days

SKU 024401881-00
$918.99 - $918.99
$918.99
$918.99 - $918.99
$918.99
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 4590 points to redeem on future purchases. Check your points.

Schrick 288°° camshaft for the VW EA 111 4 cyl., 2 valve engine. Machined by AVL Schrick in Remscheid, Germany, this profile raises valve lift to 10.01 mm for greater cylinder filling and top-end power over the factory camshaft.

Key Features & Benefits

  • 288°° duration — 249°° measured at 1 mm lift
  • 10.01 mm valve lift (10.01 mm cam lobe lift)
  • Hydr lash
  • Made by Schrick, OE supplier and motorsport camshaft specialist

Technical Specifications

Engine EA 111 4 cyl., 2 valve
Duration intake 288°°
Duration intake @ 1 mm 249°°
Duration exhaust 284°°
Duration exhaust @ 1 mm 245°°
Intake peak timing 108°°
Exhaust peak timing 108°°
Cam lobe lift intake 10.01 mm
Cam lobe lift exhaust 9.81mm
Valve lift without valve clearance intake 10.01 mm
Valve lift without valve clearance 9.81mm
Valve clearance intake Hydr
Valve clearance exhaust Hydr
Intake opens -36°°
Intake closes 252°°
Exhaust opens -250°°
Exhaust closes 34°°
Intake opens @ 1 mm (EM) 1 -16°°
Intake closes @ 1 mm (EM) 1 233°°
Exhaust opens @ 1 mm (AM) 1 -230°°
Exhaust closes @ 1 mm (AM) 1 15°°
Valve lift @ TDC intake (EM) 1 2.79mm
Valve lift @ TDC exhaust (AM) 1 2.63mm

Installation Notes

Professional installation recommended. Camshaft timing must be set to the specification above; refer to the Schrick data sheet for the full timing diagram.

Download the Schrick data sheet (PDF) — part 024401881-00.
