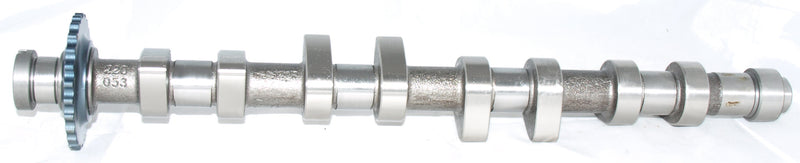

Schrick 284° Exhaust Camshaft - VW 16v Conversion to mechanical (0220A1840-03)

Schrick 284° Exhaust Camshaft - VW 16v Conversion to mechanical (0220A1840-03)

Schrick
Availability:
Low stock

Ships in 5–8 business days

SKU 0220A1840-03
$1,187.99 - $1,187.99
$1,187.99
$1,187.99 - $1,187.99
$1,187.99
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 5935 points to redeem on future purchases. Check your points.

Schrick 284° camshaft for the VW 16v 4 cyl., 4 valve, 1.8-2.0 engine. Machined by AVL Schrick in Remscheid, Germany.

Key Features & Benefits

  • 284° duration — 251° measured at 1 mm lift
  • 0.3 mm valve clearance — solid lash, mechanical adjustment
  • Made by Schrick, OE supplier and motorsport camshaft specialist

Technical Specifications

Engine 16v 4 cyl., 4 valve, 1.8-2.0
Duration exhaust 284°
Duration exhaust @ 1 mm 251°
Exhaust peak timing 108°
Cam lobe lift exhaust 11.6 mm
Valve lift without valve clearance 11.6 mm
Valve clearance exhaust 0.3 mm
Intake opens 0°
Exhaust opens 70°
Exhaust closes 34°
Exhaust opens @ 1 mm (AM) 1 -234°
Exhaust closes @ 1 mm (AM) 1 18°
Valve lift @ TDC intake (EM) 1 3.1 mm

Installation Notes

Professional installation recommended. Camshaft timing must be set to the specification above; refer to the Schrick data sheet for the full timing diagram.

Download the Schrick data sheet (PDF) — part 0220A1840-03.

This part also goes by the following cross reference.

Cross Reference Part Number:
