Schrick 268° Intake Camshaft - VW EA 827 G60 (001401681-02)

Schrick 268° Intake Camshaft - VW EA 827 G60 (001401681-02)

Schrick
Availability:
in stock, ready to be shipped

Ships in 5–7 business days

SKU 001401681-02
$918.99 - $918.99
$918.99
$918.99 - $918.99
$918.99
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 4590 points to redeem on future purchases. Check your points.

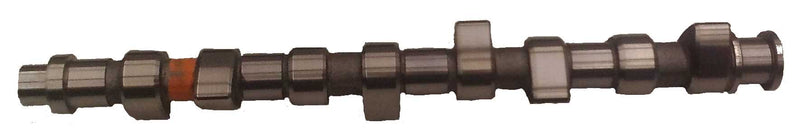

Schrick 268° camshaft for the AUDI , VW EA 827 4 cyl., 2 valve, 1,5-2,0L engine. Machined by AVL Schrick in Remscheid, Germany, this profile raises valve lift to 11.2 mm for greater cylinder filling and top-end power over the factory camshaft.

Key Features & Benefits

  • 268° duration — 231° measured at 1 mm lift
  • 11.2 mm valve lift (11.2 mm cam lobe lift)
  • Hydro lash
  • Made by Schrick, OE supplier and motorsport camshaft specialist

Important Fitment Notes

Nur for G60.

Technical Specifications

Engine EA 827 4 cyl., 2 valve, 1.5-2.0L
Duration intake 268°
Duration intake @ 1 mm 231°
Duration exhaust 276°
Duration exhaust @ 1 mm 238°
Intake peak timing 112°
Exhaust peak timing 112°
Cam lobe lift intake 11.2 mm
Cam lobe lift exhaust 11.5 mm
Valve lift without valve clearance intake 11.2 mm
Valve lift without valve clearance 11.5 mm
Valve clearance intake hydro
Valve clearance exhaust hydro
Intake opens 22°
Intake closes 66°
Exhaust opens 70°
Exhaust closes 26°
Intake opens @ 1 mm (EM) 1 -3°
Intake closes @ 1 mm (EM) 1 228°
Exhaust opens @ 1 mm (AM) 1 -231°
Exhaust closes @ 1 mm (AM) 1 8°
Valve lift @ TDC intake (EM) 1 1.3 mm
Valve lift @ TDC exhaust (AM) 1 1.8 mm
Additional engine information : , G60

Installation Notes

Professional installation recommended. Camshaft timing must be set to the specification above; refer to the Schrick data sheet for the full timing diagram.

Download the Schrick data sheet (PDF) — part 001401681-02.

This part also goes by the following cross reference.

Cross Reference Part Number:
