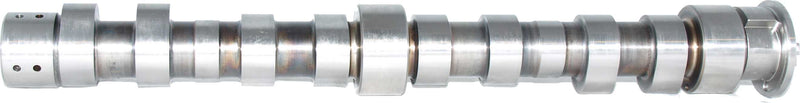

Schrick 256° Intake Camshaft - VW 16V (0350E1561-V0)

Schrick 256° Intake Camshaft - VW 16V (0350E1561-V0)

Schrick
Availability:
Low stock

Ships in 5–8 business days

SKU 0350E1561-V0
$1,078.99 - $1,078.99
$1,078.99
$1,078.99 - $1,078.99
$1,078.99
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 5390 points to redeem on future purchases. Check your points.

Schrick 256° camshaft for the VW 16V 4 cyl., 4valve 1,4-1,6 engine. Machined by AVL Schrick in Remscheid, Germany, this profile raises valve lift to 9.15 mm for greater cylinder filling and top-end power over the factory camshaft.

Key Features & Benefits

  • 256° duration
  • 9.15 mm valve lift (4.8 mm cam lobe lift)
  • Hydraulic lash
  • Made by Schrick, OE supplier and motorsport camshaft specialist

Important Fitment Notes

Für engineen with verstellbarer intakenockenwelle.

Technical Specifications

Engine 16V 4 cyl., 4valve 1.4-1.6
Duration intake 256°
Intake peak timing 127°
Cam lobe lift intake 4.8 mm
Valve lift without valve clearance intake 9.15 mm
Valve clearance intake hydraulic
Intake opens 1°
Intake closes 73°
Valve lift @ TDC intake (EM) 1 -0.1 mm
Additional engine information : , With camshaft adjustment Polo GTI (red valve cover)

Installation Notes

Professional installation recommended. Camshaft timing must be set to the specification above; refer to the Schrick data sheet for the full timing diagram.

Download the Schrick data sheet (PDF) — part 0350E1561-V0.
