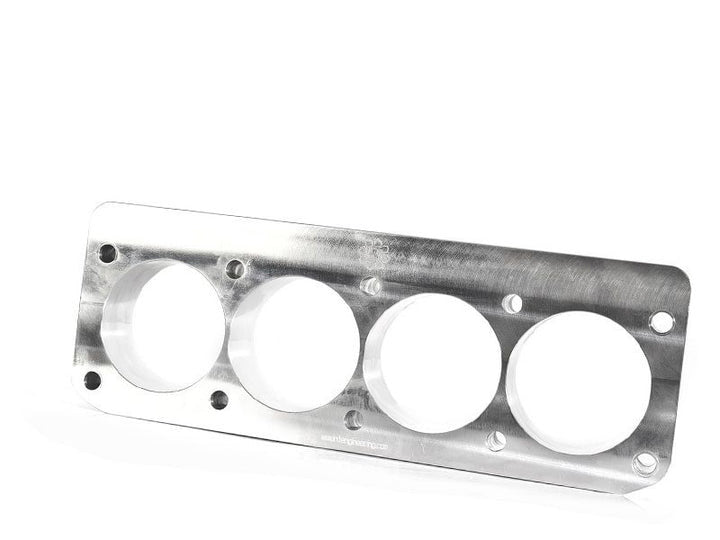

Integrated Engineering Torque Plate for 4 Cylinder VW/Audi Vehicles

Integrated Engineering Torque Plate for 4 Cylinder VW/Audi Vehicles

Integrated Engineering
Ships from Supplier
SKU IETLVA3
$483.99 - $483.99
$483.99
$483.99 - $483.99
$483.99
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 2415 points to redeem on future purchases. Check your points.

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

MACHINE YOUR BLOCK PROPERLY

Prevent early engine failure, worn piston rings, oil blow-by, compression loss, and false engine measurements when installing aftermarket over-bore forged pistons into your VW/Audi 4 cylinder. Bore, hone, and assemble your performance short block build with confidence using an IE Torque Plate!

BORE & HONE WITH A TORQUE PLATE

Machine work is required to bore and hone the engine block when installing overbore pistons or stroker kits into VW/Audi engines. It is very important to have the proper piston and bore clearances within spec on aftermarket forged piston alloys to ensure long and reliable operation and compression. Often times, boring and honing the block will measure within specified clearances without the cylinder head bolted on. However, once the cylinder head is bolted down the entire block is torqued into a new shape pulling your perfect round cylinders into an oval changing your measured clearances. This can lead to early piston ring failure, compression loss, increased piston and bore wear, and blow-by issues.

TORQUE PLATE BENEFITS

Using an IE Torque Plate to bore and hone your VW/Audi 4 cylinder engine block ensures the cylinders are as round as possible. A torque plate acts as a cylinder head bolted onto the block during the machine work, distorting the block into the shape it will be during running conditions. A torque plate is the only way to reliably deliver true round cylinders and proper piston to bore measurement clearances.

INCLUDED SPACERS & SHIMS

For the best bore and hone results, it is highly recommended to not only use a torque plate to machine your short block but to also install the torque plate using the exact hardware and torque you intend to use for installing the cylinder head. Aftermarket head bolts and head stud kits increase the bolt-down torque spec further altering the block shape once the head is installed. This IE Torque Plate includes precision machined spacers and hardened steel shims allowing factory length bolts or studs so you can bore your engine using the fasteners you intend to run.

ENGINE FITMENT

  • Fits all VW & Audi 4 cylinder gas engines from 1983 - 2016+

This part also goes by the following cross reference.

Cross Reference Part Number:

Fits These Vehicles 51 applications
Golf
Make Model Engine Years
Volkswagen Golf Base 1.8 1995–1995
Volkswagen Golf Base 1.9 1995–1995
Volkswagen Golf Base 2.0 2000–2002
Volkswagen Golf CL 1.8 1995–1998
Volkswagen Golf CL 1.9 1997–1997
Volkswagen Golf GL 1.8 1995–1996
Volkswagen Golf GL 2.0 1995–2005
Volkswagen Golf GL 1.9 1999–2003
Volkswagen Golf GL TDI 1.9 2004–2004
Volkswagen Golf GLS 2.0 1995–2005
Volkswagen Golf GLS 1.8 2000–2001
Volkswagen Golf GLS 1.9 2000–2003
Volkswagen Golf GLS TDI 1.9 2004–2004
Volkswagen Golf GTI 2.0 1995–2003
Volkswagen Golf GTI 2.8 1999–1999
Volkswagen Golf GTI 1.8 2004–2005
Volkswagen Golf GTI 1.8T 1.8 2002–2005
Volkswagen Golf GTI 337 1.8 2002–2002
Volkswagen Golf GTI GLS 1.8 2000–2001
Volkswagen Golf GTI GLS 2.0 2000–2000
Volkswagen Golf GTI GLX 2.8 2000–2001
Volkswagen Golf GTI VR6 2.8 1995–2005
Volkswagen Golf TDI 1.9 1996–1999
Volkswagen Golf Wolfsburg Edition 2.0 1999–1999
Jetta
Make Model Engine Years
Volkswagen Jetta 2.5 2.5 2005–2005
Volkswagen Jetta Base 1.8 1995–1995
Volkswagen Jetta Base 1.9 1995–1995
Volkswagen Jetta Base 2.0 1999–1999
Volkswagen Jetta CL 1.8 1995–1999
Volkswagen Jetta CL 2.0 1999–1999
Volkswagen Jetta GL 1.8 1995–2005
Volkswagen Jetta GL 2.0 1995–2005
Volkswagen Jetta GL TDI 1.9 2005–2005
Volkswagen Jetta GLI 2.8 2002–2004
Volkswagen Jetta GLI 1.8 2004–2005
Volkswagen Jetta GLS 2.0 1995–2005
Volkswagen Jetta GLS 2.8 1999–2002
Volkswagen Jetta GLS 1.8 2000–2005
Volkswagen Jetta GLS TDI 1.9 2005–2005
Volkswagen Jetta GLS Turbo 1.8 2000–2001
Volkswagen Jetta GLS VR6 1.8 1999–1999
Volkswagen Jetta GLS VR6 2.8 1999–2000
Volkswagen Jetta GLS Wolfsburg 2.0 2001–2001
Volkswagen Jetta GLX 2.8 1995–2003
Volkswagen Jetta GLX 2.0 1996–1998
Volkswagen Jetta GLX VR6 1.8 1999–1999
Volkswagen Jetta GLX VR6 2.8 1999–2002
Volkswagen Jetta TDI 1.9 1996–2005
Volkswagen Jetta VR6 2.8 1995–1998
Volkswagen Jetta Wolfsburg Edition 2.0 1996–1999
Volkswagen Jetta Wolfsburg Edition 1.8 2001–2001

Fitment data last updated: 2026-05-03
