Fabless 4-Cyl Complete Mount Kit (OEM Position) - VW MK3

The Fabless 4-Cyl Complete Mount Kit for the VW MK3 can be used a direct replacement for MK3 factory 4-cylinder engine mounts or they can be used to swap in a 1.8T or another 4-cylinder engine listed below. Compatible with the 02a/02J 5 speed transmission.

Our mounts are stronger and stiffer than the factory mounts while also providing some adjustability on the Block Mount. The block mount has two positions; factory height (top position) & a 16mm drop with MK3/Corrado VR6 Subframe (lower setting). The lower setting on the mount is useful for additional hood clearance.

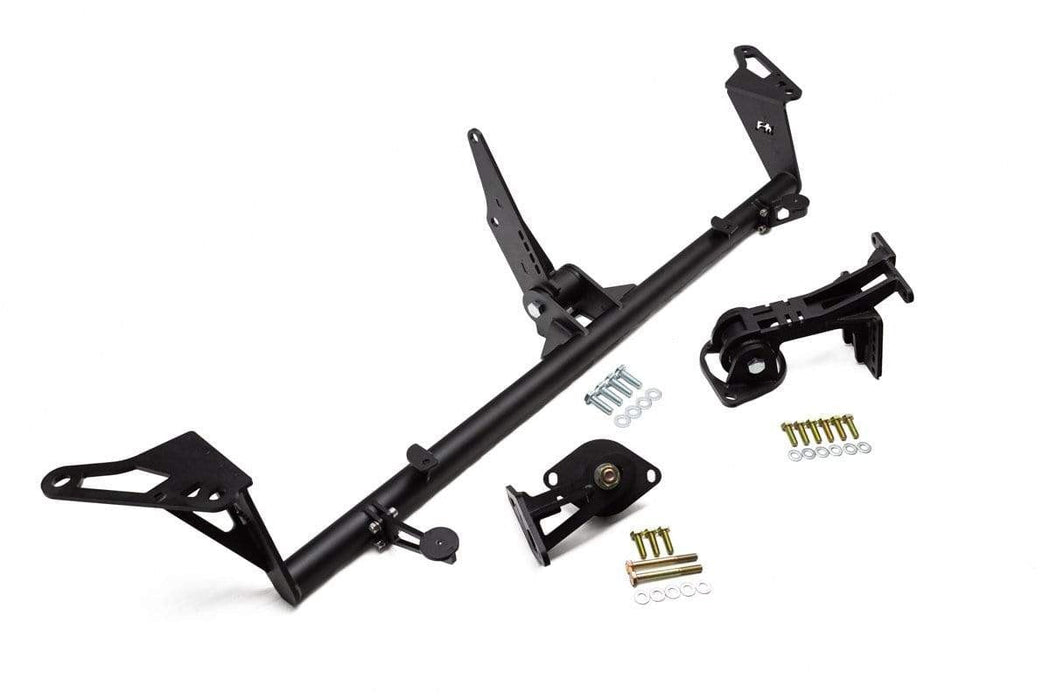

The Fabless MK3 4-Cylinder Complete Mount Kit is a full mount solution, providing an upgraded front cross member and all the mounts needed for a completely bolt in swap. Made from mild steel, beautifully TIG Welded and coated with black powder coat for durability.

These mounts are OEM position, which means they work with factory axles.

What’s Included

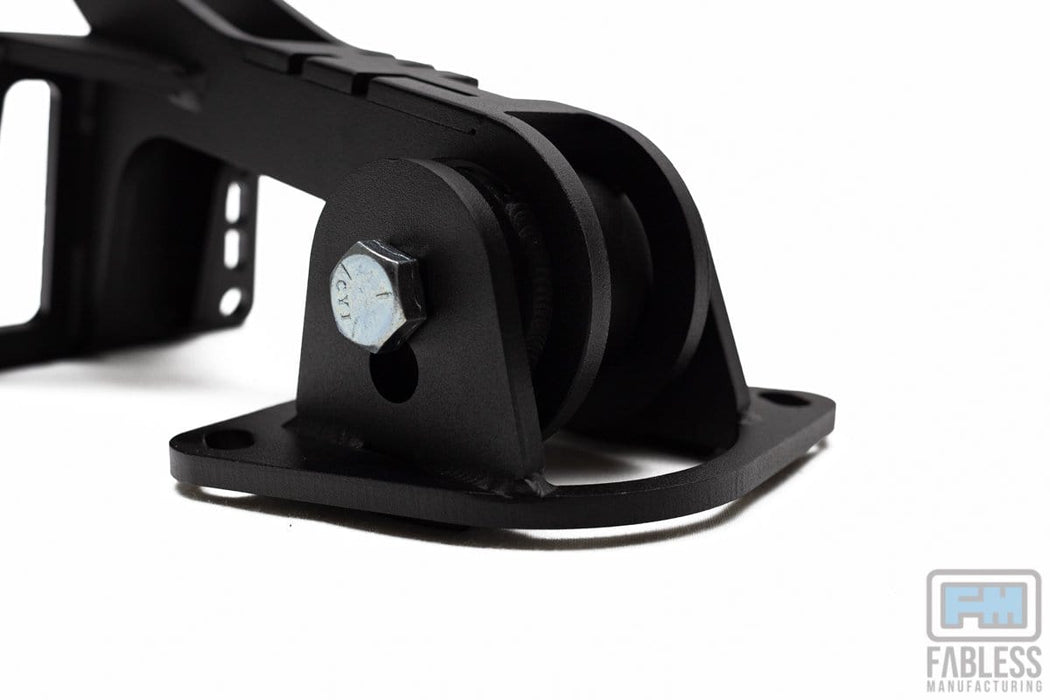

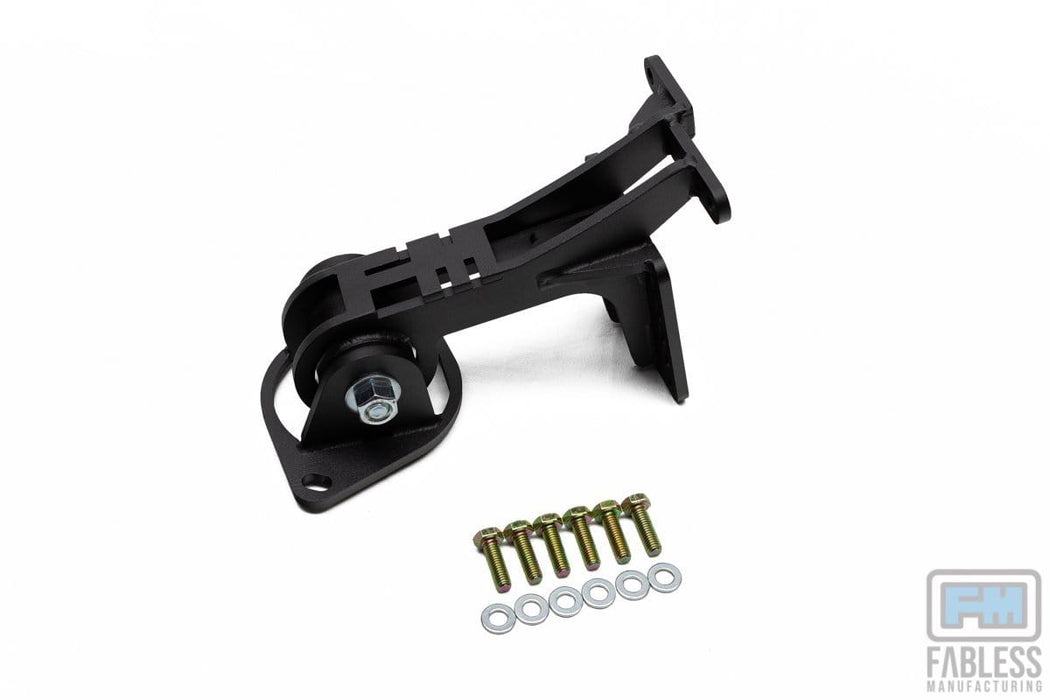

• 4-Cyl Block Mount with polyurethane bushing

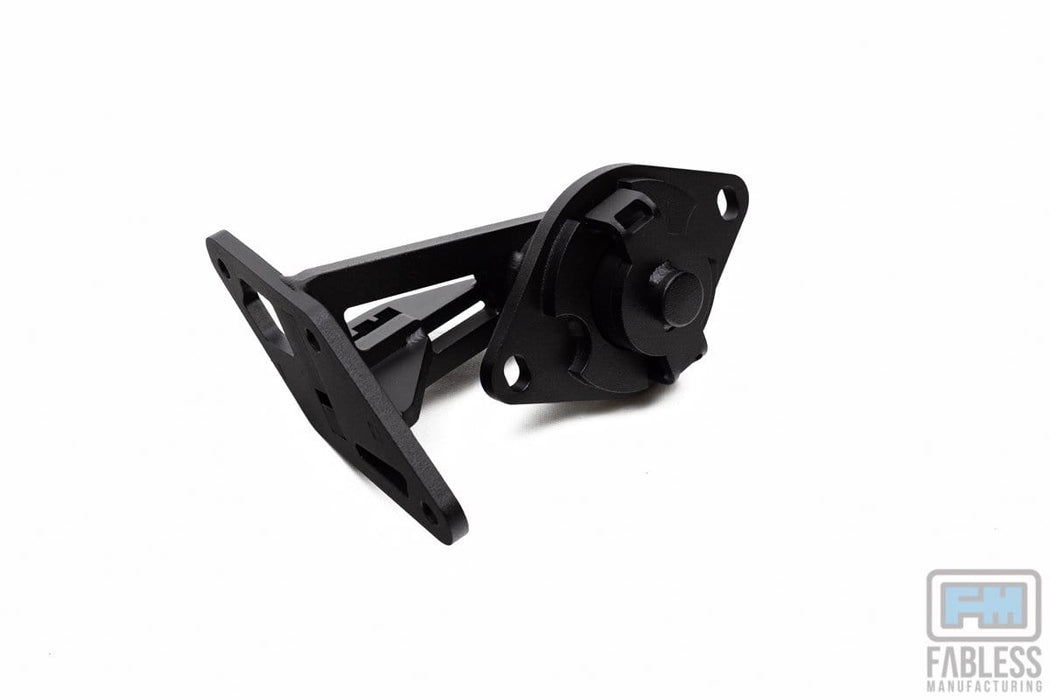

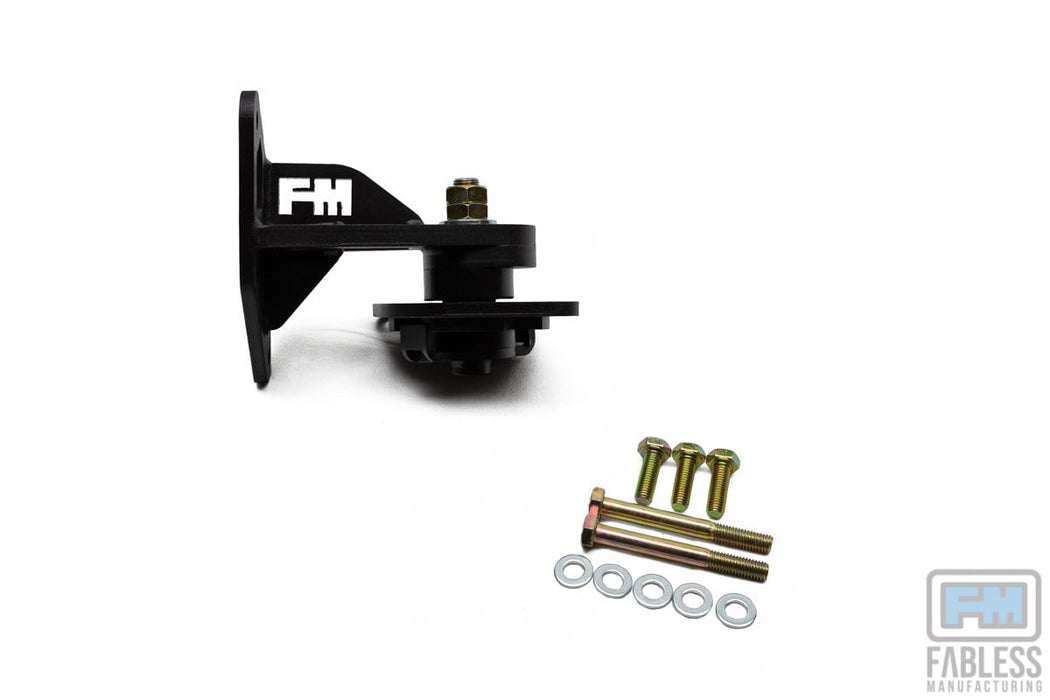

• 02A/02J Transmission Mount with polyurethane bushing
• Zinc plated mounting hardware
• Black powder coat

Add-Ons/Compatible Products

• Radiator Mount Kit - VW MK3 (radiator bushings)

• Polyurethane Jack Pad

Compatibility

Vehicles

• VW MK3 Golf/Jetta

Engines

• 1.8T

• 1.8L 8v/16v
• 2.0L ABA/16v

• G60
• ALH *tested for turbo clearance

Transmissions

• 02A 5-Speed
• 02J 5-Speed

Axles

• Factory 02A/02J Axles

This part also goes by the following cross reference.

Cross Reference Part Number:
