Dual Rear Caliper Adapter Kit

***Please see ES3200692 to build your own custom kit with these adapters!***

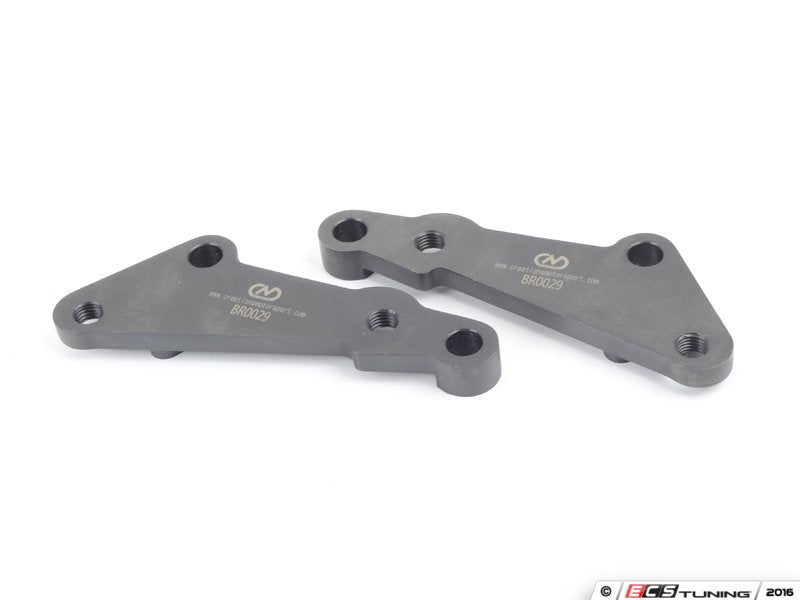

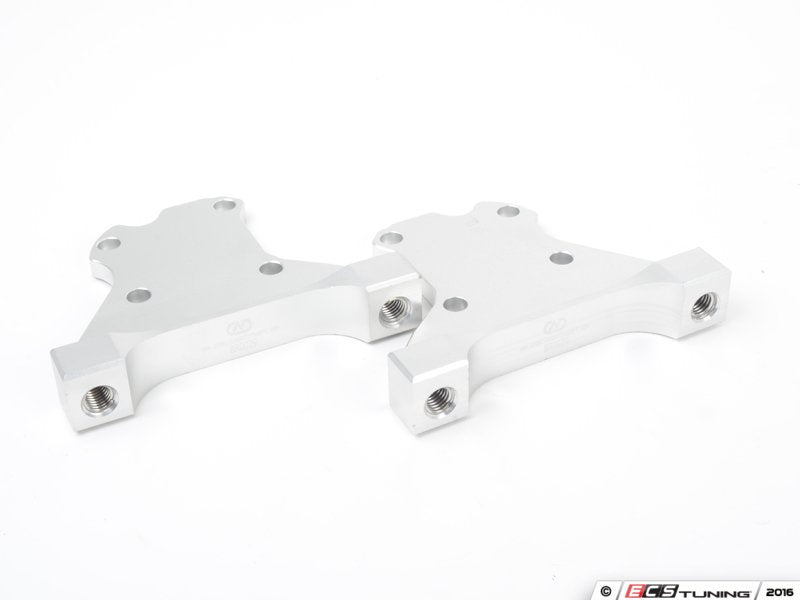

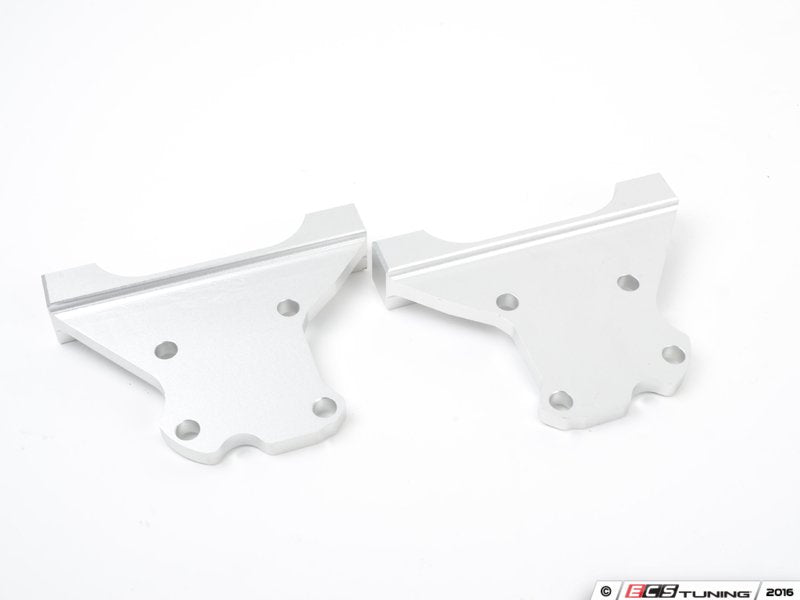

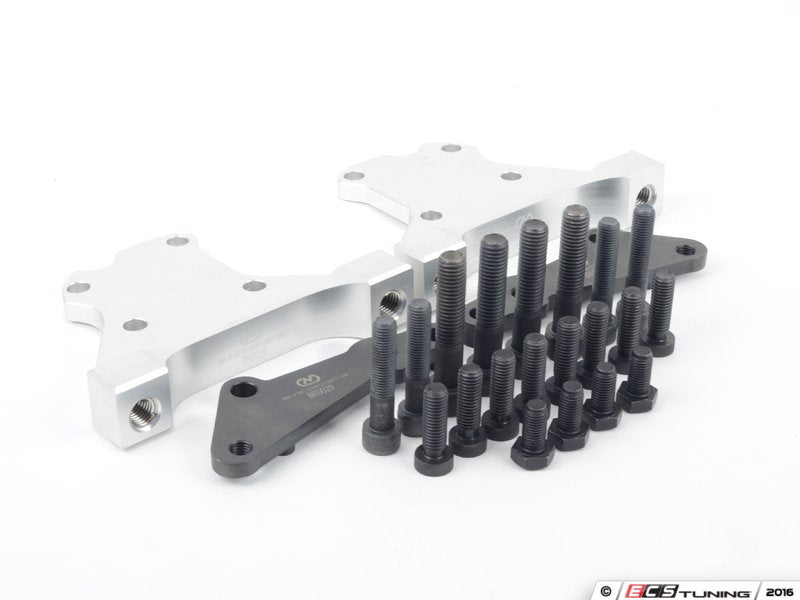

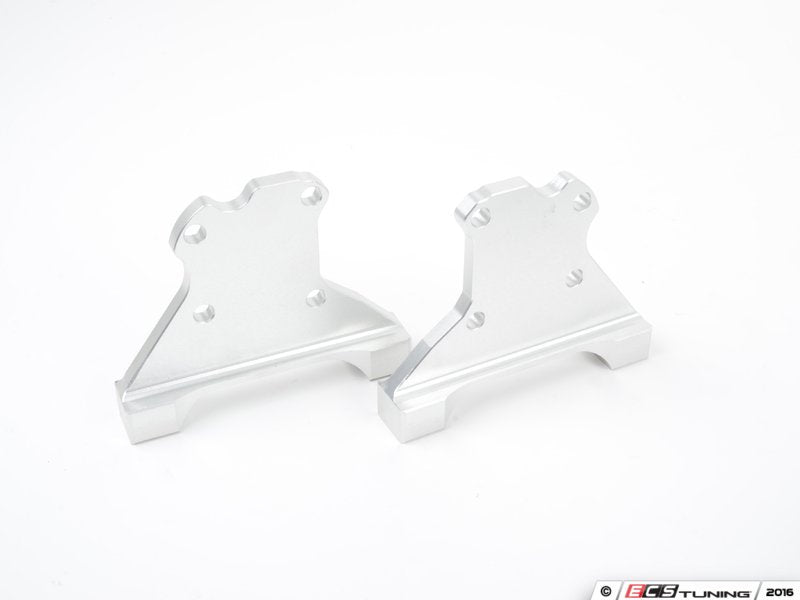

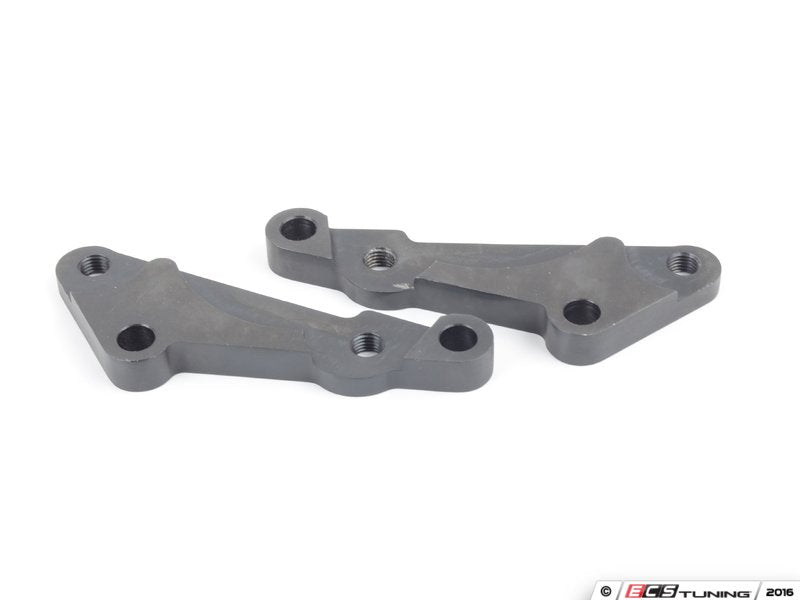

This caliper adapter kit allows you to mount the rear Porsche 996 / Boxter S Brembo calipers to the rear of MK4 chassis vehicles. A factory rear 337 / 20AE / GLI 1.8T / R32 / TT caliper is used in conjunction with the 4-piston caliper in order to provide parking brake duties. This setup is intended to be used with the 280x22mm rotors found on MK4 2.0L/TDI models.

The Porsche calipers are connected to the hydraulic system of the vehicle for increased braking force. Since they have no hand brake function, the factory rear 337 / 20AE / GLI 1.8T / R32 / TT caliper is used for the hand brake function only. The hydraulic connection on the hand brake caliper is closed, so it requires a blanking plug.

Required Calipers:

• Main Left: 99635242103 (Black), 99635242113 (Red), or 99635242124 (Silver)
• Main Right: 99635242203 (Black), 99635242213 (Red), or 99635242224 (Silver)
• Hand Brake Left: 8N0615423C (Raw), 1J0615423E (Red), or 1J0615423F (Blue)
• Hand Brake Right: 8N0615424C (Raw), 1J0615424E (Red), or 1J0615424G (Blue)

Required Caliper Carriers:

• Left/Right: 8N0615425E (Raw) or 1J0615425F (Blue)

Required Rotors:

• Left/Right: 1J0615301P

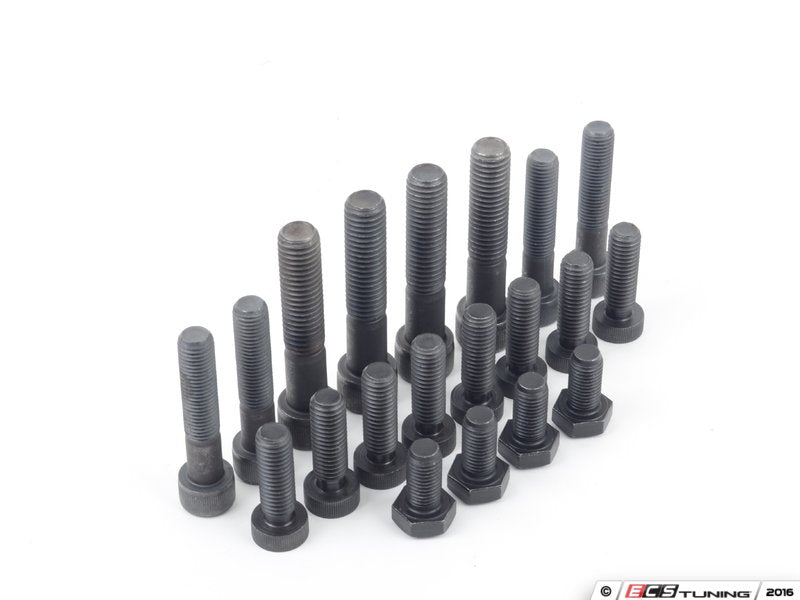

The adapters are made from high tensile strength steel and 6061 T6 aluminium and each adapter is machined from a single block without any welding. High strength 12.9 rated bolts are included with the adapters.

Creations Motorsport was founded in 2007 by a group of VAG enthusiasts in Germany. The company started life as a hobby which turned into something much bigger. CMS is known around the world for their brake adapters and other unique solutions for VW/Audi models. Braking components are taken very seriously and every brake adapter is track tested before it is put into production. All components are machined in-house at their Birmingham, United Kingdom facility.
