VW Brakes Kit – Pads & Rotors Front and Rear (345mm/310mm) (Low-Met) 8J0698151F – Brembo 4189366KIT
VW Brakes Kit – Pads & Rotors Front and Rear (345mm/310mm) (Low-Met) 8J0698151F – Brembo 4189366KIT
VW Brakes Kit – Pads & Rotors Front and Rear (345mm/310mm) (Low-Met) 8J0698151F – Brembo 4189366KIT

VW Brakes Kit – Pads & Rotors Front and Rear (345mm/310mm) (Low-Met) 8J0698151F – Brembo 4189366KIT

BREMBO

Stock: Out of Stock This item is currently unavailable. Check back later.

SKU 4189366KIT
Sold out
$695.99 - $695.99
$695.99
$695.99 - $695.99
$695.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

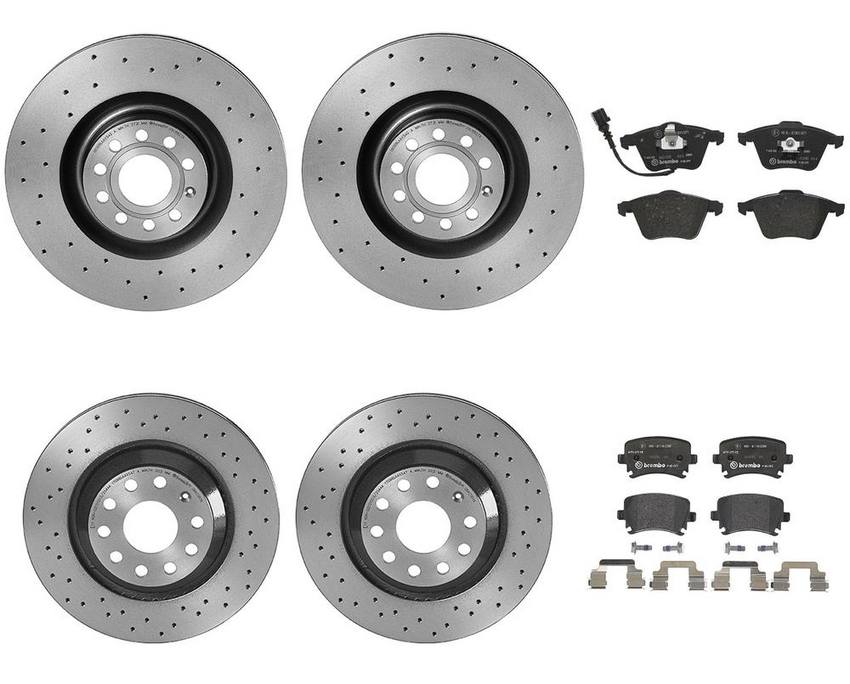

Kit Includes:

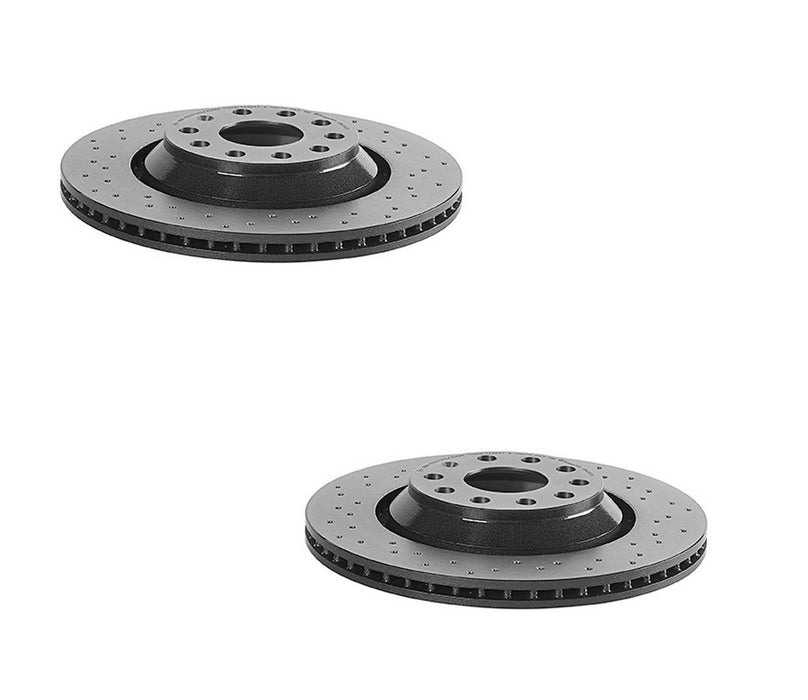

2 x Brembo 09.A200.1X Rear Disc Brake Rotors Xtra - 310mm, Drilled, Pillar Vented, Coated

1 x Brembo P85079 Front Disc Brake Pad Set Low-Met with Electric Wear Sensor

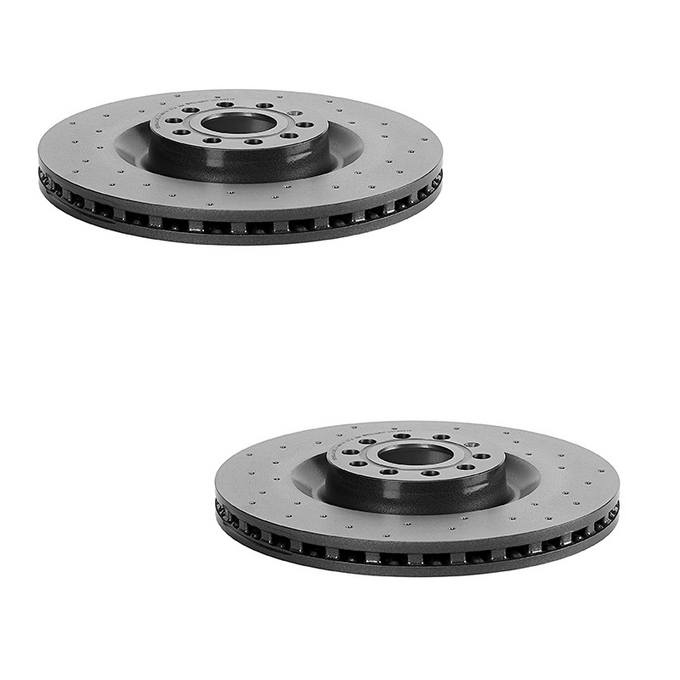

2 x Brembo 09.C892.1X Front Disc Brake Rotors Xtra - 345mm, Drilled, Pillar Vented, Coated

1 x Brembo P85095 Rear Disc Brake Pad Set Low-Met with Hardware

Brake System (Front Pads) Teves
Brake System (Rear Pads) Lucas
Braking Surface (Front Rotors) Drilled
Braking Surface (Rear Rotors) Drilled
Centering Diameter (MM) (Rear Rotors) 65
Features (Rear Pads) with hardware, with brake caliper screws
Fixing Screws (Front Rotors) included
Fixing Screws (Rear Rotors) included
Friction Material Composition (Pads) Low-Metallic
Height (MM) (Front Pads) 72.9
Height (MM) (Front Rotors) 49.6
Height (MM) (Rear Pads) 56.5
Height (MM) (Rear Rotors) 48.2
Material (Front Rotors) High Carbon Cast Iron
Material (Rear Rotors) High Carbon
Minimum Thickness (MM) (Front Rotors) 27.8
Minimum Thickness (MM) (Rear Rotors) 20.5
Nominal Thickness (MM) (Front Pads) 20.1
Nominal Thickness (MM) (Front Rotors) 30
Nominal Thickness (MM) (Rear Pads) 17.2
Nominal Thickness (MM) (Rear Rotors) 22
Number of Holes (Rear Rotors) 5
Outside Diameter (MM) (Front Rotors) 345
Outside Diameter (MM) (Rear Rotors) 310
Rust Resistant Coating (Front Rotors) UV Coated
Rust Resistant Coating (Rear Rotors) UV Coated
Solid Or Vented Type Rotor (Front Rotors) PVT
Solid Or Vented Type Rotor (Rear Rotors) vented
Suface Finishing (Front Pads) chamfered
Torque Spec(NM) (Rear Rotors) 120
Wear Indicator (Front Pads) with electric wear indicator
Width (MM) (Front Pads) 156.3 / 155.1
Width (MM) (Rear Pads) 105.5
Brand Part #
Brand Part #
Audi 1K0615601N
Audi 5Q0615601E
Audi 8J0698151A
Audi 8J0698151F
Skoda 1K0615601N
Volkswagen 1K0615301AR
Volkswagen 1K0615301M
Volkswagen 1K0615601N
Volkswagen 5Q0615601E

This part also goes by the following cross reference.

Cross Reference Part Number:
