Aeromotive A1000 Carbureted Bypass Regulator - 2-Port
Aeromotive A1000 Carbureted Bypass Regulator - 2-Port
Aeromotive A1000 Carbureted Bypass Regulator - 2-Port
Aeromotive A1000 Carbureted Bypass Regulator - 2-Port
Aeromotive A1000 Carbureted Bypass Regulator - 2-Port
Aeromotive A1000 Carbureted Bypass Regulator - 2-Port
Aeromotive A1000 Carbureted Bypass Regulator - 2-Port
Aeromotive A1000 Carbureted Bypass Regulator - 2-Port
Aeromotive A1000 Carbureted Bypass Regulator - 2-Port

Aeromotive A1000 Carbureted Bypass Regulator - 2-Port

AEROMOTIVE
Availability:
Out of Stock — Contact Us
Currently out of stock with no ETA. Contact us for more information.
SKU AER13204
Sold out
$231.95 - $231.95
$231.95
$231.95 - $231.95
$231.95
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 1155 points to redeem on future purchases. Check your points.

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

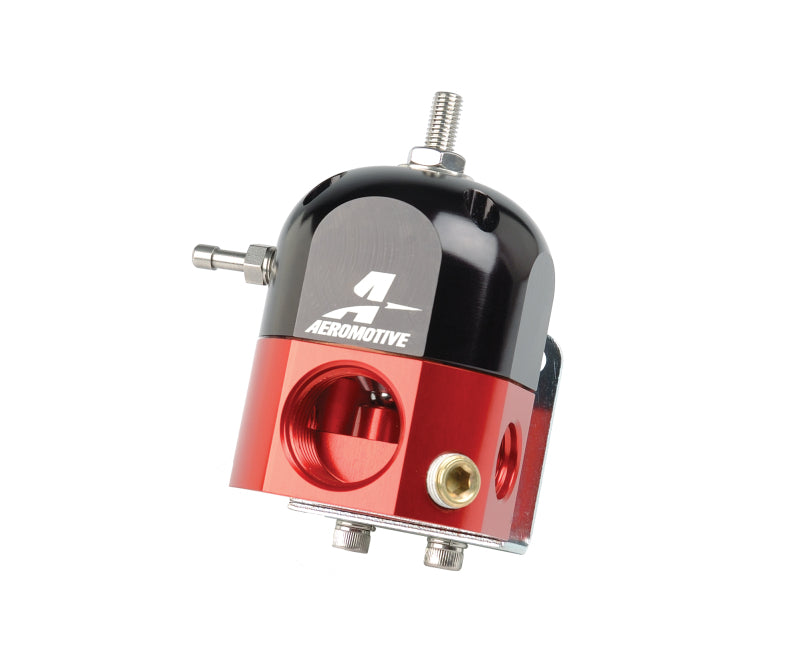

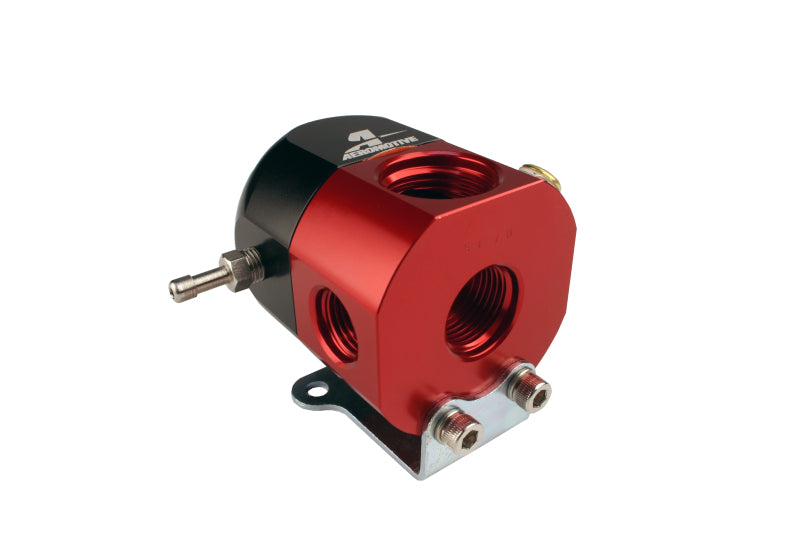

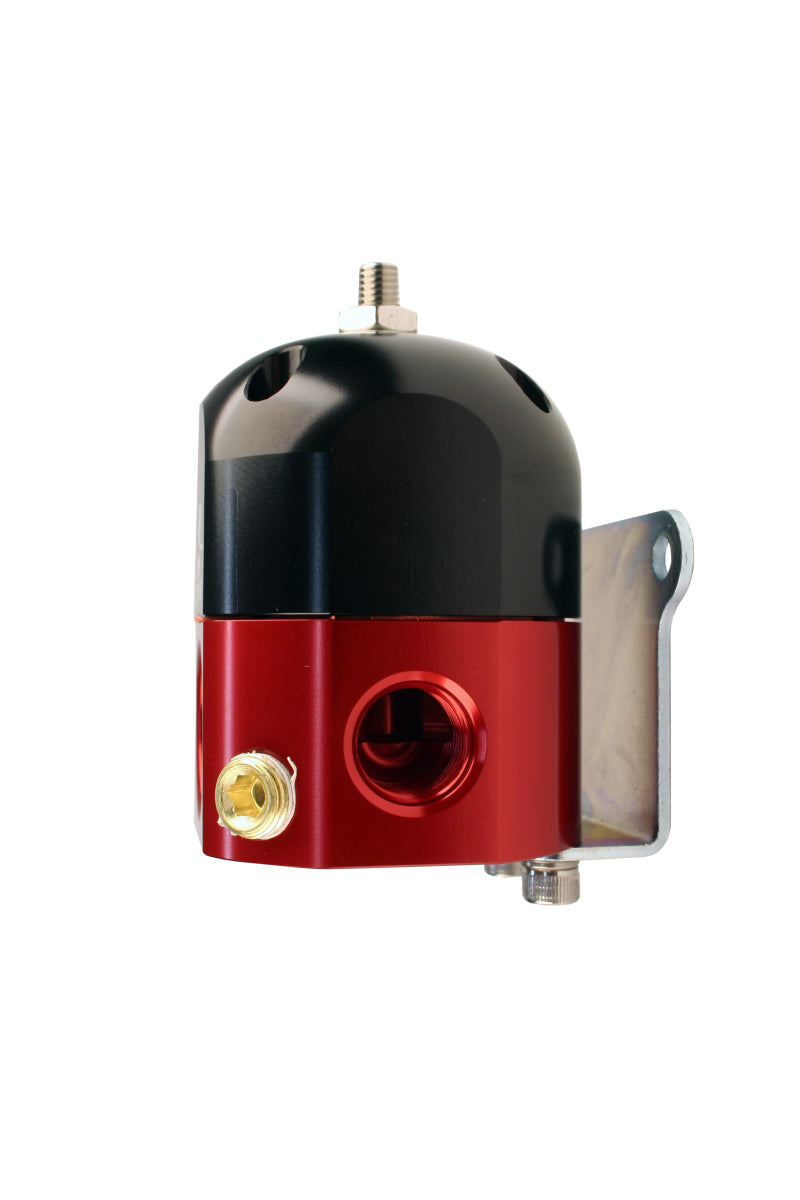

The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or ?blow-through? supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13204 provides (2) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.?Note: Requires AN-08 return line from bottom of regulator back to top of the tank.

This part also goes by the following cross reference.

Cross Reference Part Number:

Fitment data is currently being updated for this part. Please contact us with your VIN to confirm compatibility.
