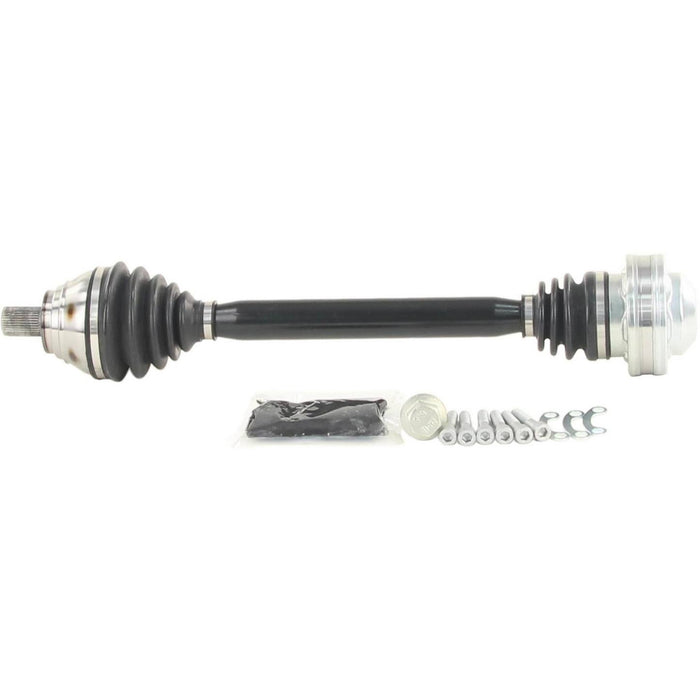

Audi CV Axle Shaft – Front Passenger Side SurTrack AD-8204

Audi CV Axle Shaft – Front Passenger Side SurTrack AD-8204

Stock: Direct Ship ℹ️ This item ships directly from our supplier and is subject to availability.

SKU AD-8204
$276.99 - $276.99
$276.99
$276.99 - $276.99
$276.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

Abs Ring Tooth Count N/A
Abs Ring Type N/A
Abs Tone Ring Included N/A
Axle Bolt Hex Size (mm) 27
Axle Bolt Length (mm) 86
Axle Bolt Thread Size M16*1.5
Axle Nut Head Type N/A
Axle Nut Height (in) N/A
Axle Nut Height (mm) N/A
Axle Nut Hex Size (in) N/A
Axle Nut Hex Size (mm) N/A
Axle Nut Included No
Axle Nut Length (in) N/A
Axle Nut Length (mm) N/A
Axle Nut Locking Type N/A
Axle Nut Thread Size N/A
Boot Material Neoprene
Inboard Bolt Head Size (in) 5/16
Inboard Bolt Head Size (mm) 8
Inboard Bolt Length (in) 2 3/8
Inboard Bolt Length (mm) 60
Inboard Bolt Thread Size M10*1.5
Inboard Joint Type Bolt-On
Inboard Shaft Connection Style Bolt-On
New Or Remanufactured New
Number Of Bolt Holes 1
Number Of Inboard Joint Bolt Holes 6
Number Of Inboard Shaft Bolts 6
Number Of Inboard Splines N/A
Number Of Outboard Joint Bolt Holes 1
Number Of Outboard Shaft Bolts 1
Number Of Outboard Splines 36
Outboard Bolt Head Size (in) N/A
Outboard Bolt Head Size (mm) N/A
Outboard Bolt Head Type N/A
Outboard Bolt Length (in) N/A
Outboard Bolt Length (mm) N/A
Outboard Joint Bolt Thread Size N/A
Outboard Joint Type Male
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 24.17
Overall Compressed Length (mm) 614
Overall Extended Length (in) 26.02
Overall Extended Length (mm) 661

This part also goes by the following cross reference.

Cross Reference Part Number:
