Audi CV Axle Shaft Kit – Front and Rear 4B3501203BX – Aftermarket 3991445KIT

Audi CV Axle Shaft Kit – Front and Rear 4B3501203BX – Aftermarket 3991445KIT

Stock: Direct Ship ℹ️ This item ships directly from our supplier and is subject to availability.

SKU 3991445KIT
$354.99 - $354.99
$354.99
$354.99 - $354.99
$354.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

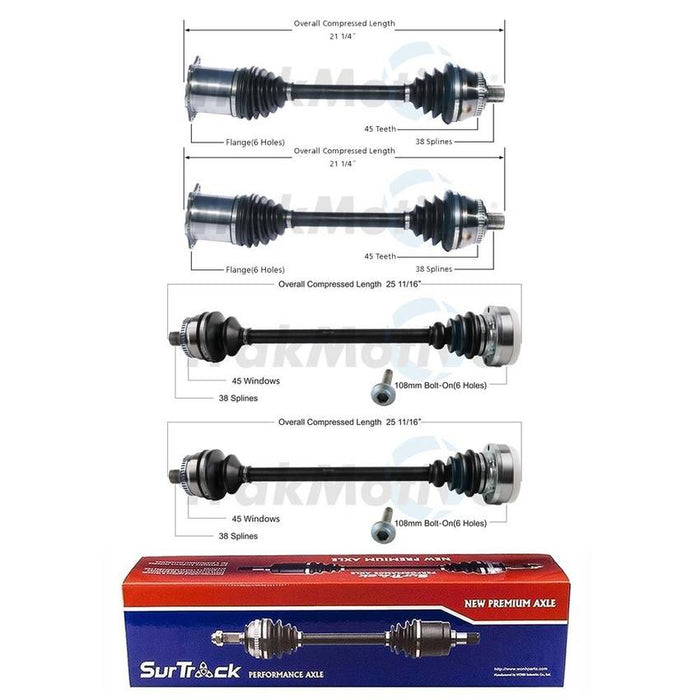

Kit Includes:

1 x Surtrack AD-8163 Rear Left CV Axle Shaft

1 x Surtrack AD-8163 Rear Right CV Axle Shaft

1 x Surtrack AD-8111 Front Left CV Axle Shaft

1 x Surtrack AD-8111 Front Right CV Axle Shaft

Abs Ring Tooth Count (Front CV Axle Shaft) 45
Abs Ring Tooth Count (Rear CV Axle Shaft) 45
Abs Ring Type (Front CV Axle Shaft) Window
Abs Ring Type (Rear CV Axle Shaft) Window
Abs Tone Ring Included (Front CV Axle Shaft) Yes
Abs Tone Ring Included (Rear CV Axle Shaft) Yes
Axle Bolt Hex Size (mm) (Front CV Axle Shaft) 27
Axle Bolt Hex Size (mm) (Rear CV Axle Shaft) 17
Axle Bolt Length (mm) (Front CV Axle Shaft) 97
Axle Bolt Length (mm) (Rear CV Axle Shaft) 90
Axle Bolt Thread Size (Front CV Axle Shaft) M16*1.5
Axle Bolt Thread Size (Rear CV Axle Shaft) M16*1.5
Axle Nut Included (Front CV Axle Shaft) No
Axle Nut Included (Rear CV Axle Shaft) No
Boot Material (Front CV Axle Shaft) Neoprene
Boot Material (Rear CV Axle Shaft) Neoprene
Inboard Joint Type (Front CV Axle Shaft) Flange
Inboard Joint Type (Rear CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Front CV Axle Shaft) Flange
Inboard Shaft Connection Style (Rear CV Axle Shaft) Bolt-On
New Or Remanufactured (Front CV Axle Shaft) New
New Or Remanufactured (Rear CV Axle Shaft) New
Number Of Bolt Holes (Front CV Axle Shaft) 1
Number Of Bolt Holes (Rear CV Axle Shaft) 6
Number Of Inboard Splines (Rear CV Axle Shaft) /
Number Of Outboard Shaft Bolts (Front CV Axle Shaft) 1
Number Of Outboard Shaft Bolts (Rear CV Axle Shaft) 1
Number Of Outboard Splines (Front CV Axle Shaft) 38
Number Of Outboard Splines (Rear CV Axle Shaft) 38
Outboard Joint Type (Front CV Axle Shaft) Audi Style Spline Bolt
Outboard Joint Type (Rear CV Axle Shaft) Audi Style Spline Bolt
Outboard Shaft Connection Style (Front CV Axle Shaft) Audi Style Spline Bolt
Outboard Shaft Connection Style (Rear CV Axle Shaft) Spline
Overall Compressed Length (in) (Front CV Axle Shaft) 21.26
Overall Compressed Length (in) (Rear CV Axle Shaft) 25.69
Overall Compressed Length (mm) (Front CV Axle Shaft) 540
Overall Compressed Length (mm) (Rear CV Axle Shaft) 652.5
Brand Part #
Brand Part #
OEM Part Number 4B0407271AS
OEM Part Number 4B3407271G
OEM Part Number 4B3501203BX

This part also goes by the following cross reference.

Cross Reference Part Number:
