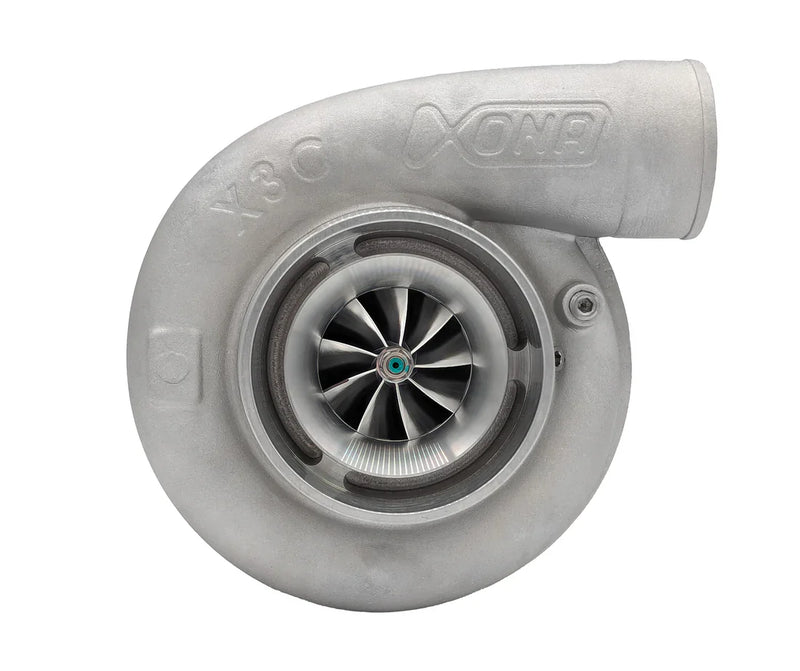

XRA5557S Ball Bearing Turbocharger
XRA5557S Ball Bearing Turbocharger
XRA5557S Ball Bearing Turbocharger
XRA5557S Ball Bearing Turbocharger
XRA5557S Ball Bearing Turbocharger
XRA5557S Ball Bearing Turbocharger

XRA5557S Ball Bearing Turbocharger

TiALSport

Stock: Direct Ship Ships directly from our supplier and is subject to availability.

SKU 93200
$1,968.29 - $2,490.03
$1,976.03
$1,968.29 - $2,490.03
$1,976.03
Compressor Cover Size: X3C
Turbine Housing: No Turbine Housing, Super Core Only

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

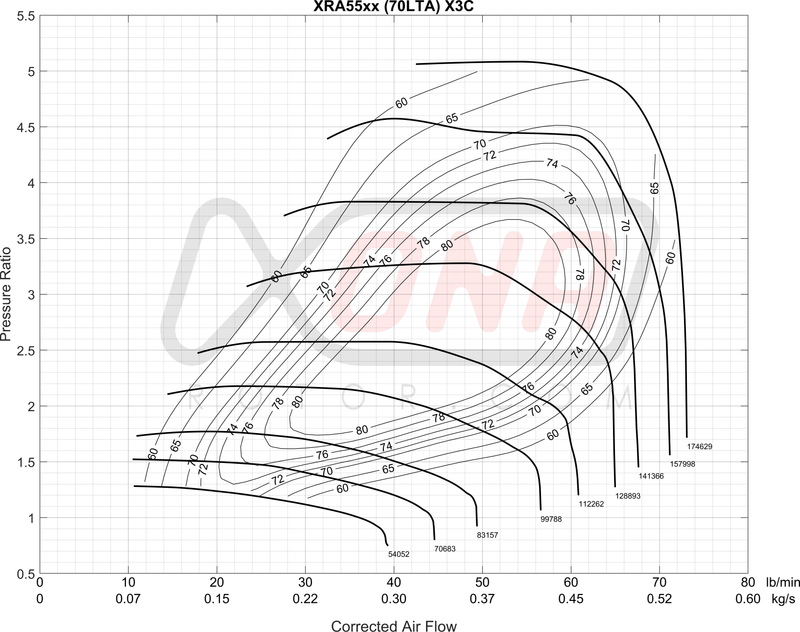

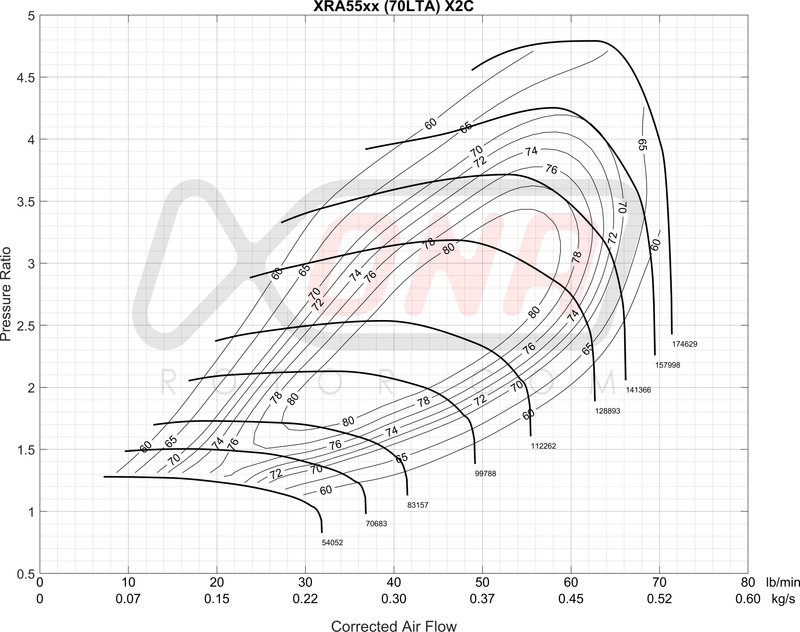

With all new XRA compressor wheel aero designed for excellent efficiency and flow at low to mid PR, the XRA5557S means big power in larger, high efficiency engines.

Component Details

  • Compressor wheel - 55mm Inducer / 70mm Exducer
  • Turbine Outlet - 57mm UHF™
  • 73 lb/min Flow Rating
  • 350-650HP Applications
  • Variable preload angular contact bearings
  • Twin gas ring seals at the compressor and turbine
  • High strength, lightweight stainless steel center housing
  • Full hydraulic damping of the rotating assembly
  • Integrated oil contaminate filter
  • M62 race material allows higher temperature operation
  • Metallic bearing cages

Product Information

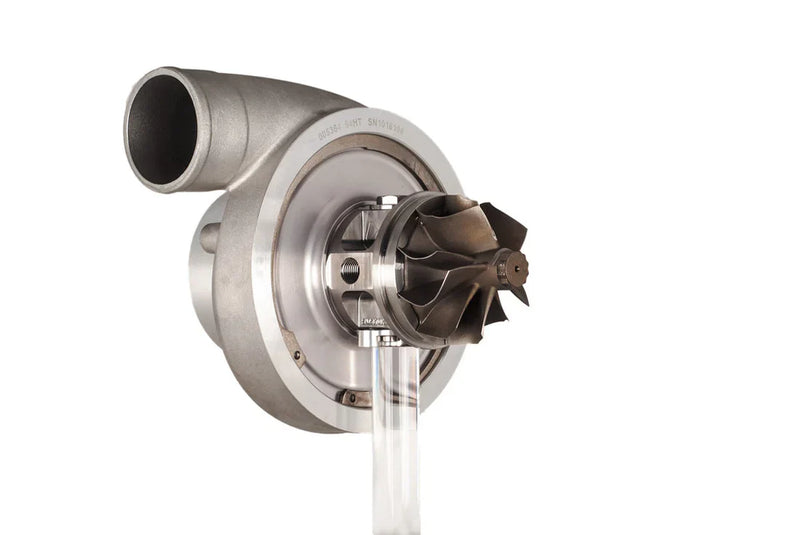

The revolutionary UHF™ aero XR57S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30%, giving the fastest response we have ever observed at this power level.

The XRA5557s is ideal for twin applications on larger engines or for maximizing flow in lower boost applications. This turbo uses the ground breaking 57mm UHF™ turbine wheel that outflows the competitor's much larger turbine wheels. By having a smaller turbine wheel, rotating mass is significantly reduced which results in greater response and overall improved drivability. All of the flow, none of the lag.

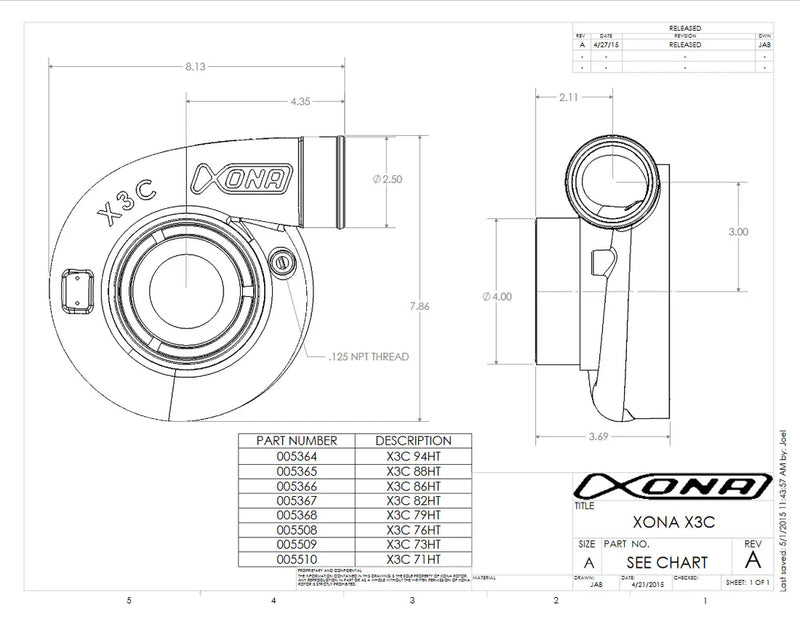

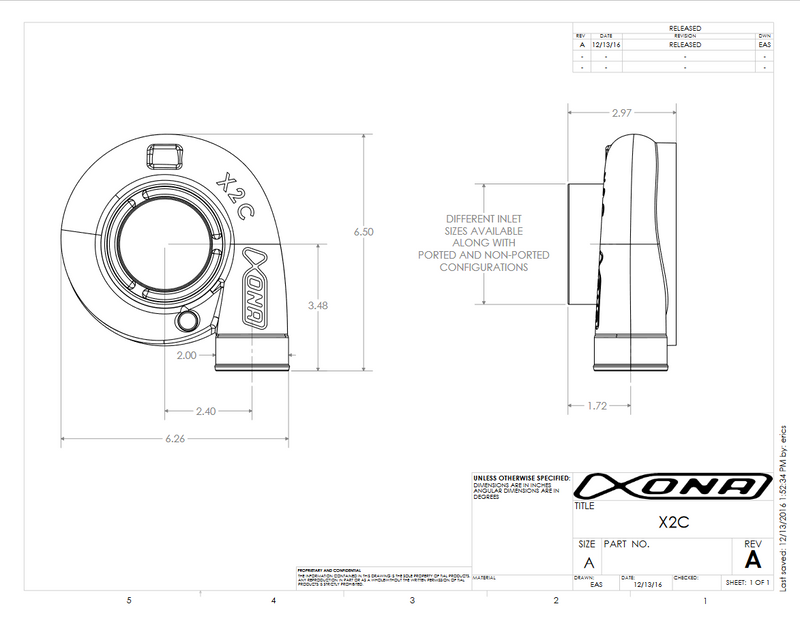

This turbocharger is available in an X3C or X2C, depending on your size and space constraints. Dimensions for both covers are included in the product images.


THIS PRODUCT IS FOR COMPETITION USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND TO USE THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT. THIS PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA ON ANY TYPE OF EMISSION CONTROLLED VEHICLE.

This part also goes by the following cross reference.

Cross Reference Part Number:
