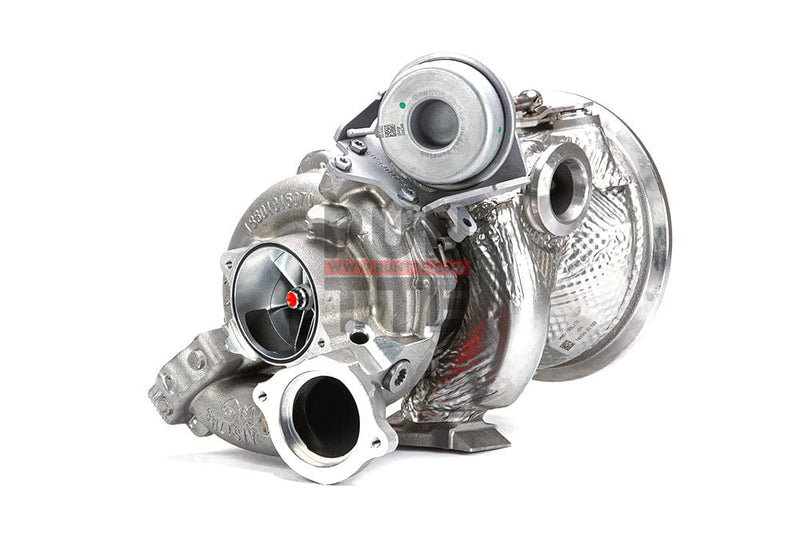

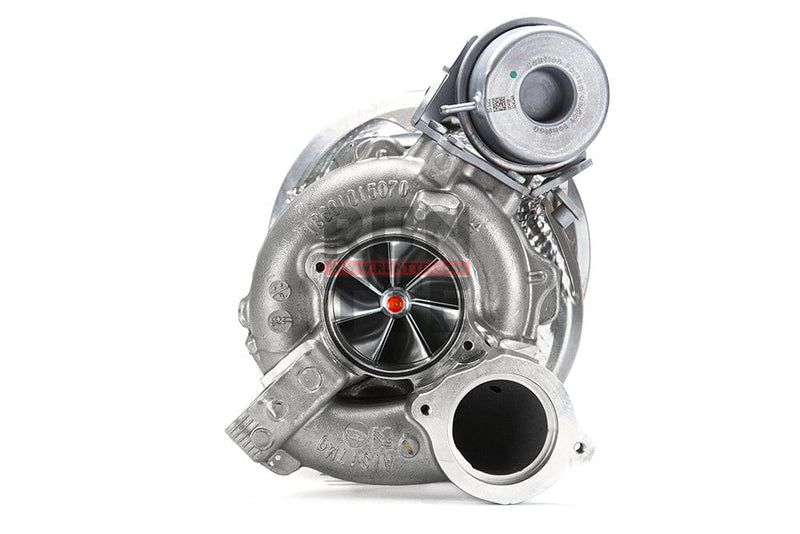

TTE810 3.0 TFSI Upgrade Turbocharger - Audi 3.0T / B9 / B9.5 S4 & S5
TTE810 3.0 TFSI Upgrade Turbocharger - Audi 3.0T / B9 / B9.5 S4 & S5
TTE810 3.0 TFSI Upgrade Turbocharger - Audi 3.0T / B9 / B9.5 S4 & S5
TTE810 3.0 TFSI Upgrade Turbocharger - Audi 3.0T / B9 / B9.5 S4 & S5

TTE810 3.0 TFSI Upgrade Turbocharger - Audi 3.0T / B9 / B9.5 S4 & S5

THE TURBO ENGINEERS
Ships from Supplier
SKU TTE10494
$4,901.11 - $4,901.11
$4,901.11
$4,901.11 - $4,901.11
$4,901.11
CALIFORNIA WARNING

Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information see www.P65Warnings.ca.gov/motor-vehicle-parts.

Rewards
EARN REWARD POINTS
Purchasing this product will earn you 24505 points to redeem on future purchases. Check your points.


Introducing our TTE810 Turbocharger for the 3.0 TFSI Our latest hybrid evolution for the ultimate blend of power, fast-response, and Plug&Play ease of fitment.  Utilizing the original turbocharger but for greater flow and power.  Fitted with an large proven TTE billet compressor and our latest bigger 9blade turbine, this turbo is to give more power and torque holding over TTE710 with near same spool & response.

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled, and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.

Upgrade intercooler, downpipe, sports cat, and full exhaust are recommended,  upgrade to the turbo intake and system is also recommended for max performance.  Special attention should be noted on the turbo inlet connection size.  Any smaller then 66mm will limit performance.

Product Highlights:

  • Original BWTS turbocharger
  • TTE Billet Milled compressor 7+7 BLADE 66MM Inlet
  • TTE 9 Blade oversize High-Flow Low Mass Turbine
  • Plug and Play installation (Larger inlet recommended)
  • 7pad thrust bearing
  • 600HP+ proven on pump 102 petrol
  • Proven TheTurboEngineers quality
  • Single parts finely balanced then components assembled and core high-speed VSR balanced
  • Supplied with a balance test result document
  • Made in Germany


This part also goes by the following cross reference.

Cross Reference Part Number:

About this Turbocharger

The THE TURBO ENGINEERS TTE10494 turbocharger uses exhaust energy to spin a turbine that drives a compressor, forcing more air into the engine. More air means more power from a smaller engine, and turbocharger health depends heavily on clean oil.

Frequently asked questions

What are the signs of a failing turbocharger?

Loss of boost and power, a loud whine or siren sound, blue or grey smoke, oil in the intake pipes or intercooler, or boost-related fault codes.

What causes a turbocharger to fail?

Most failures come from oil problems, such as dirty oil, a blocked oil feed or late oil changes, and from foreign objects entering the turbine or compressor. Find and fix the cause before fitting the new turbo.

What should I replace along with the turbo?

Replace the oil feed and return lines or their seals, all gaskets and single-use fasteners, and change the oil and filter. Clean or replace the intercooler and pipes if the old turbo shed oil or debris into them.

Can I install a turbocharger myself?

It is an involved job with tight access and important oil-priming steps. Prime the turbo with oil before first start and let the engine idle to build oil pressure. An experienced technician is recommended.

How do I make sure this turbocharger fits my car?

Compare the part numbers listed on this page with the number on your old part or in your vehicle's parts catalog, and check the fitment information. If you are unsure, contact us with your VIN before ordering.
