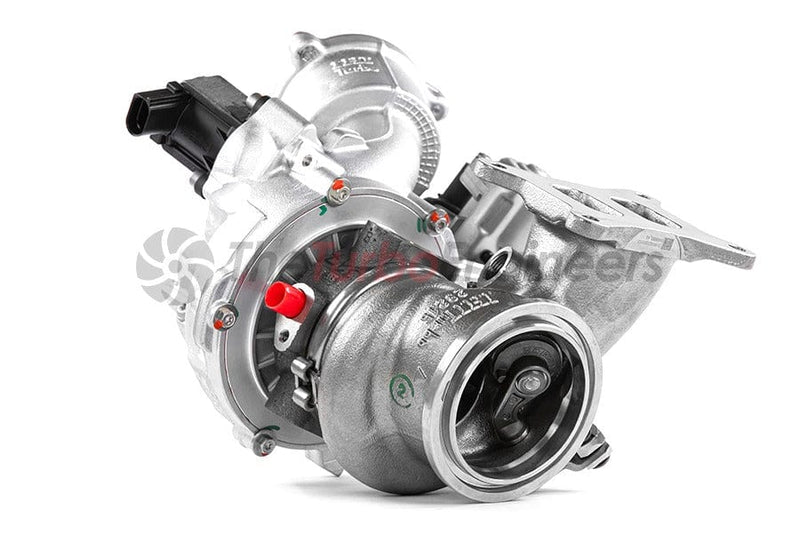

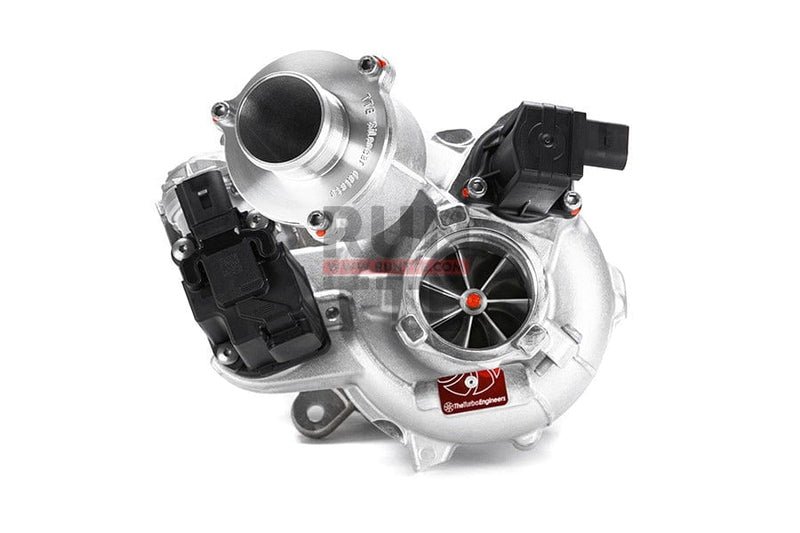

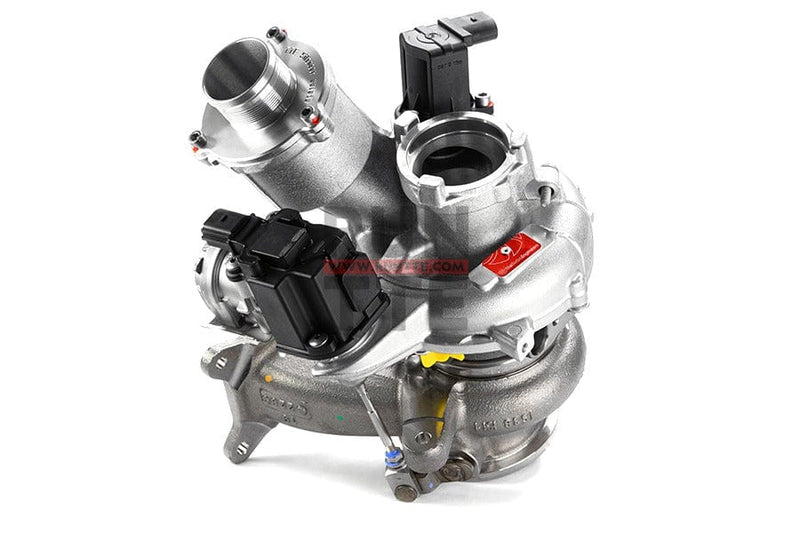

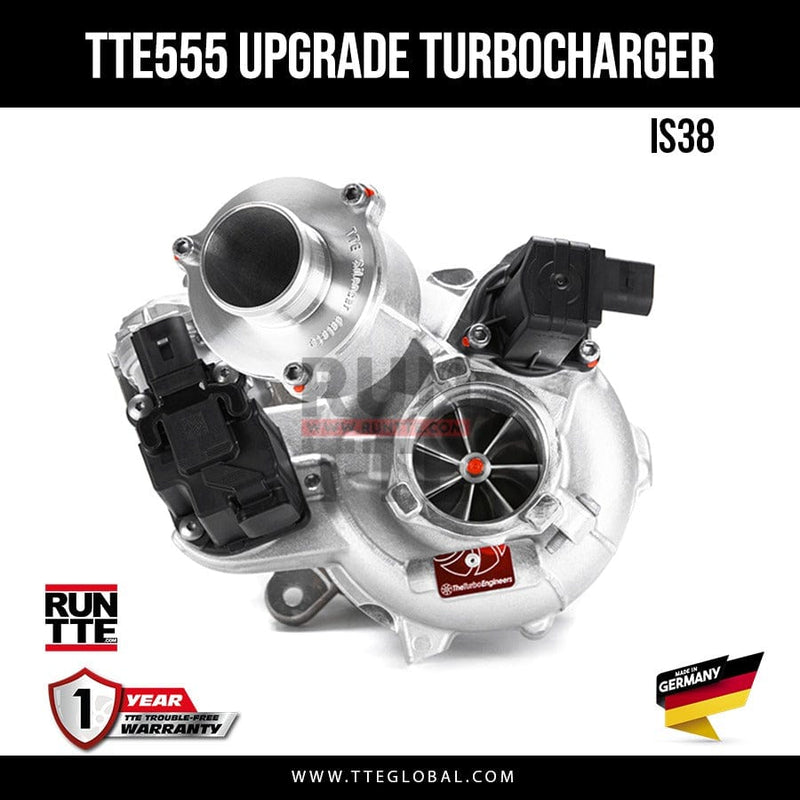

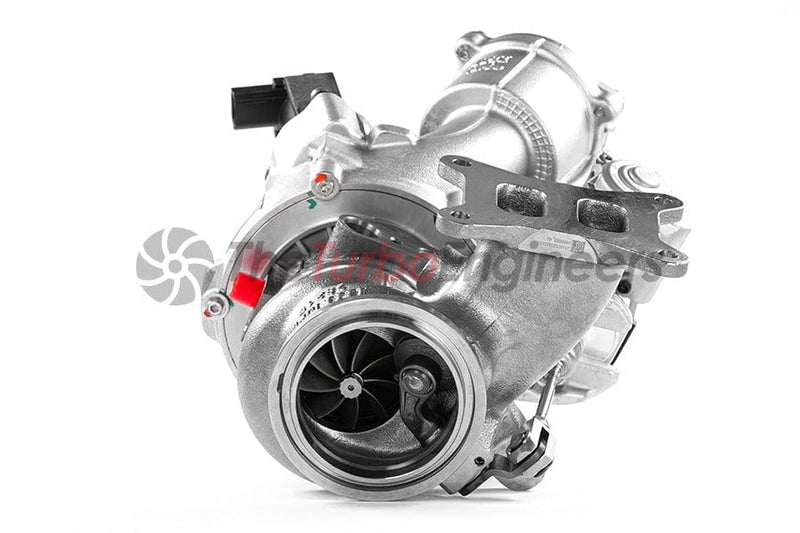

TTE555 5654 UPGRADE TURBOCHARGER VAG 2.0 / 1.8TSI EA888.3 MQB
TTE555 is our very latest hybrid performance upgrade turbocharger based on the IS38 turbocharger for the 3rd generation VAG 2.0TSI. Stage 3+ power, with good spool and response. We feel this is the strongest performing hybrid IS38 available on offer.
Engineered & Enhanced EA888 Gen 3 - IS38
To construct a TTE555 we change the original compressor and employ a far larger and more efficient billet wheel with extended tip technology and mill the compressor cover to the optimum gap to match the new compressor profile. We replace the original IS38 turbine and CNC mill the turbine housing to install a larger lightweight 9 blade turbine for greater gas flow. We also replace the original thrust bearing for TTE upgrade 360 deg that is made in-house.
We also fit our TTE CNC Billet silencer delete, removing any restriction and its function as a noise-canceling device, and so improving the flow & response and enhancing the sound.
The 9 Blade TTE turbine is a special turbine designed by TheTurboEngineers. Advantages are greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size.
Equilibrium
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled, and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.
Product Highlights:
- IS38 turbocharger as the base part
- TTE Billet Milled compressor 7+7 Blade 56mm Inlet
- TTE High-Flow Low- Mass 9 Blade Turbine 54mm Outlet
- TTE CNC Billet silencer delete
- Reinforced bearing pack
- Plug and Play installation as IS38 turbocharger
- 580PS+ proven
- Proven TheTurboEngineers Quality
- Single parts finely balanced then components assembled and core high-speed VSR balanced
- Supplied with a balance test result document
- Software recalibration is required
- 1 YEAR TTE TROUBLE-FREE WARRANTY
- Made in Germany
Actuator Selection: Please note on certain generations of cars there was a turbocharger actuator revision please select your correct type.
