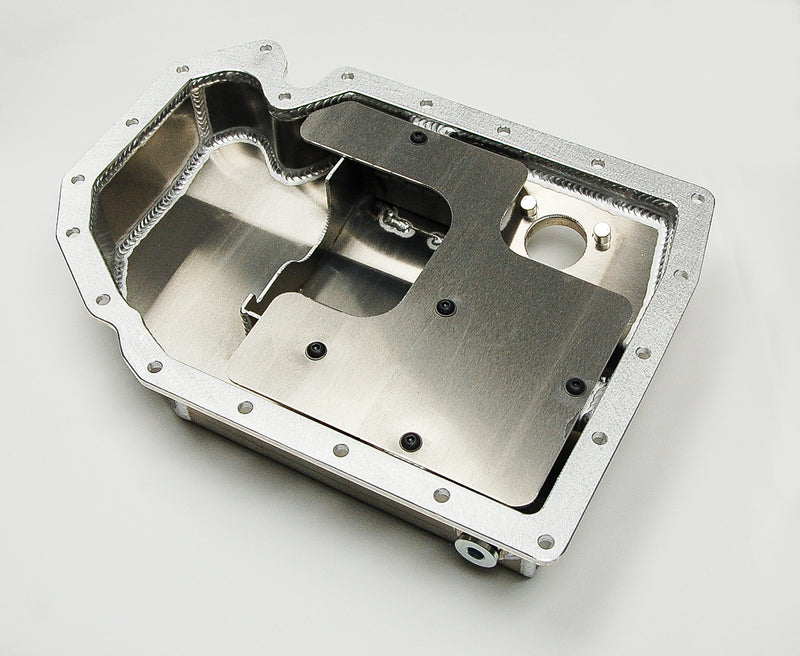

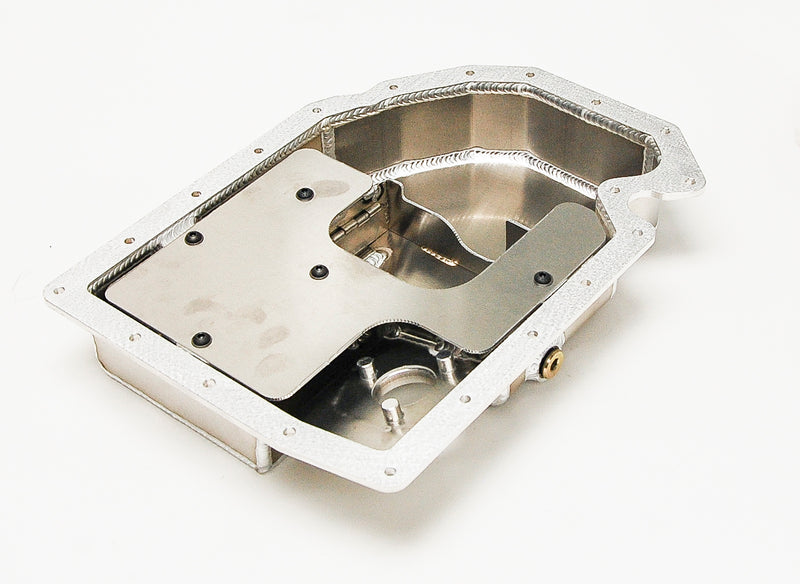

Baffled Aluminum Oil Pan

The iABED Industries Baffled Aluminum Oil Pan is designed to be a true baffled oil pan for all EA888 TSI engines.

Features:

• Full Aluminum construction.
• T6061 CNC Machined pan rail and oil level sensor provision plate
• Sheet Aluminum construction on outer body for longevity and resistance to corrosion.
• Complete baffle system that prevents oil from sliding up the walls of the crankcase through hard cornering.
• Trap door basket design that maintains oil around the OE pickup tube at all times making it the perfect addition for track racers, weekend warriors or even grocery getters!
• 0.3L increased oil capacity without raising the minimum height of the oil level.
• Provision for OEM oil level sensor
• ¾-16” Magnetic drain plug as standard
• Includes required shorter mounting bolts due to a thinner mounting flange than the factory plastic pan. (QTY 20)
