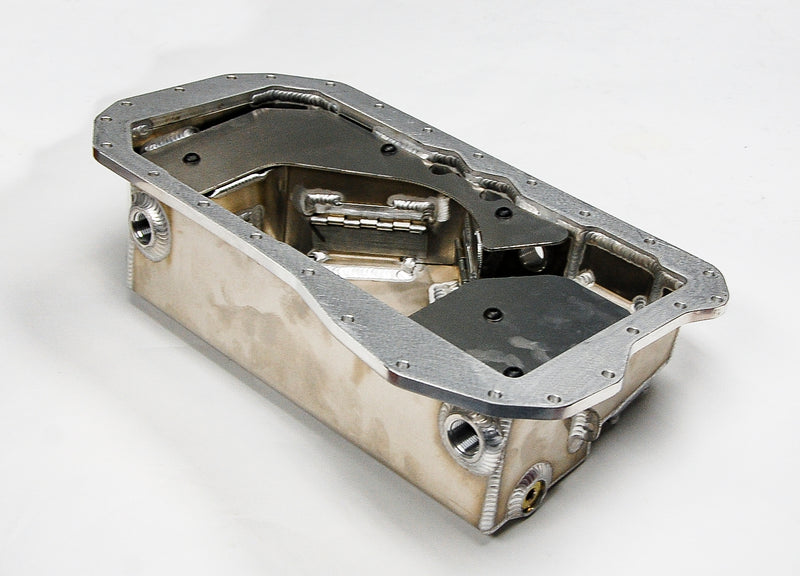

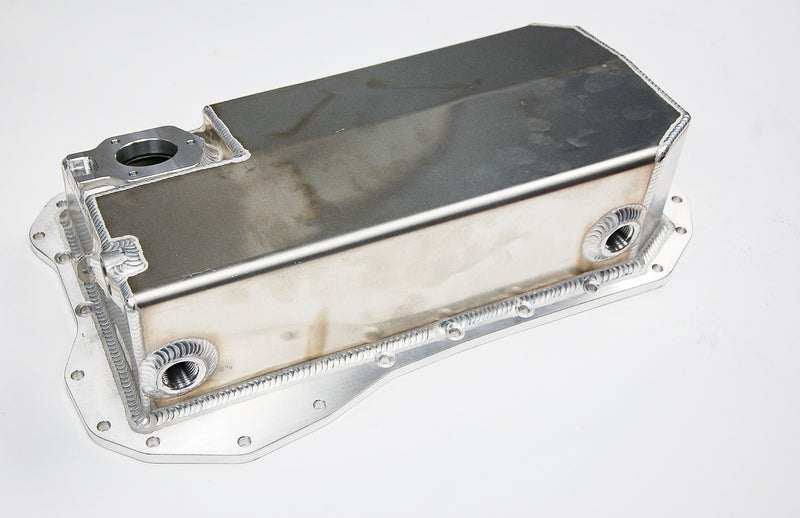

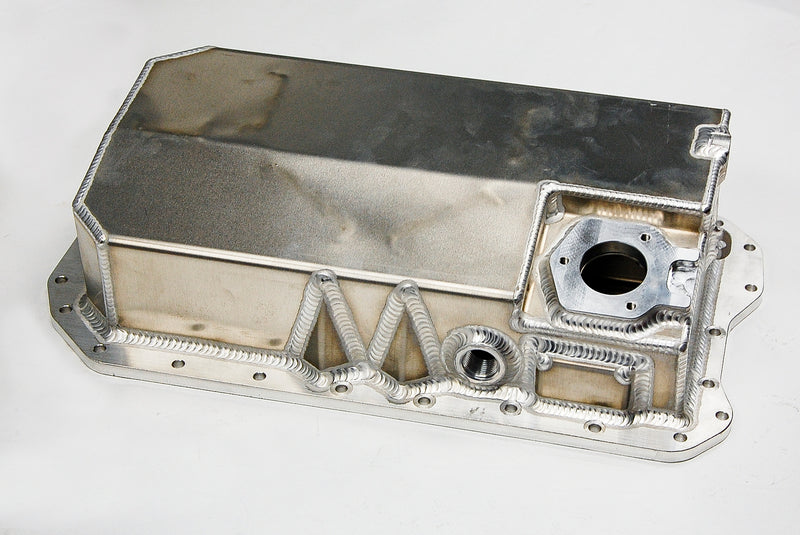

The ultimate baffled oil pan solution for your 2.8L & 3.2L VR6 engine.

Key features include:

  • Full aluminum construction.
  • T6061 CNC machined pan rail and oil level sensor provision plate.
  • Sheet aluminum construction for longevity and resistance to corrosion.

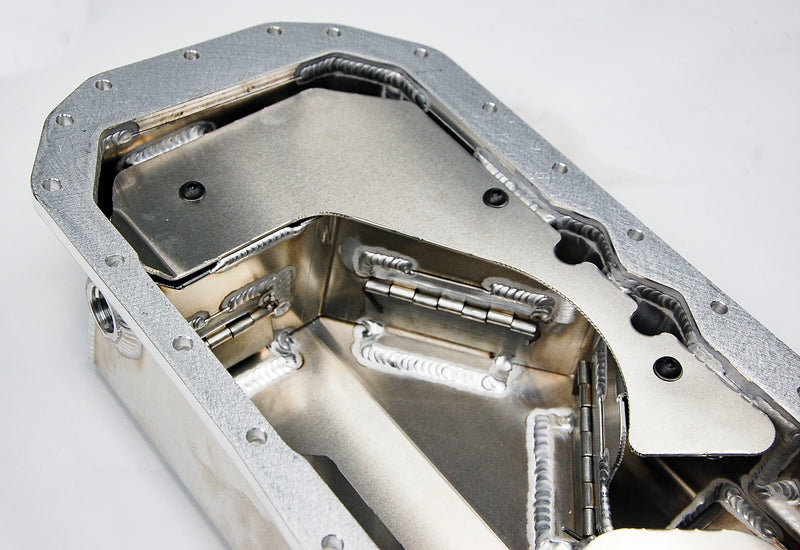

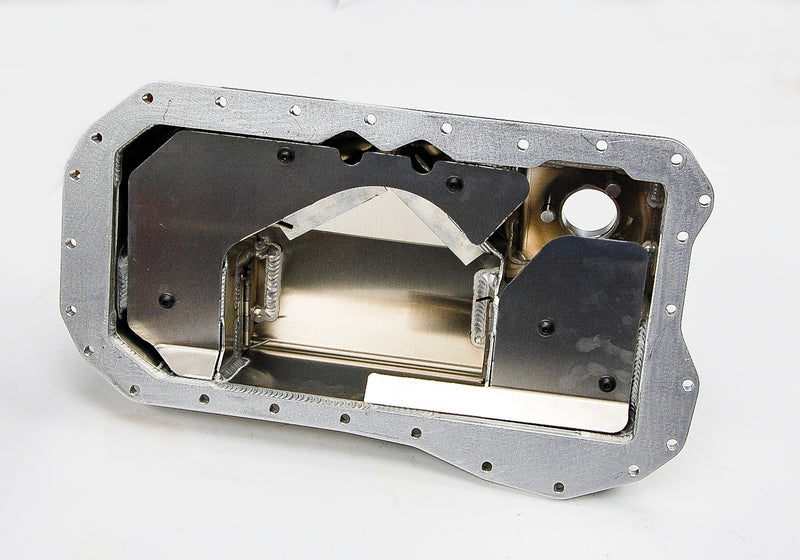

  • Complete baffle system preventing oil from sliding up the crankcase walls during hard cornering.
  • Trap door basket design maintaining oil around the OE pickup tube for optimal performance.
  • 0.8L increased oil capacity without raising the minimum oil level height.
  • Sits approximately 25mm closer to the pan rail compared to MK4 R32 and MK3 12V VR6 oil pan.
  • Requires the use of MK5 R32 oil pump (ES269534).

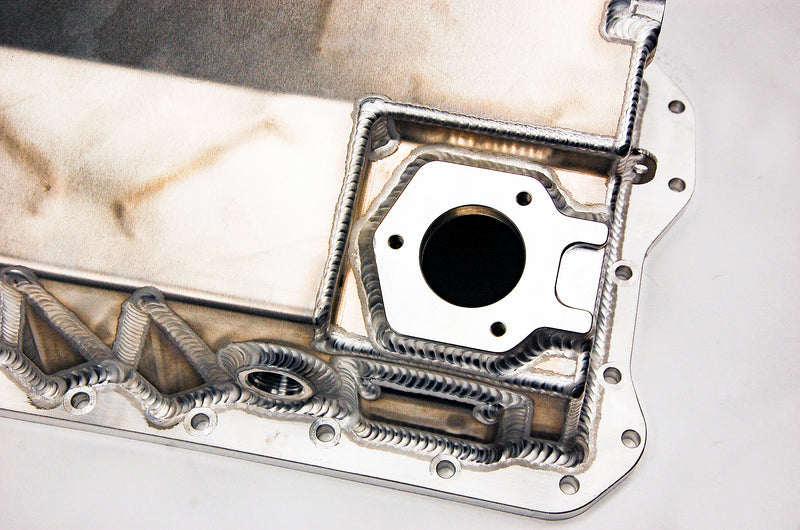

  • Provision for OEM oil level sensor.
  • Ā¾-16ā€ magnetic drain plug as standard.

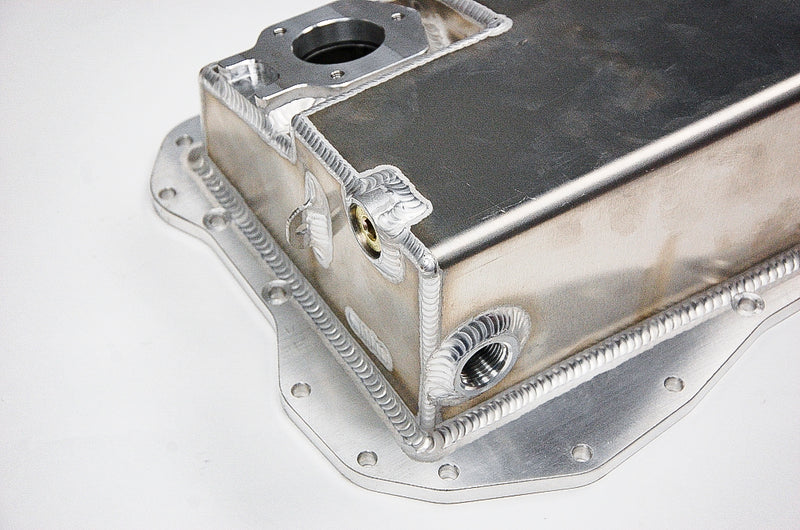

  • (3) 10-AN oil return ports for twin turbo, supercharger, or naturally aspirated applications.

Compatible with AAA, AFP & BJS motors along with others.

BUILD OF MATERIALS
PART NUMBER DESCRIPTION QUANTITY
- 2.8 & 3.2 VR6 Baffled Oil Pan 1
- 10-AN fitting (Choose your option) 3
- Bell housing cover plate 1
03G103707 Oil level sensor block-off plate 1
- Dirko 300Ā°C sealant 1
TOTAL 7

This part also goes by the following cross reference.

Cross Reference Part Number:

Fitment data is currently being updated for this part. Please contact us with your VIN to confirm compatibility.
