FABLESS
Availability:
Available to Order
This item is available to order and typically ships within 3-5 business days.
Availability:
Available to Order
This item is available to order and typically ships within 3-5 business days.
SKU 29-3235
$1,124.04 - $1,124.04
$1,124.04
$1,124.04 - $1,124.04
$1,124.04
Select Engine: 2.8L 12v VR6 - Trans 02M
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 5620 points to redeem on future purchases. Check your points.

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

The Fabless VR6 02M Complete Mount Kit provides a solution to install any VR6 Engine with an 02M MK4 Transmission in a MK3.

The Fabless MK3 VR6 02M/02Q Complete Mount Kit is a full mount solution, providing an upgraded front cross member and all the mounts needed for the swap. Made from mild steel, beautifully TIG Welded and coated with black powder coat for durability.

Our mounts are stronger and stiffer than the factory mounts while also providing some adjustability on the Block Mount. The block mount has two positions; factory height (top position) & a 16mm drop with MK3/Corrado VR6 Subframe (lower setting). The lower setting on the mount is useful for additional hood clearance but it also helps to level out the engine appearance without impacting the axle fitment.

These mounts keep the engine in OEM position, which means 02M axles on the market are compatible. These mounts will have the typical factory VR6 lean on the top block mount setting and less lean on the lower setting.

NOTE: The subframe cup has to be moved to clear the inner CV on the 02M transmission.

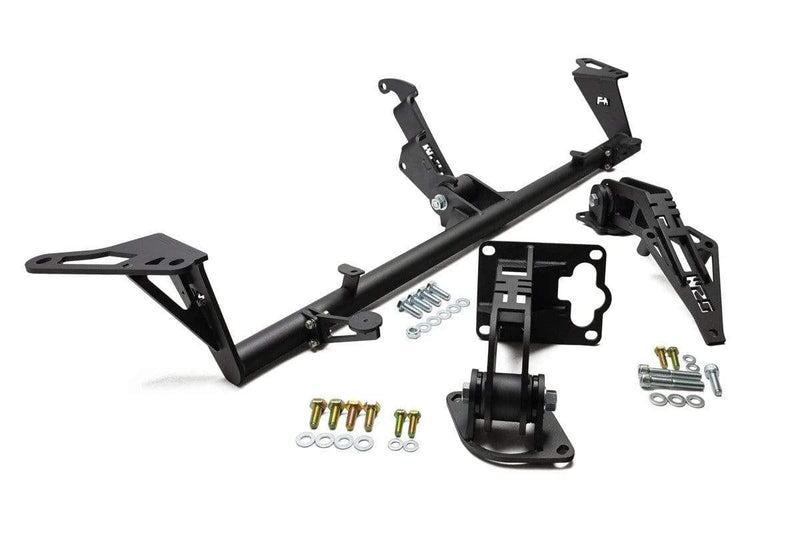

What’s Included

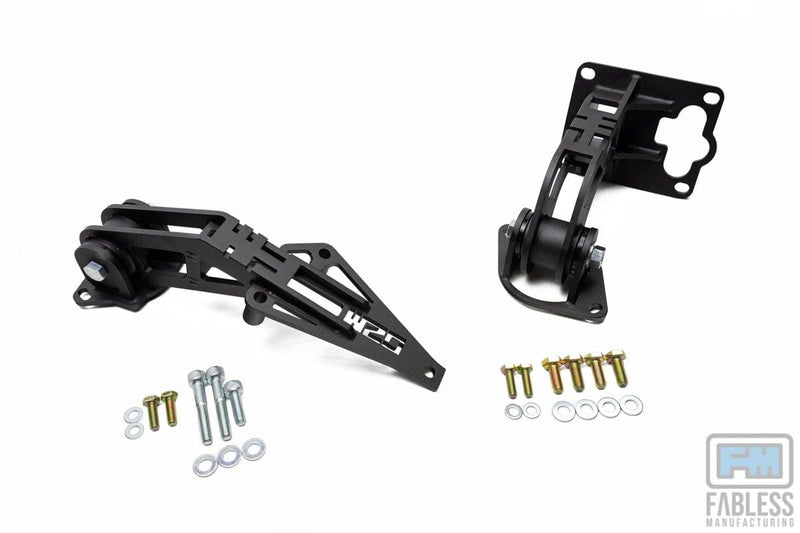

  • VR6 Block Mount with subframe Perch

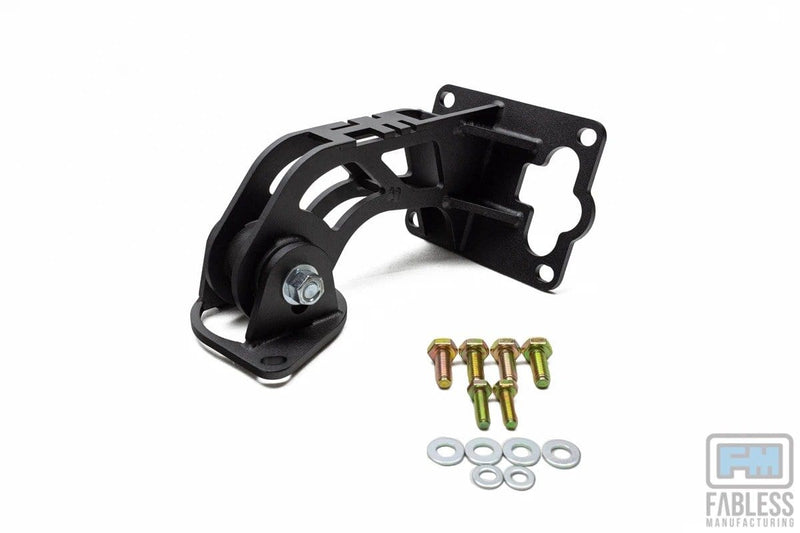

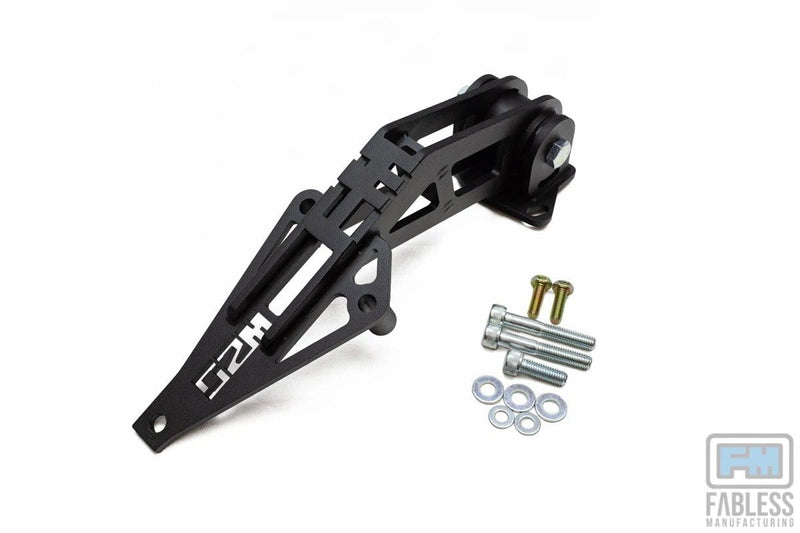

  • 02M MK4 Transmission Mount with subframe Perch
  • MK3 Tubular Front Cross Bar with Front Engine Mount
  • Zinc plated mounting hardware
  • Polyurethane bushings
  • Black powder coat

Add-Ons/Compatible Products

  • Radiator Mount Kit - VW MK3 (radiator bushings)
  • Polyurethane Jack Pad

Compatibility

Vehicles

  • VW MK3 Golf/Jetta

Engines

  • 2.8L 12v VR6
  • 2.8L 24v VR6
  • 3.2L VR6
  • 3.6L VR6

Transmissions

  • 02M/02Q MK4 6-Speed FWD/AWD

Axles

  • 02M Compatible Axles (not included)

Radiators

  • Compatible with North American and European Rad supports and radiators.

Fans

A factory fan set up will work, however if space or engine cooling is a concern, a slim fan set up with Spal fans is recommended. Check out our Engine Cooling dropdown under Swap Parts.

This part also goes by the following cross reference.

Cross Reference Part Number:

Fitment data is currently being updated for this part. Please contact us with your VIN to confirm compatibility.
