Fabless Tubular Control Arms (Heim) - Mk3 VW | VR6

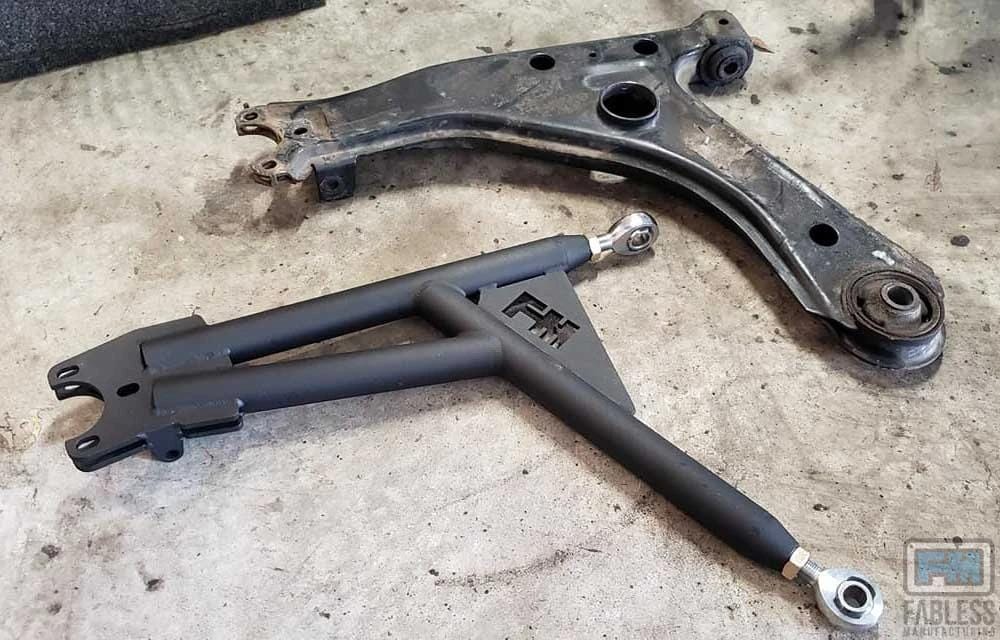

Our Tubular Control Arms are a perfect direct replacement for MK3 VR6 Golf/Jetta factory control arms. They maintain factory mounting locations and length while utilizing the factory sway bar, and they are lighter than the original control arms.

These tubular control arms reduce joint play and increase stiffness, enhancing steering response, overall handling, and tire contact during cornering and hard acceleration.

Our Heim Tubular Control Arms are ideal for performance enthusiasts. They offer maximum performance gains due to the stiffness and rigidity of the mount but come with increased road feedback and noise typical of heim joints. They are best suited for race applications or vehicles not driven in winter road conditions. Additionally, the heim arms prevent the rear bushing from popping out on lowered vehicles.

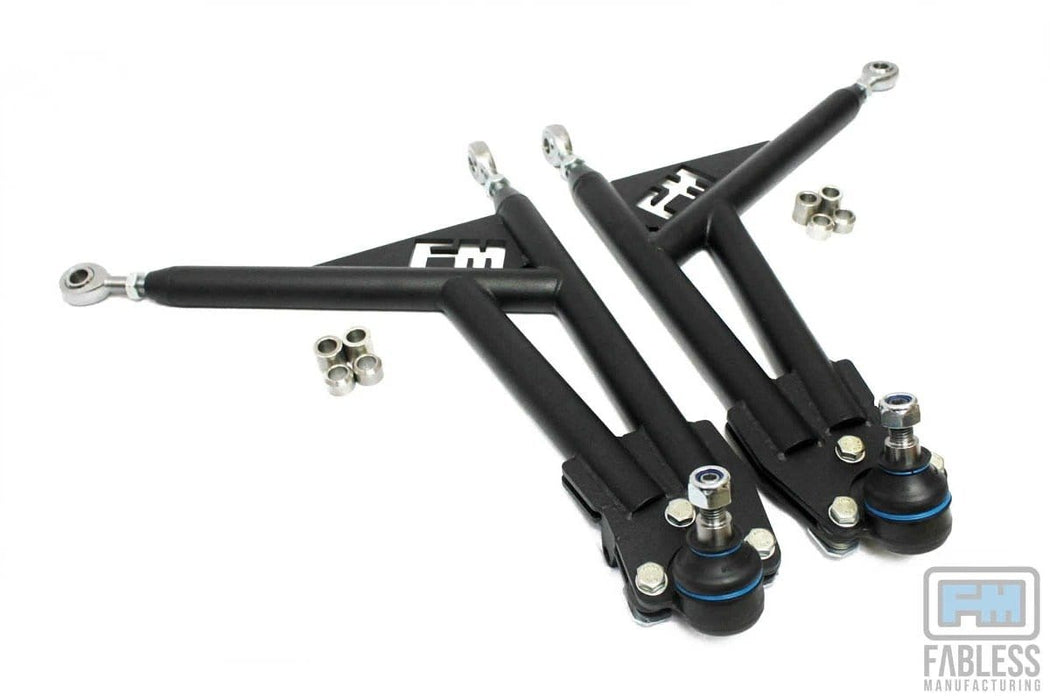

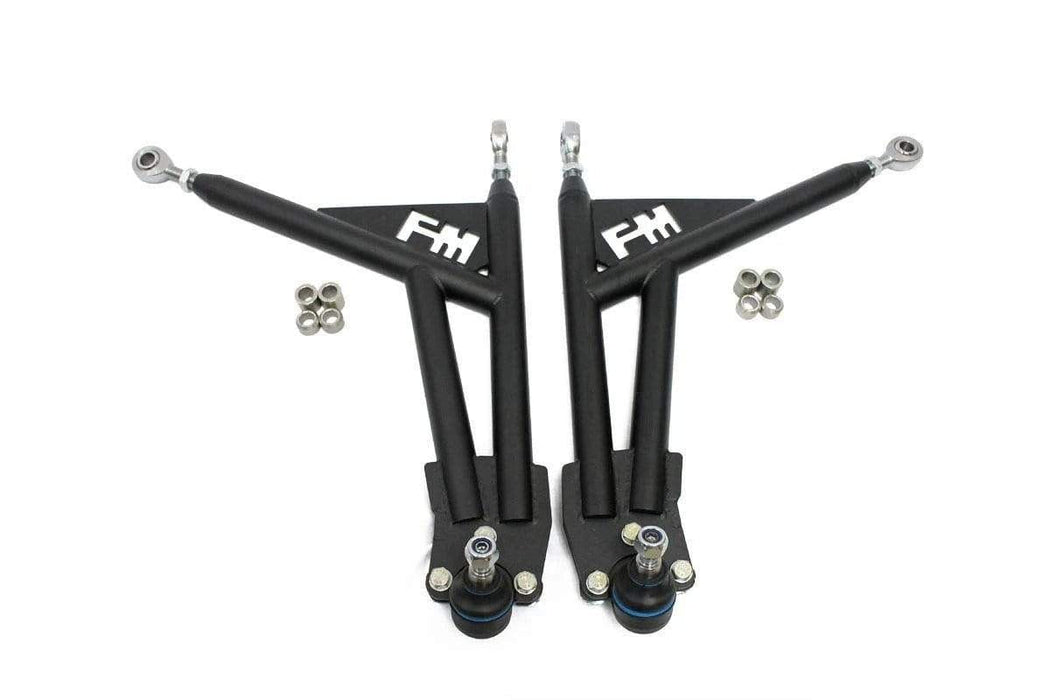

This listing includes a pair of control arms (left and right).

Details

• Black powder coat included with sandtex finish
• Direct replacement (bolt-in) for factory MK3 VR6 Control Arms
• Includes factory mounting location for sway bar end links

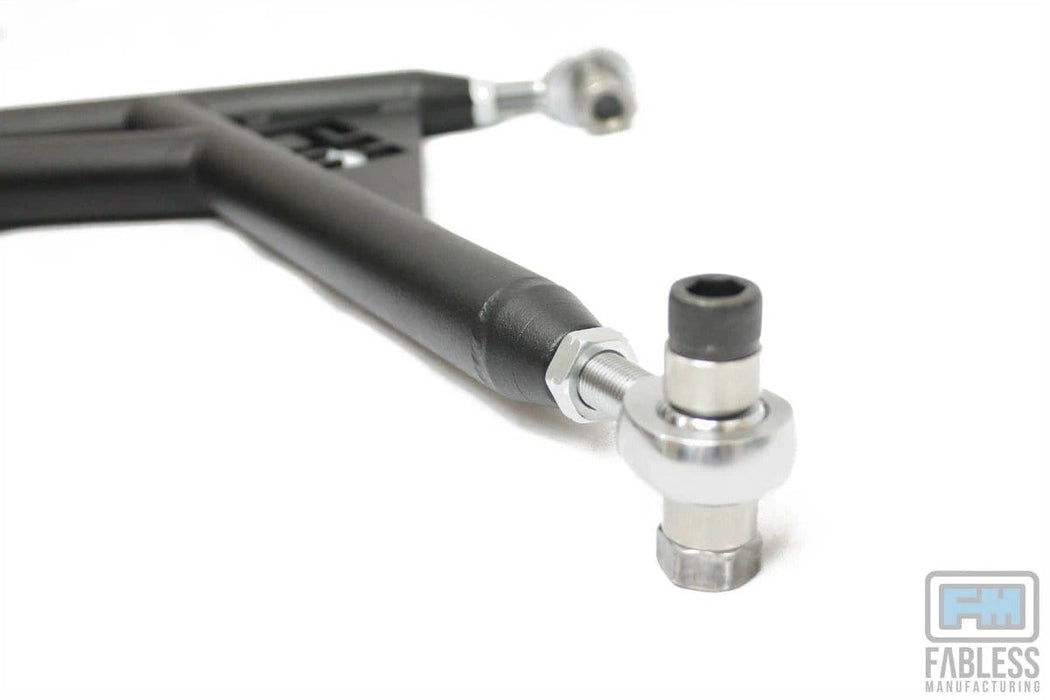

• Chromoly Heim Joint Ends with PTFE lining
• DOM tubing and TIG welded

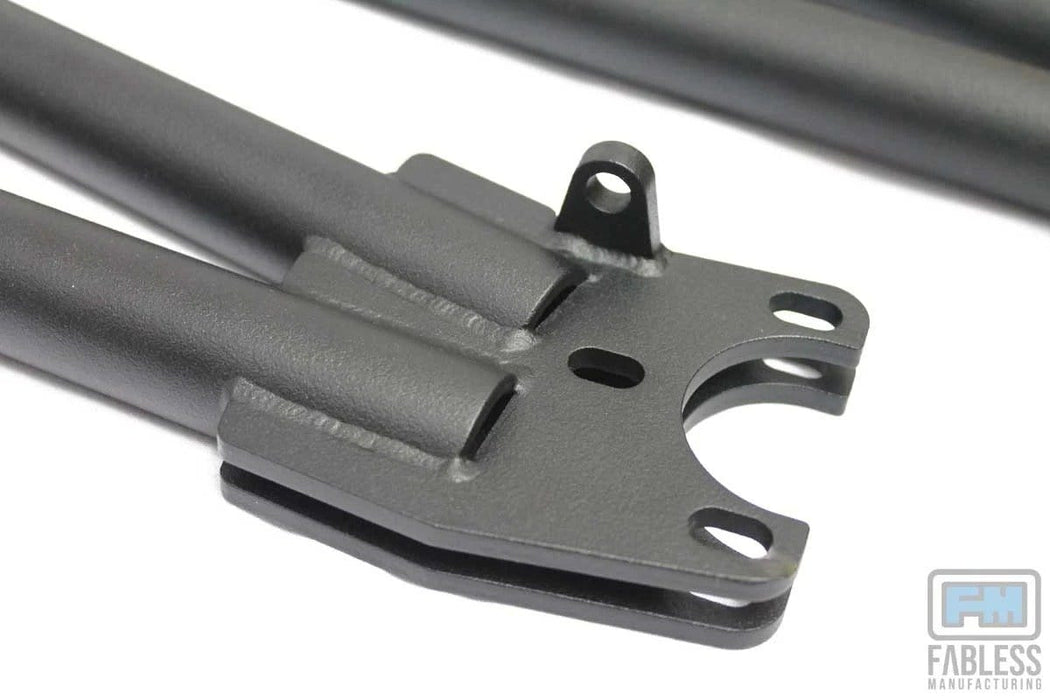

• Ball joint is secured between two mounting plates instead of one for added security

Compatibility

Vehicles

• MK3 VR6 Golf/Jetta
• Corrado VR6

Spindle Type

• MK3 VR6 factory spindles

Application

The heim arms provide increased suspension articulation and are recommended in static or dynamic applications. They are suitable for lowered and ultra low application and also are a better choice when maximum articulation is a must.

Add Ons

• MK3 VR6 Ball Joints
• MK3 VR6 Sway Bar End Links

Improve handling and control – Order yours today!
