CTS Turbo FRONT Subframe Bushing Insert Kit: MK5/MK6/8P Audi A3 with ARP Bolts

CTS Turbo FRONT Subframe Bushing Insert Kit: MK5/MK6/8P Audi A3 with ARP Bolts

CTS TURBO

Stock: Direct Ship ℹ️ This item ships directly from our supplier and is subject to availability.

SKU CTS-HW-036-ARP
$139.99 - $139.99
$139.99
$139.99 - $139.99
$139.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

CTS Turbo is proud to announce our new billet subframe bushing insert kit (applications listed below).  This kit is designed to eliminate the clunk that is commonly found on MK5's and MK6's due to the stretching of OEM bolts stretching and failing.  Our kit will repair the OEM TSB for the clunk correctly by reducing the large factory tolerances at the subframe mounting points.


Features:

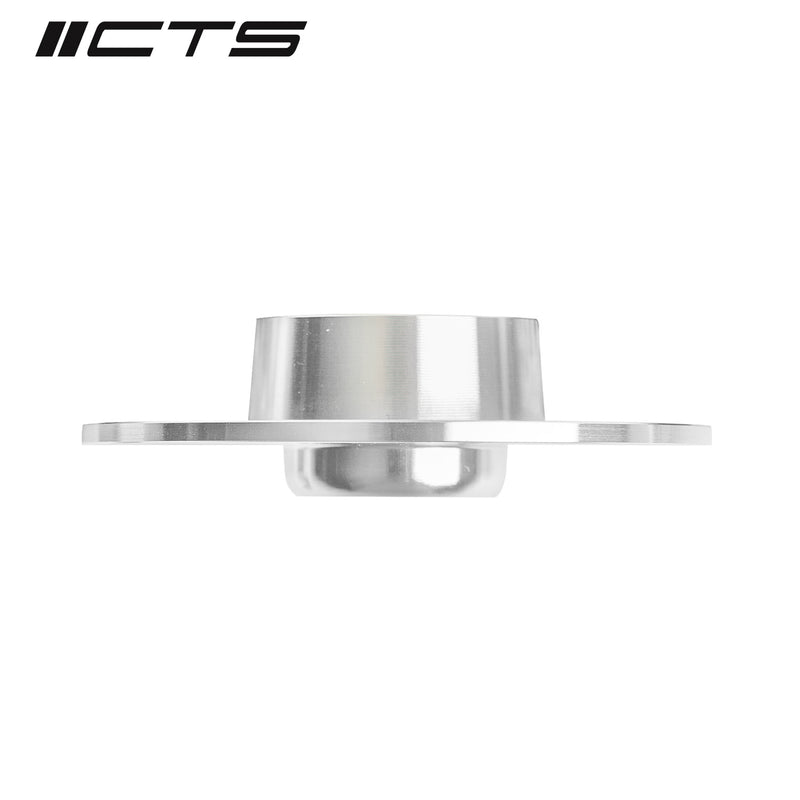

  • Interlocking subframe shims center the front subframe to the body

  • Machined in house from T6061 Billet aluminum

  • OE replacement stretch bolts (4) and upgraded ARP bolts (2)

  • Eliminates subframe clunks and shifting

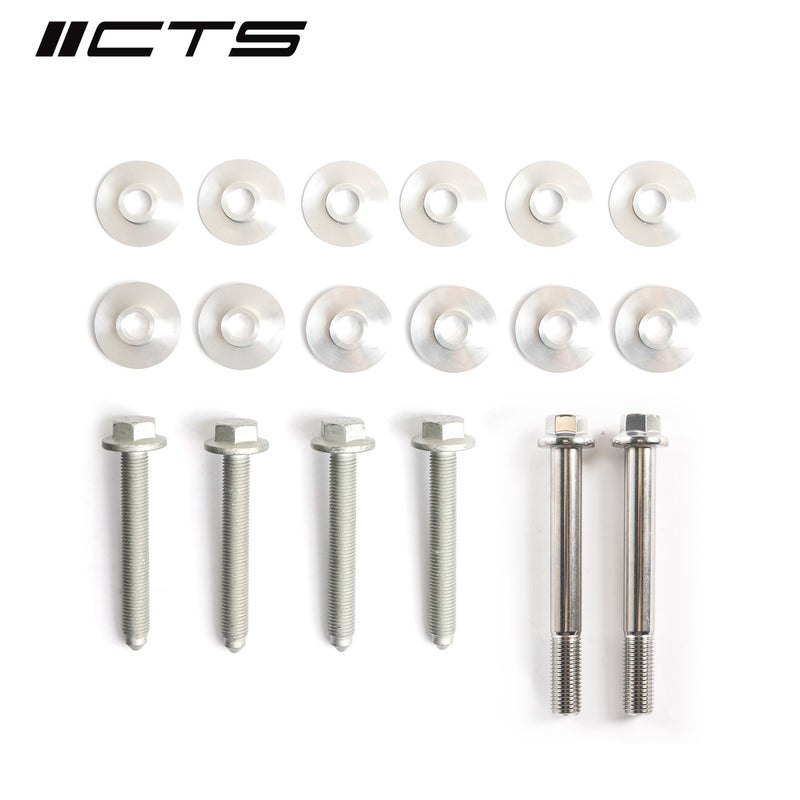

Kit Components:

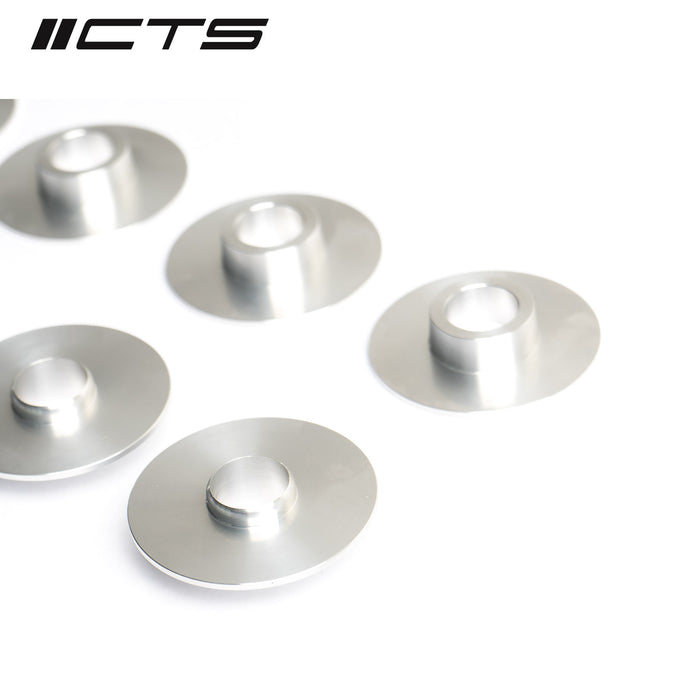

  • 6 x Upper Insert

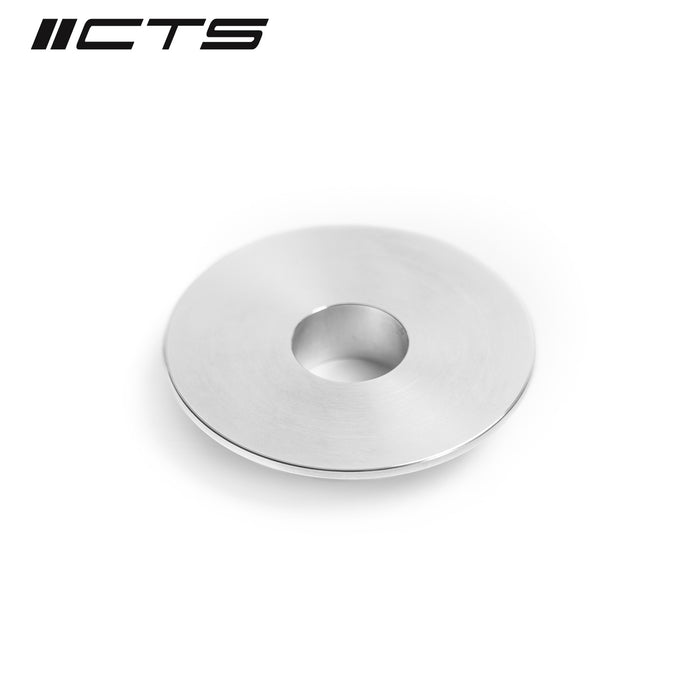

  • 6 x Lower Insert

  • 4 x Short OE Bolts

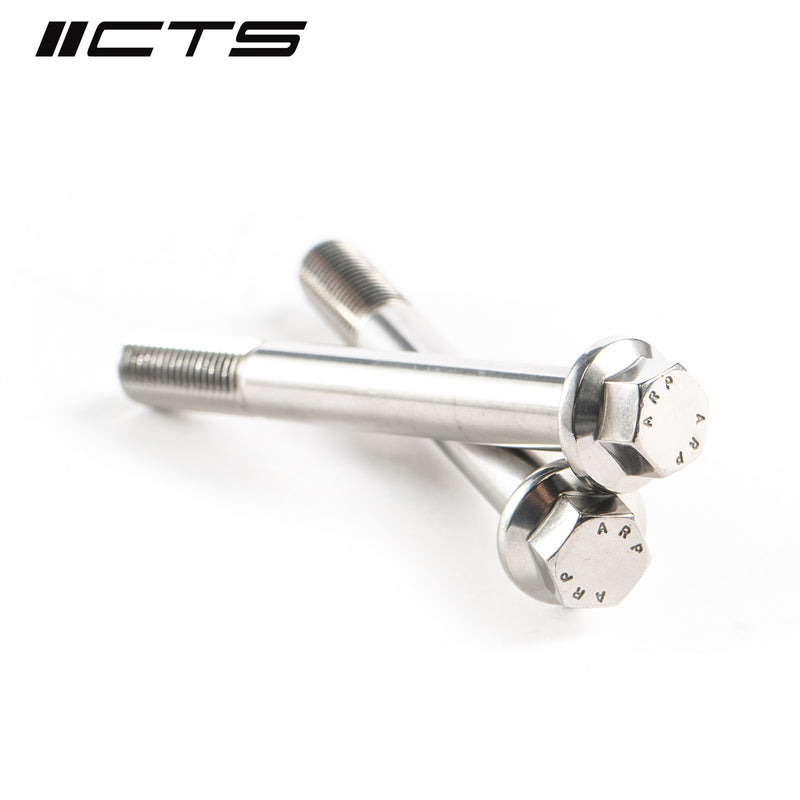

  • 2 x  ARP Long Bolts


Torque specs:

  • ARP bolts = 85Nm (can be re-used)

  • 18mm bolts = 70Nm+180deg (do not re-use)

  • 16mm bolts = 50Nm + 90deg (can be re-used once)

  • 13mm bolts = 20Nm + 90deg (can be re-used once)


Fitment:

  • MK5 GTI/GLI/R32/Jetta/Rabbit

  • MK6 GTI/Golf R/Golf - Aluminum Subframe only, will not fit Jettas with steel subframe

  • 8P Audi A3/S3

  • B6 Passat/Passat CC


Note: wheel alignment required after installation.



This part also goes by the following cross reference.

Cross Reference Part Number:
