Mini Disc Brake Pad and Rotor Kit – Front and Rear (294mm/259mm) (Xtra) (Low-Met) 34116858652

Mini Disc Brake Pad and Rotor Kit – Front and Rear (294mm/259mm) (Xtra) (Low-Met) 34116858652

BREMBO

Stock: Out of Stock ℹ️ This item is currently unavailable. Check back later.

SKU 4058720KIT
Sold out
$459.99 - $459.99
$459.99
$459.99 - $459.99
$459.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

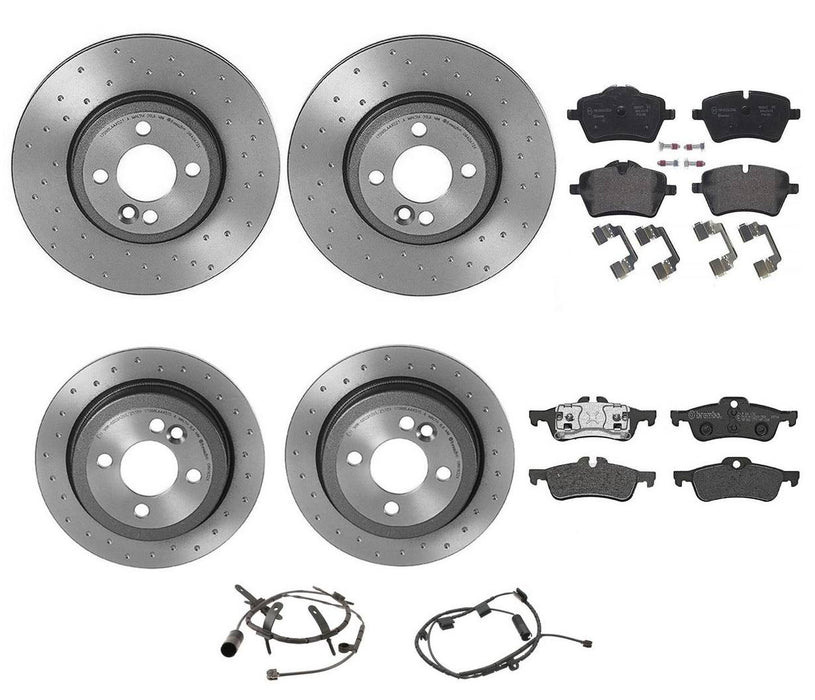

Kit Includes:

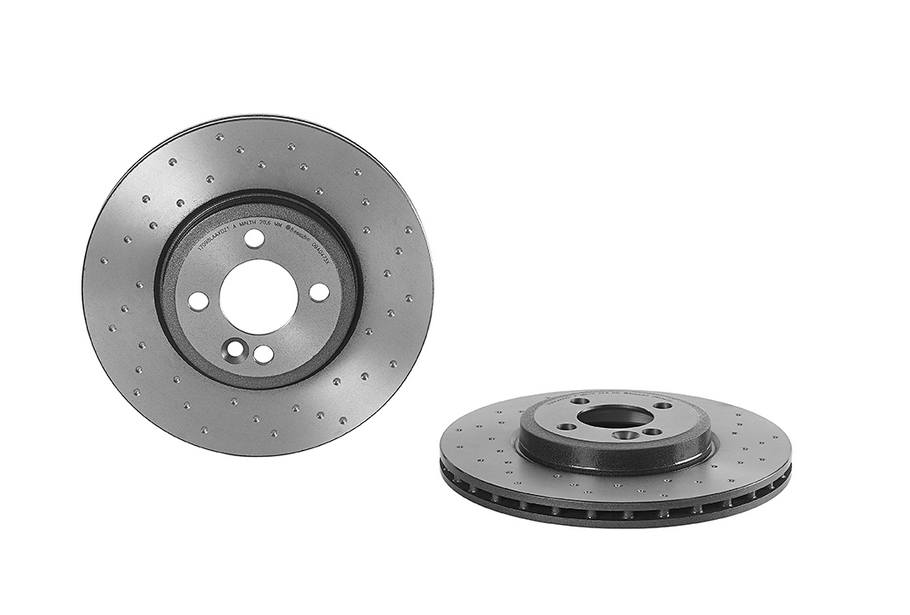

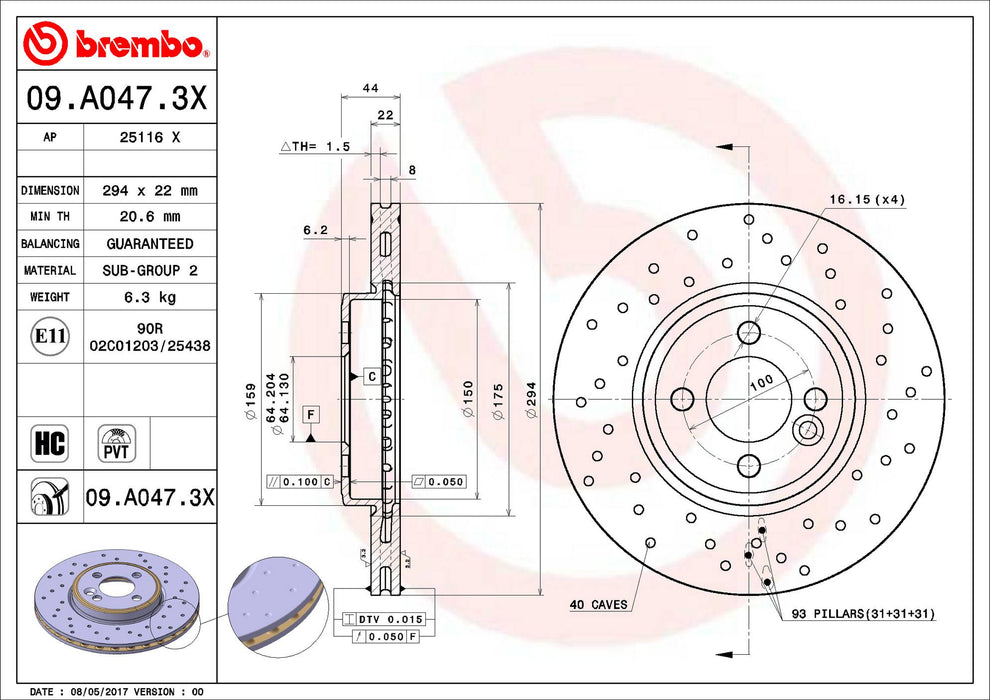

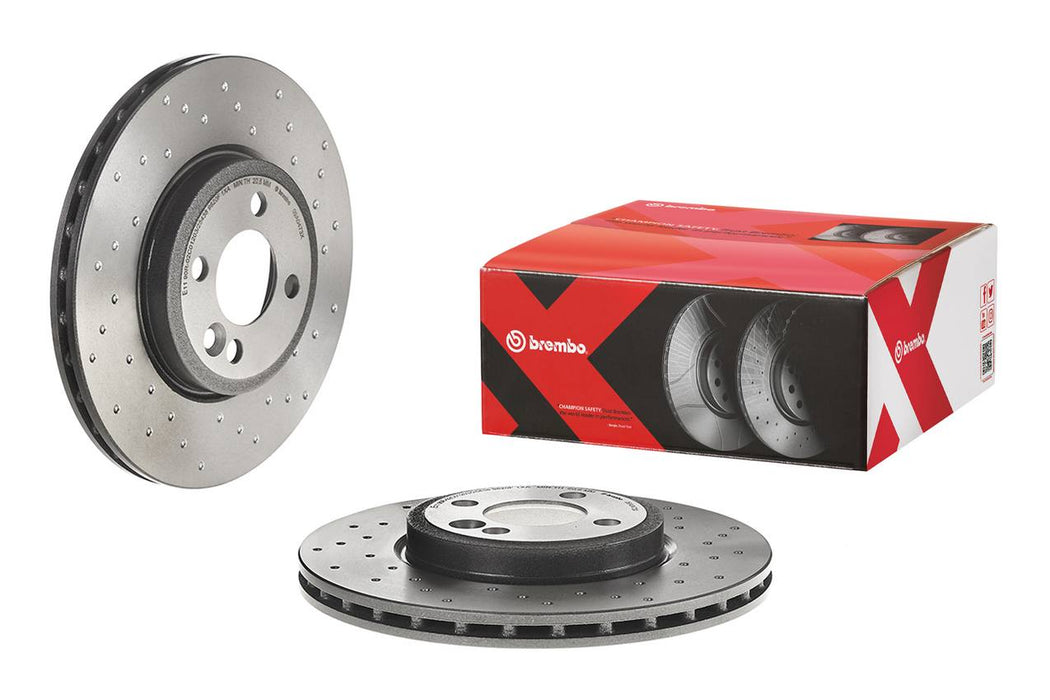

2 x Brembo 09.A047.3X Front Disc Brake Rotors Xtra - Drilled,Pillar Vented, High Carbon, Coated, 294mm

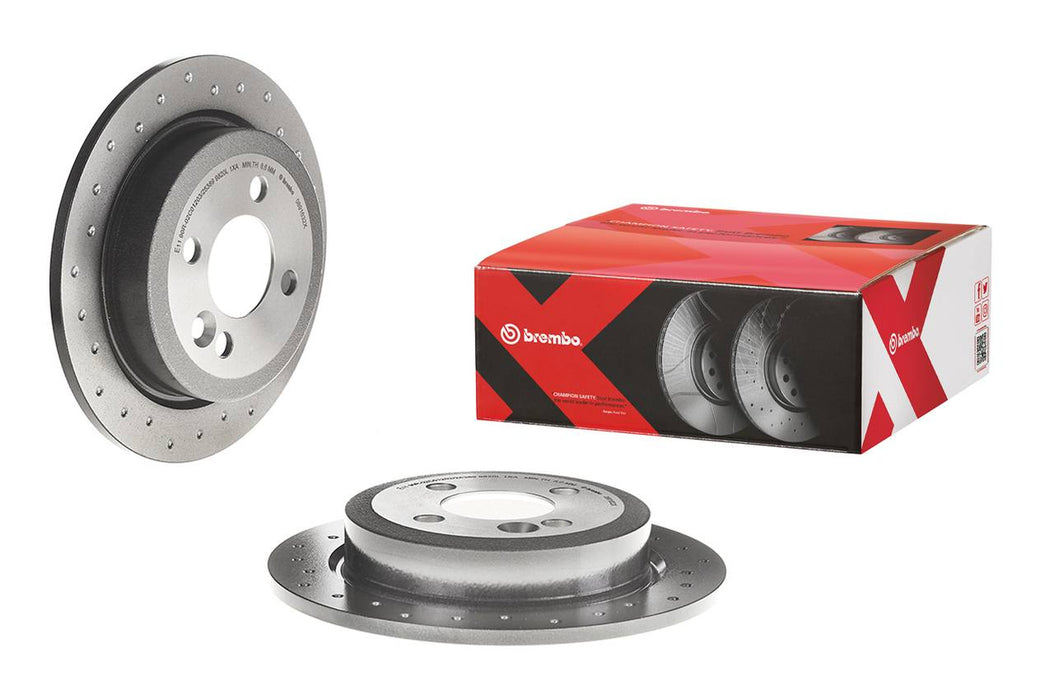

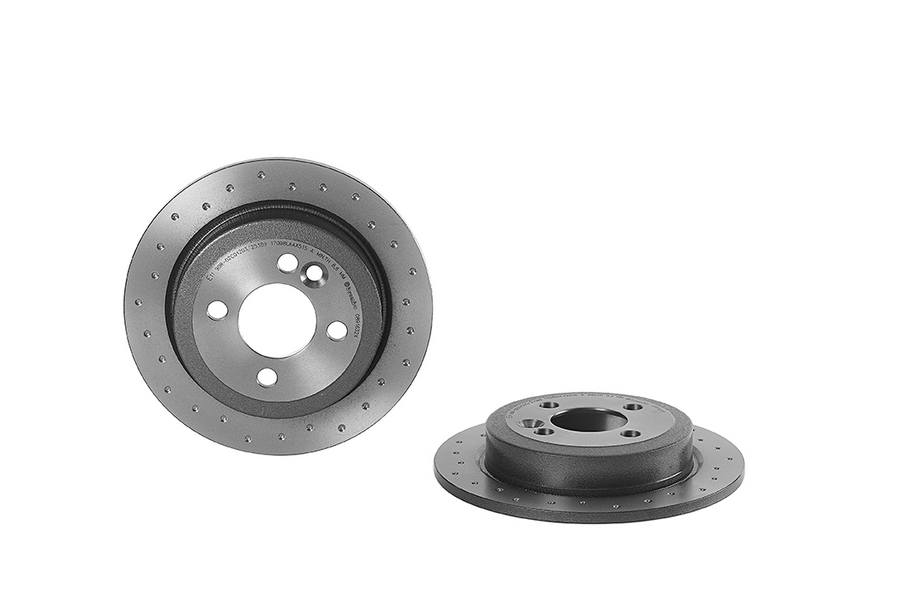

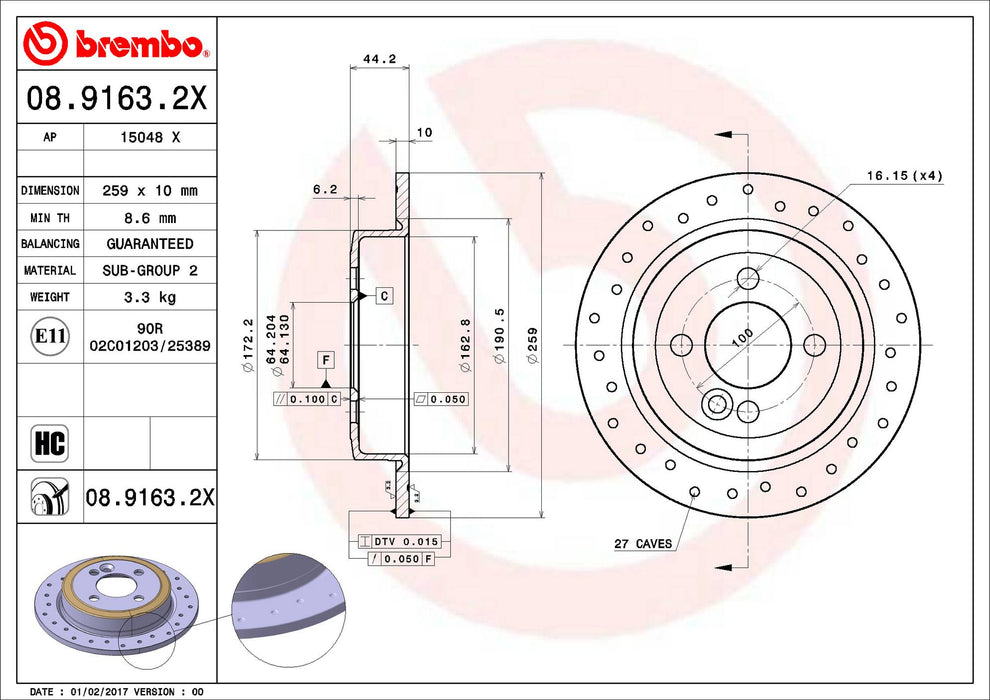

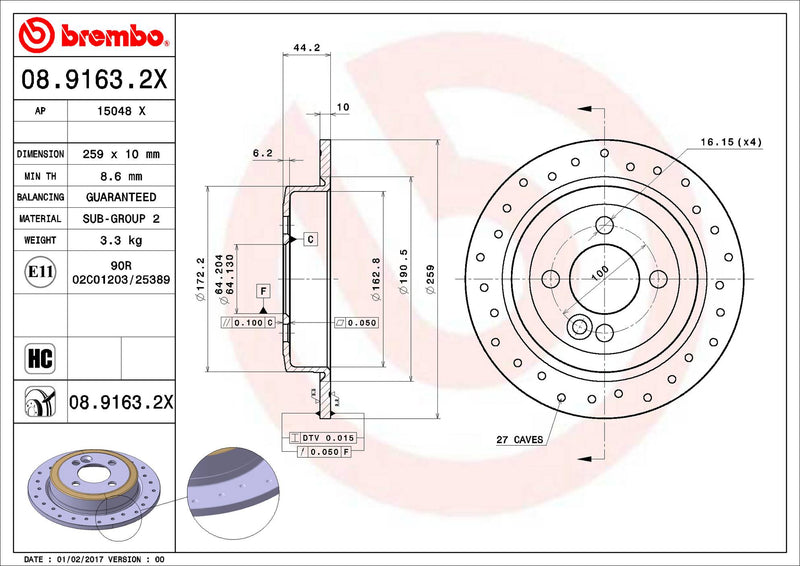

2 x Brembo 08.9163.2X Rear Disc Brake Rotors Xtra - Drilled, High Carbon, Coated, Solid, 259mm

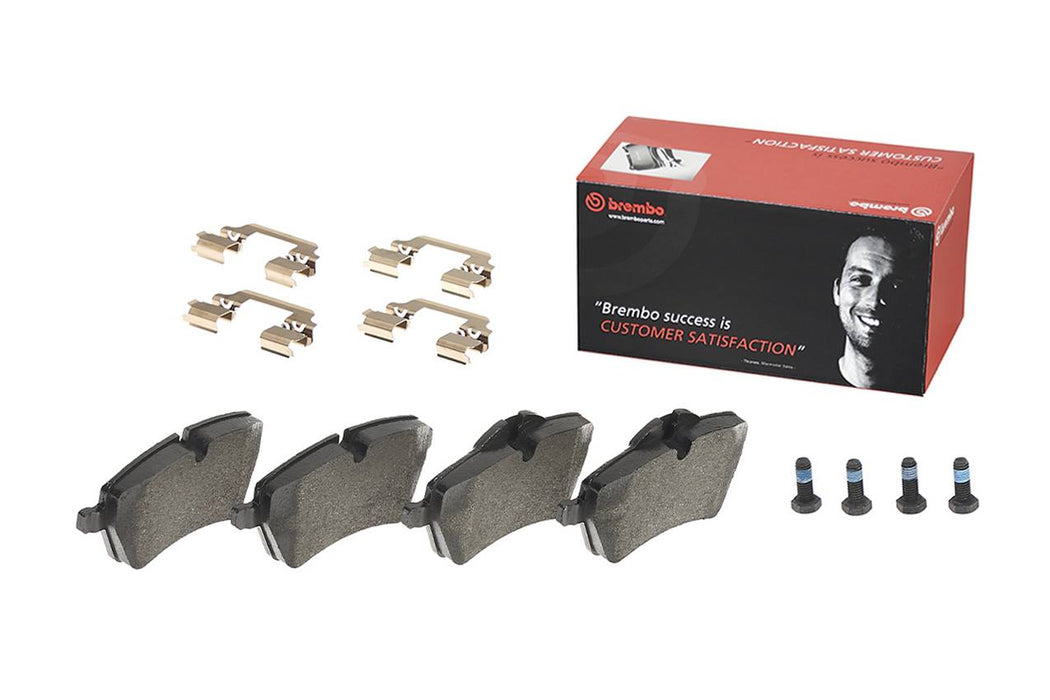

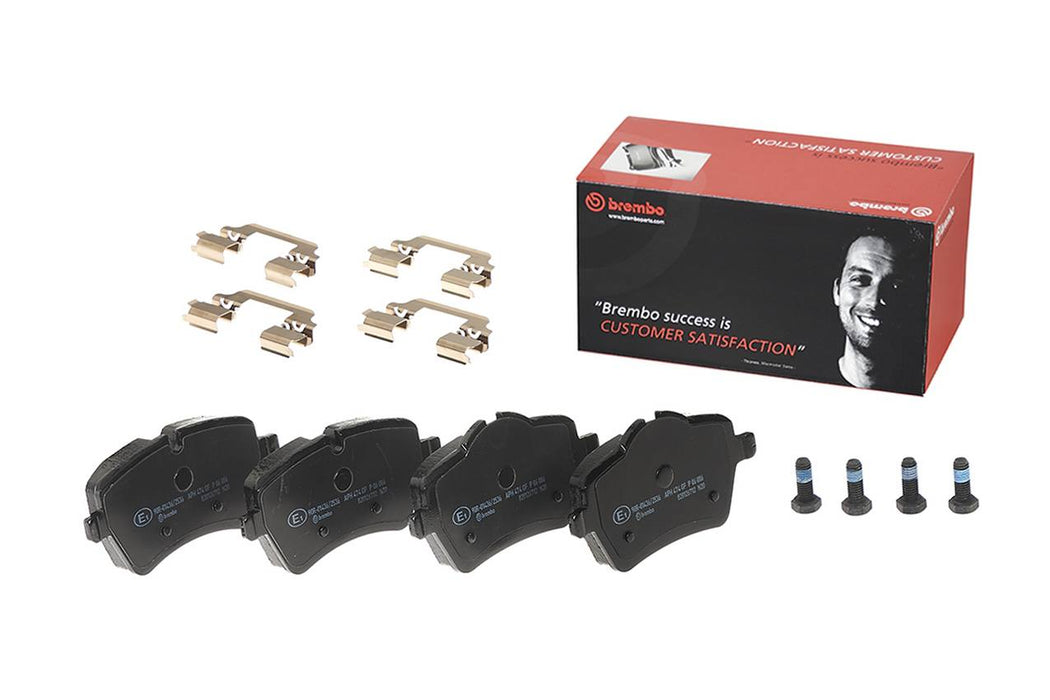

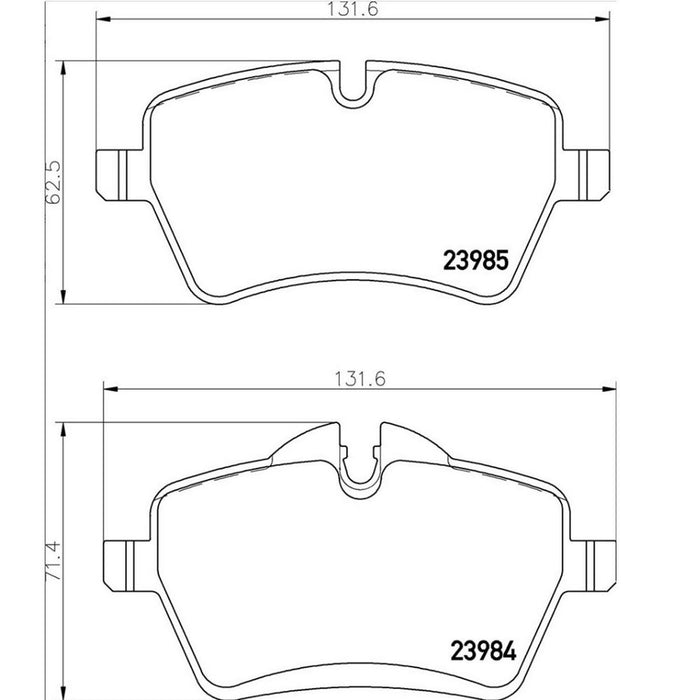

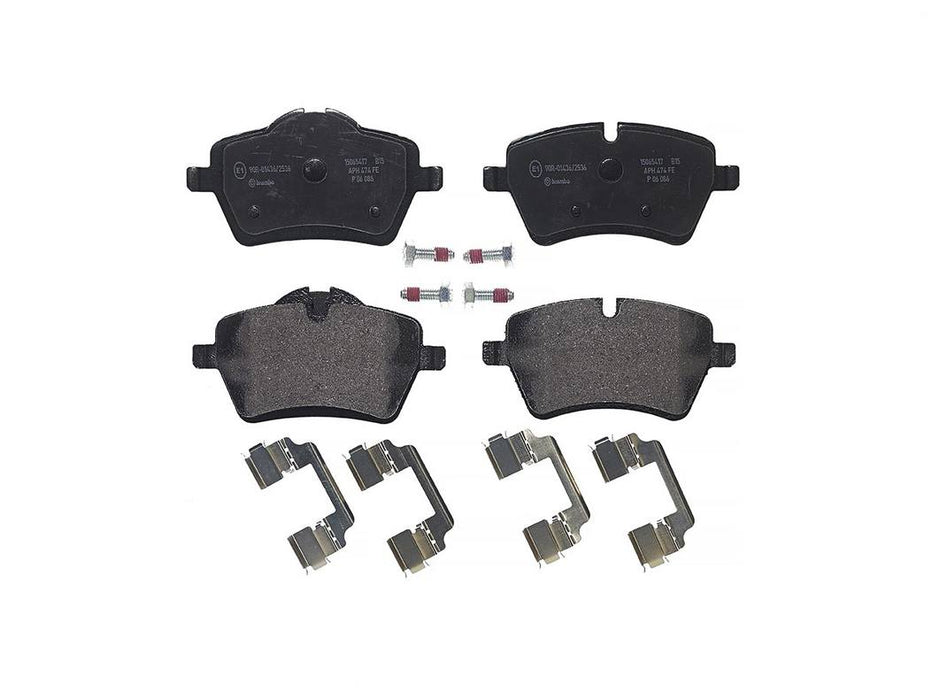

1 x Brembo P06086 Front Disc Brake Pad Set Low-Met

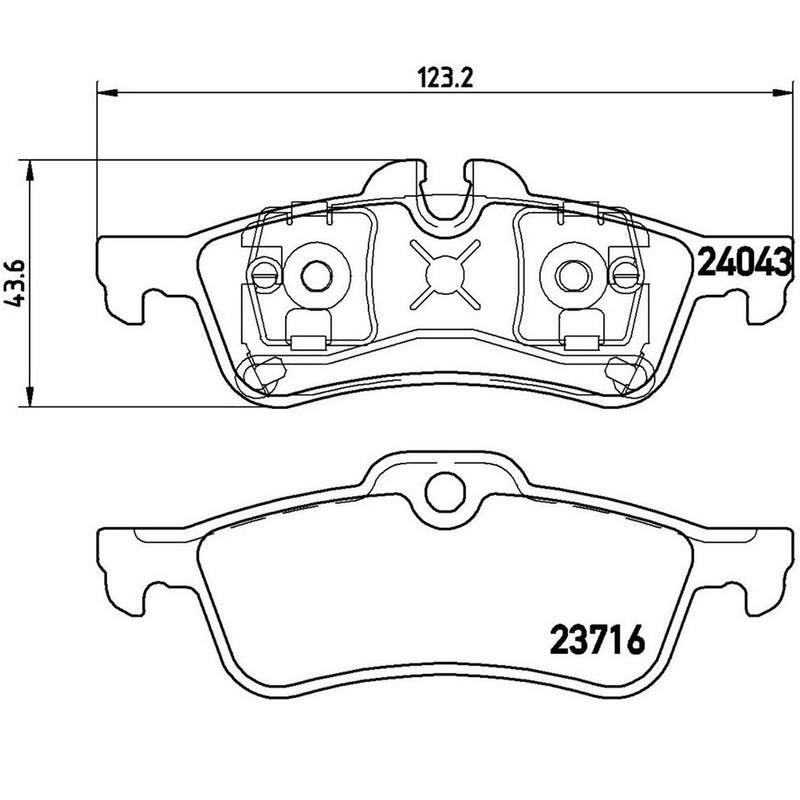

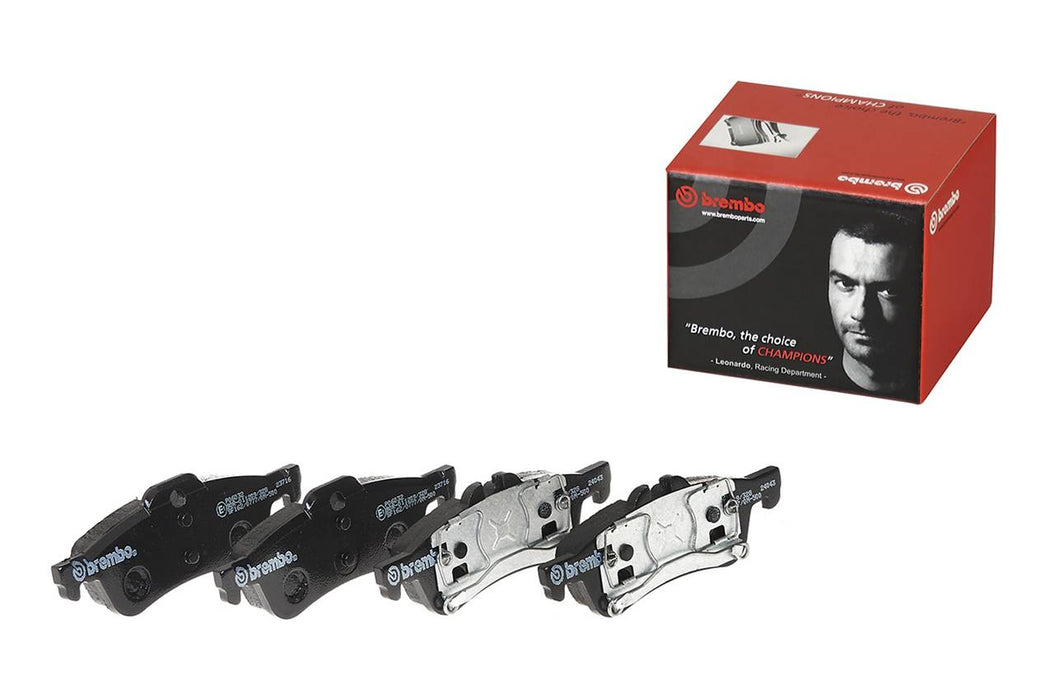

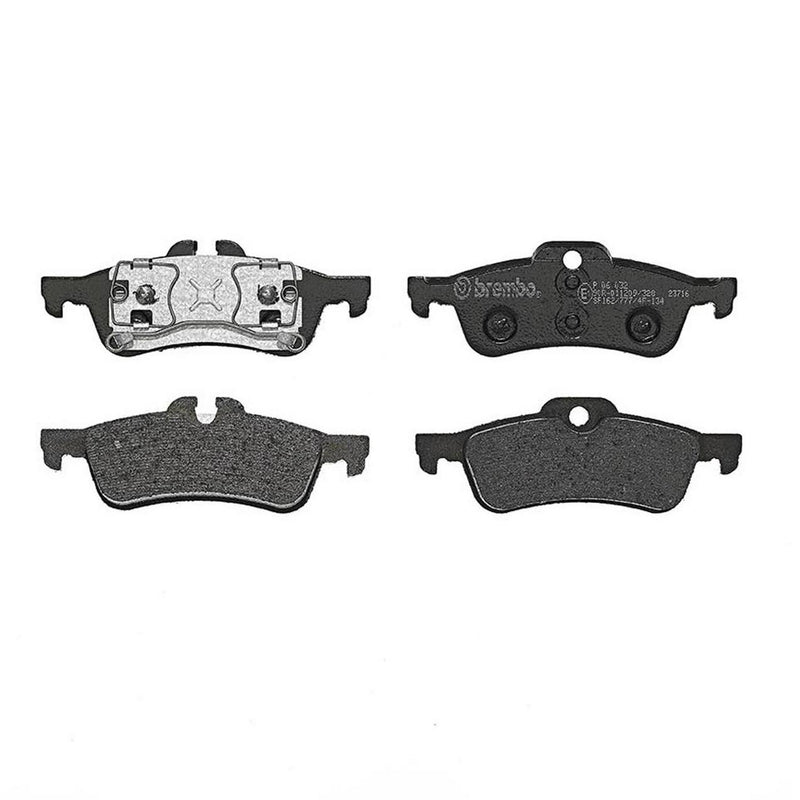

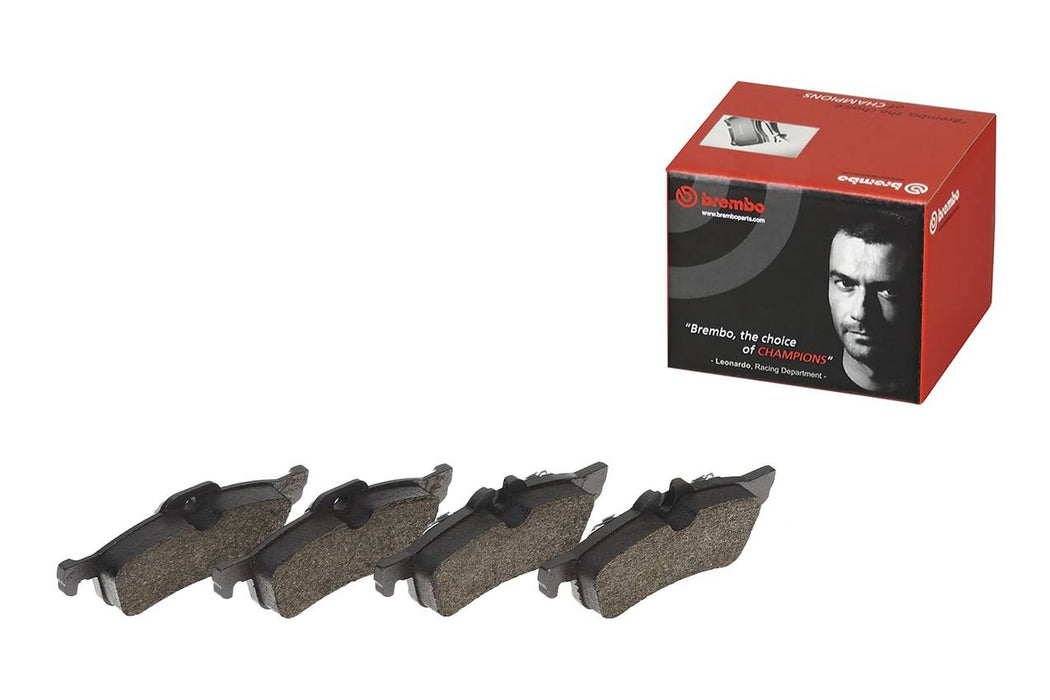

1 x Brembo P06032 Rear Disc Brake Pad Set Low-Met

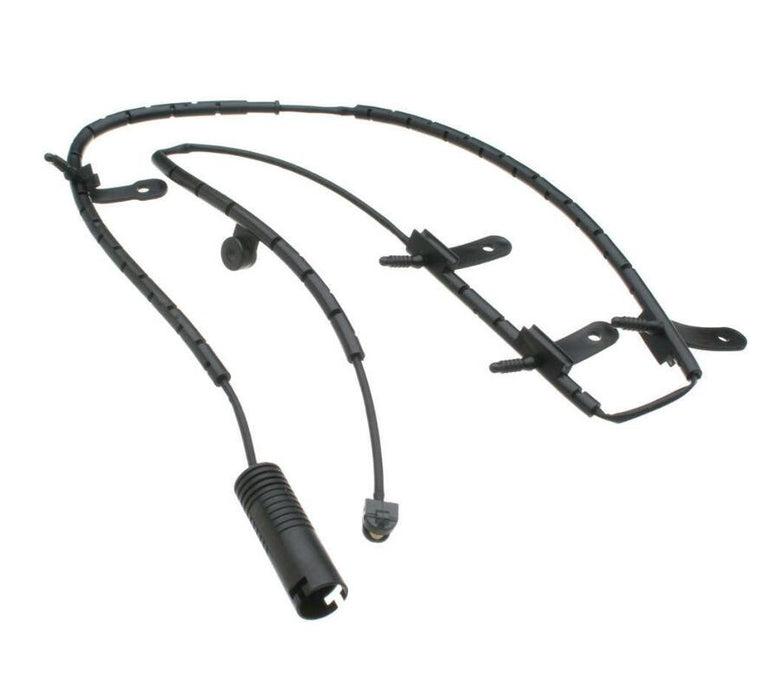

1 x eEuroParts XHBM039 Rear Disc Brake Pad Wear Sensor

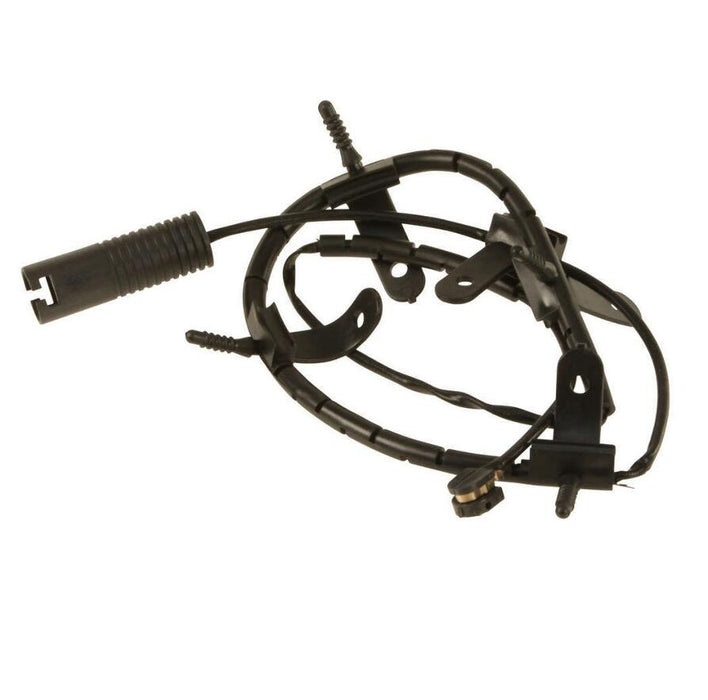

1 x eEuroParts XHBM038 Front Disc Brake Pad Wear Sensor

Brake System (Front Pads) Lucas
Brake System (Rear Pads) Teves
Braking Surface (Front and Rear Rotors) Drilled
Centering Diameter (MM) (Front Rotors) 64.1
Centering Diameter (MM) (Rear Rotors) 64
Features (Front Pads) with hardware, and brake caliper screws
Friction Material Composition (Pads) Low-Met
Height (MM) (Front Pads) 62.5 / 71.4
Height (MM) (Front Rotors) 44.1
Height (MM) (Rear Pads) 43.6
Height (MM) (Rear Rotors) 44
Material (Front Rotors) High Carbon
Material (Rear Rotors) High Carbon
Minimum Thickness (MM) (Front Rotors) 20.4
Minimum Thickness (MM) (Rear Rotors) 8.4
Nominal Thickness (MM) (Front Pads) 18
Nominal Thickness (MM) (Front Rotors) 21.9
Nominal Thickness (MM) (Rear Pads) 16.3
Nominal Thickness (MM) (Rear Rotors) 10
Number of Holes (Front Rotors) 4
Number of Holes (Rear Rotors) 4
Outside Diameter (MM) (Front Rotors) 294
Outside Diameter (MM) (Rear Rotors) 259
Pad Wear Sensor Included (Pads) Yes
Rust Resistant Coating (Front Rotors) UV Coated
Rust Resistant Coating (Rear Rotors) UV Coated
Solid Or Vented Type Rotor (Front Rotors) PVT
Solid Or Vented Type Rotor (Rear Rotors) solid
Torque Spec(NM) (Front Rotors) 120
Torque Spec(NM) (Rear Rotors) 120
Wear Indicator (Front Pads) prepared for wear indicator
Wear Indicator (Rear Pads) prepared for wear indicator
Width (MM) (Front Pads) 131.6
Width (MM) (Rear Pads) 123.2
Brand Part #
Brand Part #
Mini 34116774986
Mini 34119808705
Mini 34216770252
Mini 34116770251
Mini 34116858652
Mini 34216762871
Mini 34216774987
Mini 34119804735
Mini 34116778320

This part also goes by the following cross reference.

Cross Reference Part Number:
