Brembo Brake Pads and Rotors Kit – Front and Rear (294mm/259mm) (Ceramic)

Brembo Brake Pads and Rotors Kit – Front and Rear (294mm/259mm) (Ceramic)

BREMBO

Stock: Out of Stock ℹ️ This item is currently unavailable. Check back later.

SKU 1596657KIT
Sold out
$334.99 - $334.99
$334.99
$334.99 - $334.99
$334.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

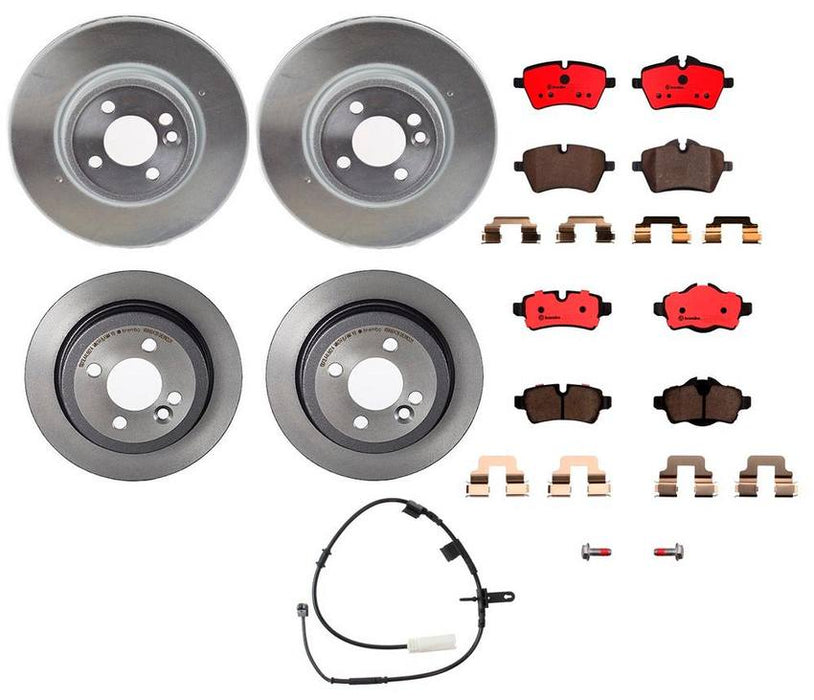

Kit Includes:

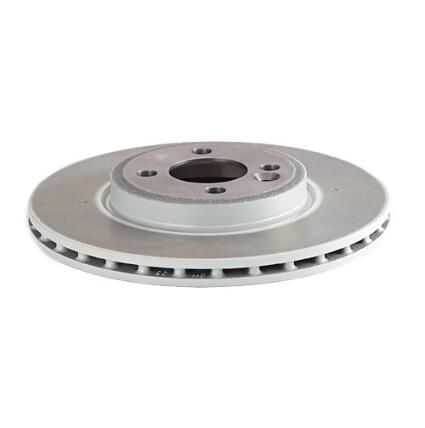

2 x Brembo 09.A047.31 Front Disc Brake Rotors

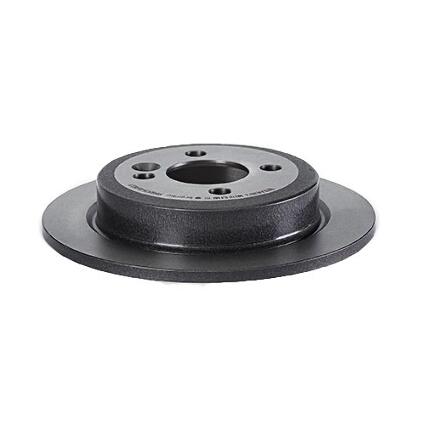

2 x Brembo 08.9163.21 Rear Disc Brake Rotors

1 x Brembo P06051N Front Disc Brake Pads Set

1 x Brembo P06052N Rear Disc Brake Pad Set

1 x eEuroParts XHBM075 Front Disc Brake Pad Wear Sensor

Abutment Clips Included Yes
Brake System (Front Pads) Lucas
Brake System (Rear Pads) Lucas
Coated ( Front Rotors ) Yes
Coated ( Rear Rotors ) Yes
Features (Front Pads) with hardware
Features (Rear Pads) with hardware
Friction Material Composition (Pads) Ceramic
Height (mm) (Front Pads) 64 / 71.7
Height (mm) (Rear Pads) 39.1 / 48.6
High Carbon ( Front Rotors ) Yes
Min TH (Discs)/Max Diameter (Drums) (mm) ( Front Rotors ) 20.4
Min TH (Discs)/Max Diameter (Drums) (mm) ( Rear Rotors ) 8.4
Nominal Thickness (mm) ( Front Rotors ) 21.9
Nominal Thickness (mm) ( Rear Rotors ) 10
Nominal Thickness (mm) (Front Pads) 18
Nominal Thickness (mm) (Rear Pads) 17
Outside Diameter (mm) ( Front Rotors ) 294
Outside Diameter (mm) ( Rear Rotors ) 259
Pad Wear Sensor Included (Front Pads) Yes
Pillar Vent ( Front Rotors ) Yes
Surface Finishing (Front Pads) chamfered
Surface Finishing (Rear Pads) chamfered & slotted
Wear Indicator (Front Pads) prepared for wear indicator
Wear Indicator (Rear Pads) prepared for wear indicator
Width (mm) (Front Pads) 131.7
Width (mm) (Rear Pads) 95.3
WVA (Front Pads) 23984 / 23985
WVA (Rear Pads) 24289 / 24290
Brand Part #
Brand Part #
Mini 34 11 6 770 251 / 34116770251
Mini 34 11 6 774 986 / 34116774986
Mini 34 11 6 778 320 / 34116778320
Mini 34 11 6 798 469 / 34116798469
Mini 34 11 6 858 652 / 34116858652
Mini 34 11 9 804 735 / 34119804735
Mini 34 21 6 774 987 / 34216774987
Mini 34 21 6 778 327 / 34216778327
Mini 34 21 6 794 059 / 34216794059
Mini 34 35 6 792 572 / 34356792572
Mini 34116770251
Mini 34116774986
Mini 34116778320
Mini 34116798469
Mini 34116858652
Mini 34119804735
Mini 34216774987
Mini 34216778327
Mini 34216794059
Mini 34356792572

This part also goes by the following cross reference.

Cross Reference Part Number:
