TR8969S Ball Bearing Turbocharger
TR8969S Ball Bearing Turbocharger
TR8969S Ball Bearing Turbocharger
TR8969S Ball Bearing Turbocharger
TR8969S Ball Bearing Turbocharger
TR8969S Ball Bearing Turbocharger
TR8969S Ball Bearing Turbocharger
TR8969S Ball Bearing Turbocharger
TR8969S Ball Bearing Turbocharger
TR8969S Ball Bearing Turbocharger

TR8969S Ball Bearing Turbocharger

TiALSport
Ships from Supplier
Ships from Supplier
Ships from Supplier
Ships from Supplier
Ships from Supplier
Ships from Supplier
Ships from Supplier
Ships from Supplier
Ships from Supplier
Ships from Supplier
Ships from Supplier
Ships from Supplier
Ships from Supplier
Ships from Supplier
Ships from Supplier
Ships from Supplier
SKU 008576
$2,395.00 - $2,944.00
$2,395.00
$2,395.00 - $2,944.00
$2,395.00

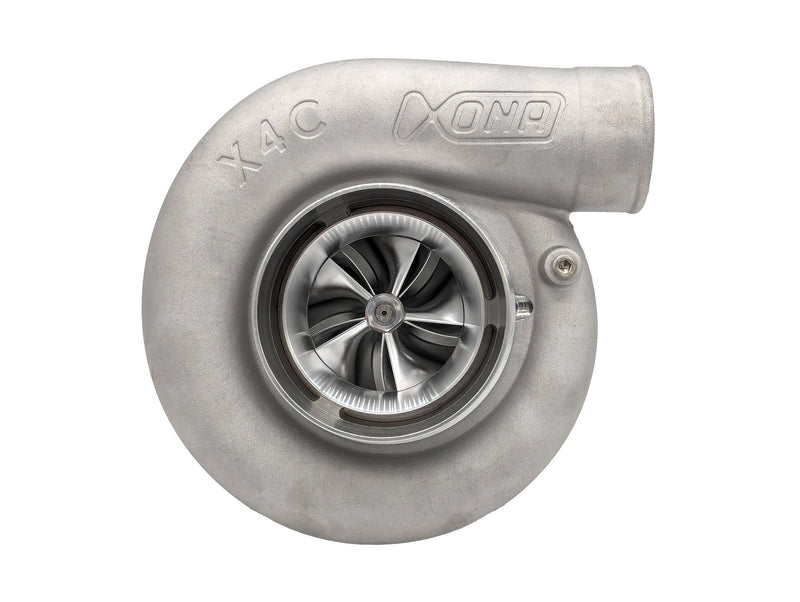

Compressor Cover Size: X4C

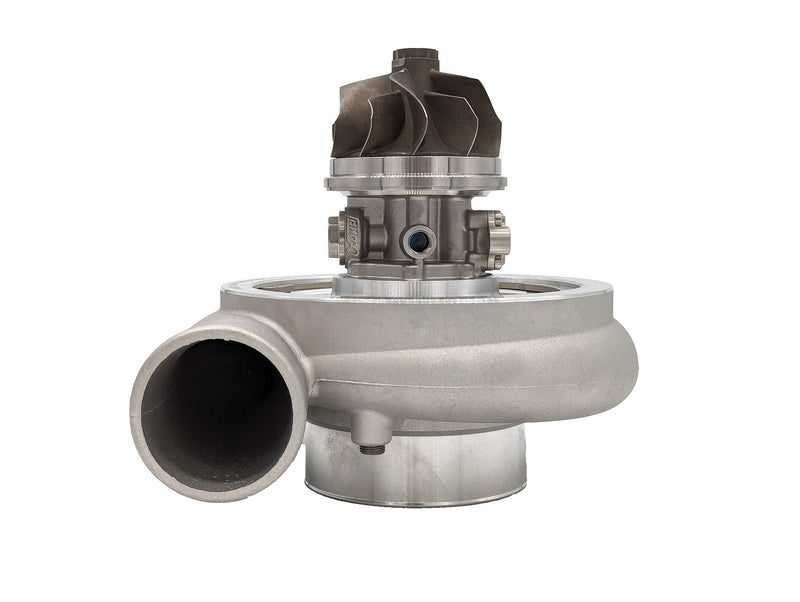

Turbine Housing: No Turbine Housing, Super Core Only
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 11975 points to redeem on future purchases. Check your points.

With the brand new Xona Rotor HTE aero, optimized for high pressure ratios and extreme shaft speeds!

Component Details

  • Compressor wheel - 64.9mm Inducer / 84.4mm Exducer.
  • Turbine Outlet - 69mm UHF™
  • 700-1000HP Applications.
  • Variable preload angular contact bearings.
  • Twin gas ring seals at the compressor and turbine.
  • High strength, lightweight stainless steel center housing.
  • Full hydraulic damping of the rotating assembly .
  • Integrated oil contaminate filter.
  • M62 race material allows higher temperature operation.
  • Metallic bearing cages.

Product Information

The revolutionary UHF™ aero XR69S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30%, giving the fastest response we have ever observed at this power level.

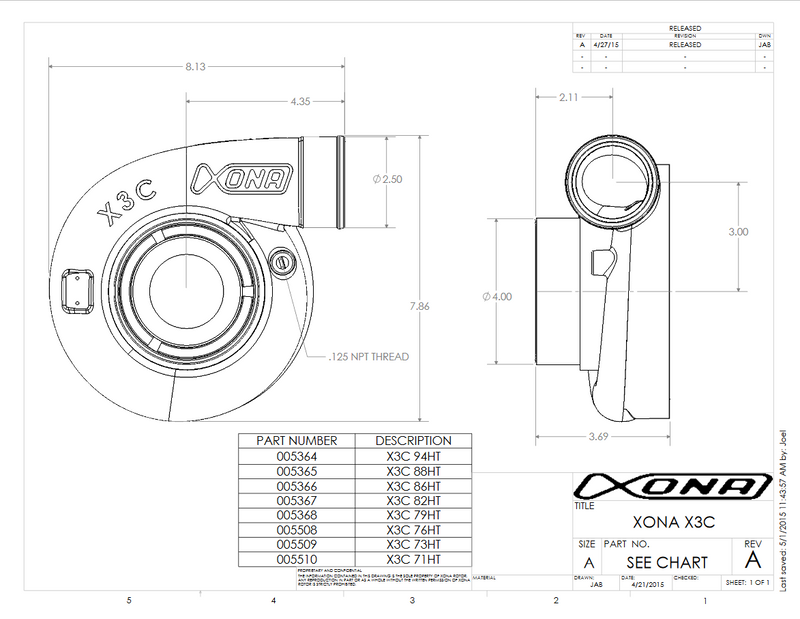

This turbocharger is available in the X3C and X4C Covers (picture is representative of compressor aero but not exact turbocharge specification)

Attention: Turbochargers are built to your order specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.

NOTICE: We recommend monitoring a speed sensor wired to your ecu or standalone gauge. Available here: TiALSport TSG-1 Turbine Speed Gauge Kit and Accessories – TiALSport Outlet (tialsport-outlet.com)


THIS PRODUCT IS FOR COMPETITION USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND TO USE THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT. THIS PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA ON ANY TYPE OF EMISSION CONTROLLED VEHICLE.

This part also goes by the following cross reference.
