Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT
Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT
Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT
Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT
Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT
Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT
Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT
Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT
Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT
Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT

Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT

AEROMOTIVE
Availability:
Out of stock
SKU AER13301
Sold out
$221.45 - $221.45
$221.45
$221.45 - $221.45
$221.45
Rewards
EARN REWARD POINTS
Purchasing this product will earn you 1105 points to redeem on future purchases. Check your points.

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

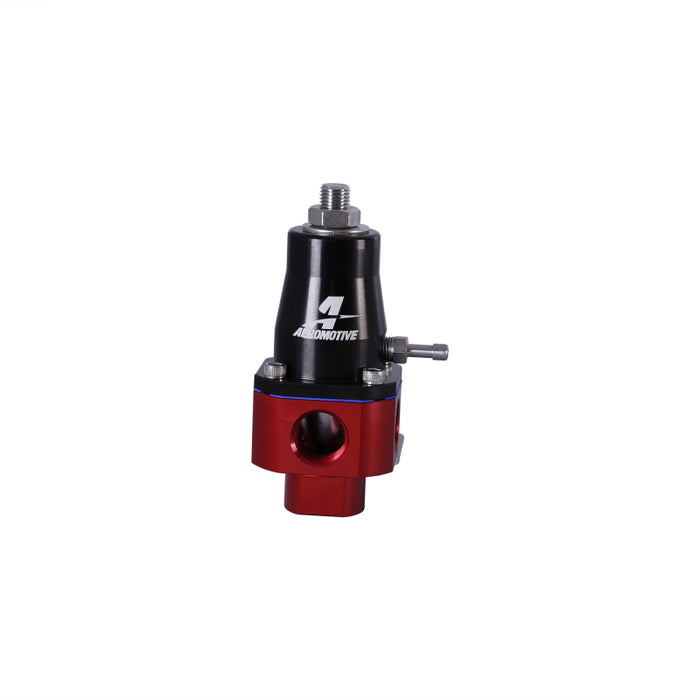

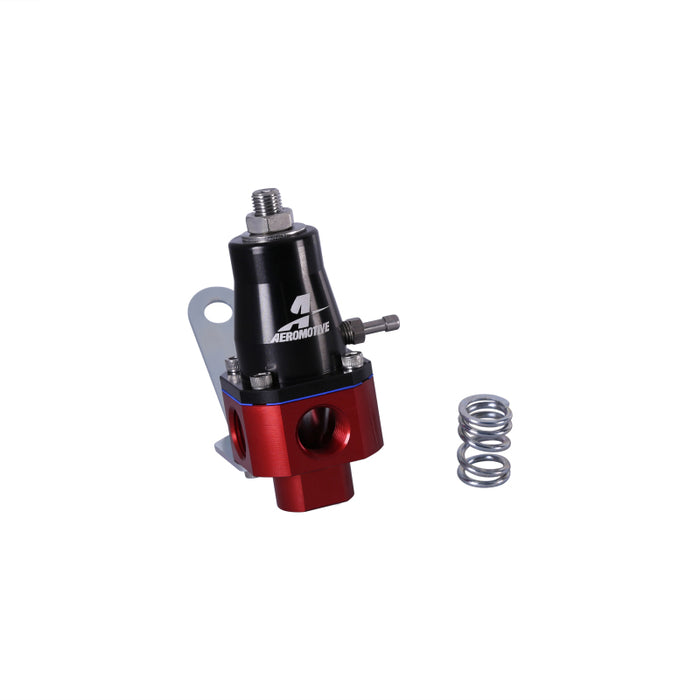

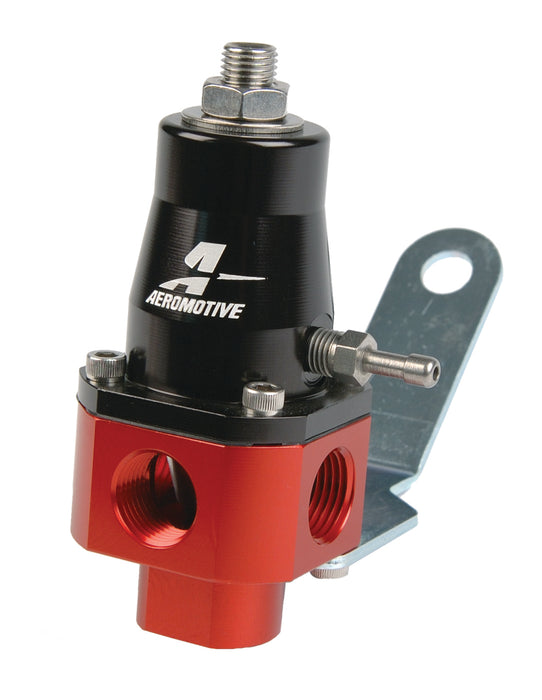

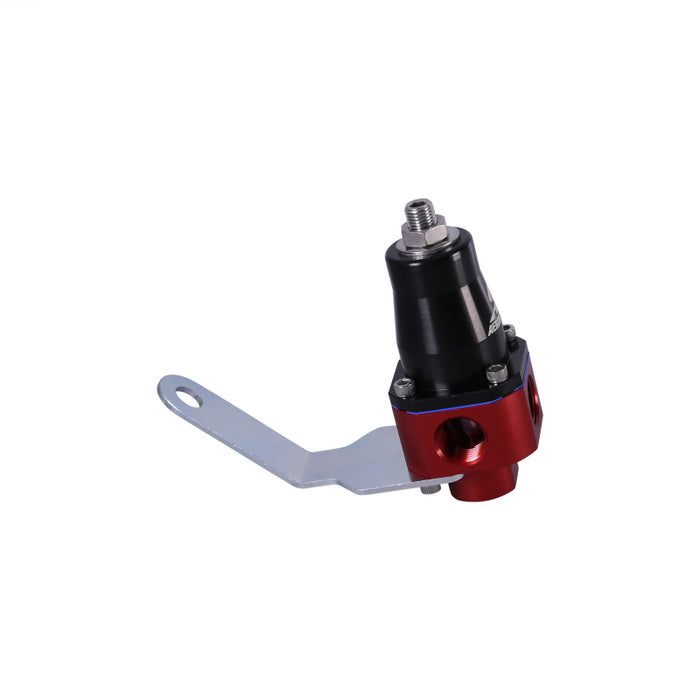

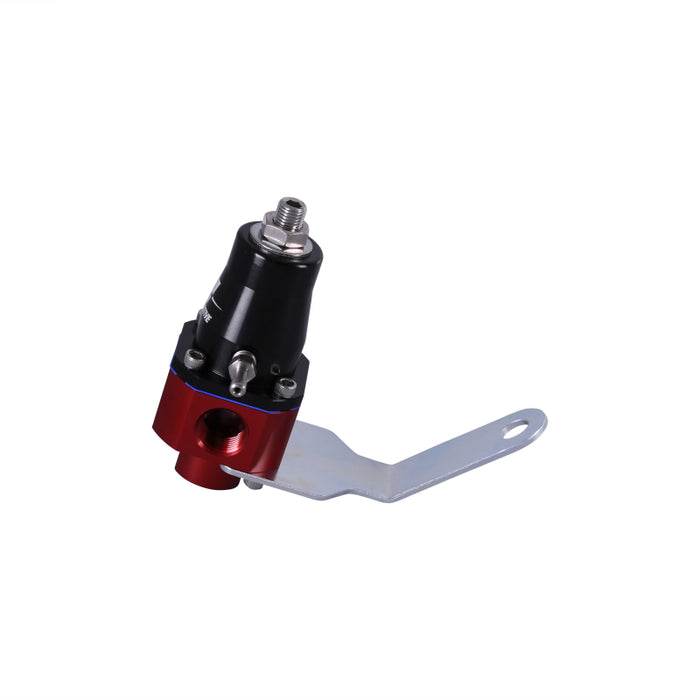

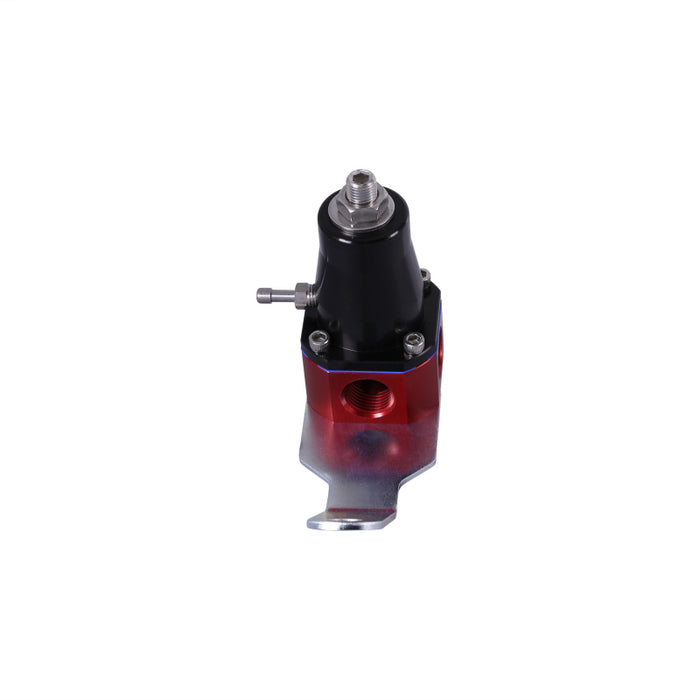

A dual purpose, universal regulator for EFI or Carbureted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive bypass regulator provides. Capable of regulating any fuel pump between 100 and 250 GPH. Fuel pressure rises on a 1:1 ratio when referencing boost. All ports are 3/8' NPT, with one inlet and three outlets on the main body and one return port on the bottom. Bypass design provides the ultimate, dynamic fuel pressure control.?Note: Requires a return line to be installed from the bottom of the regulator to the top of the tank.

This part also goes by the following cross reference.

Cross Reference Part Number:
