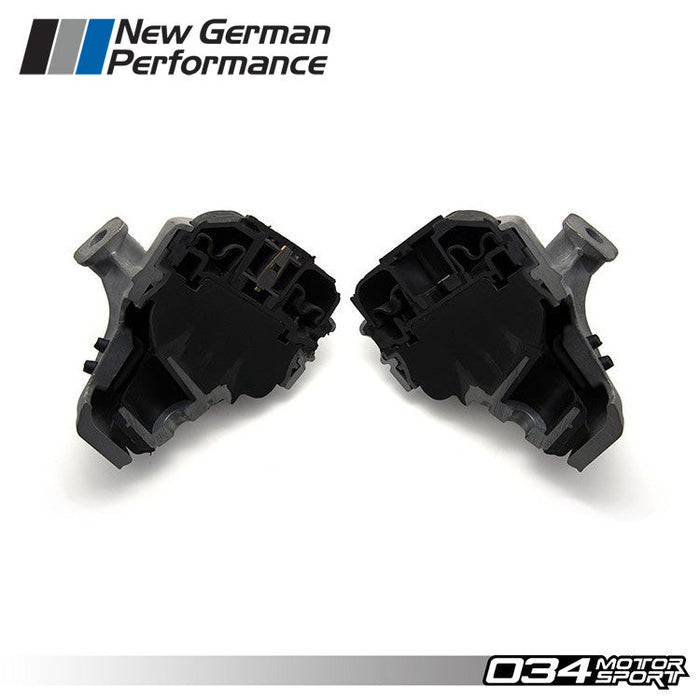

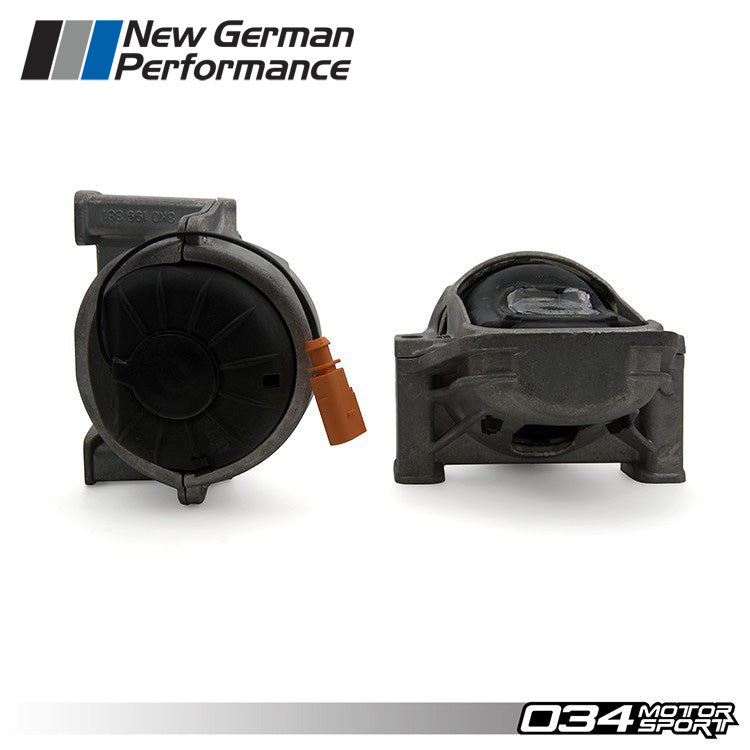

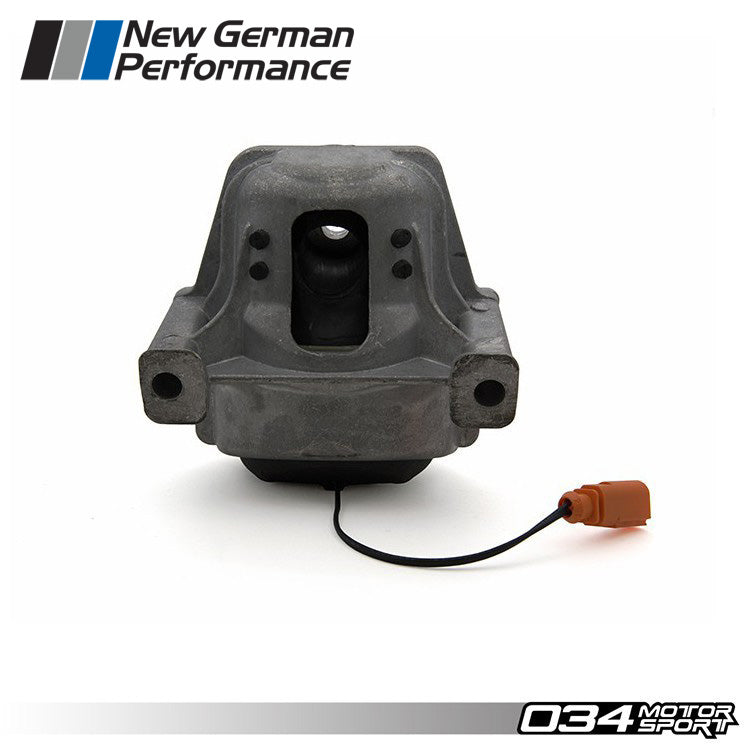

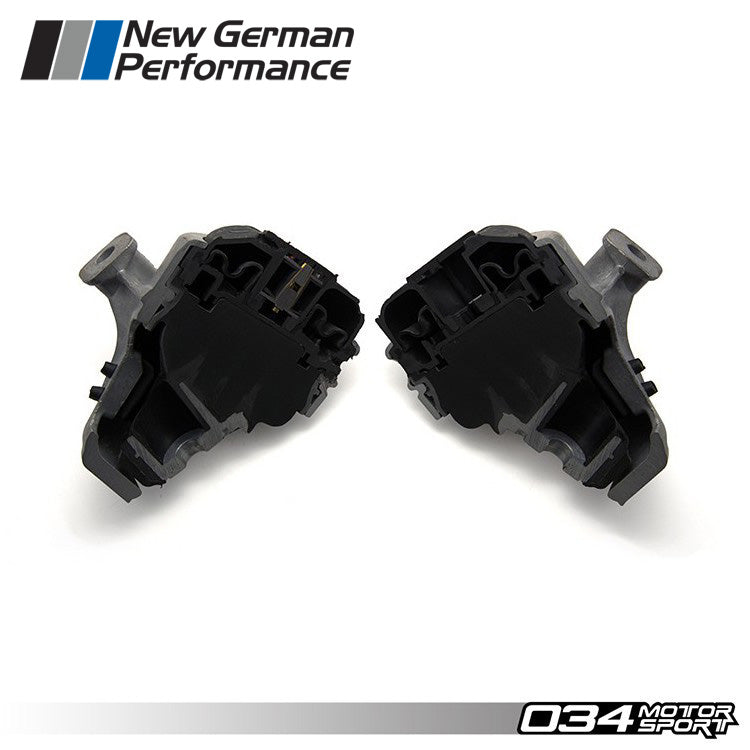

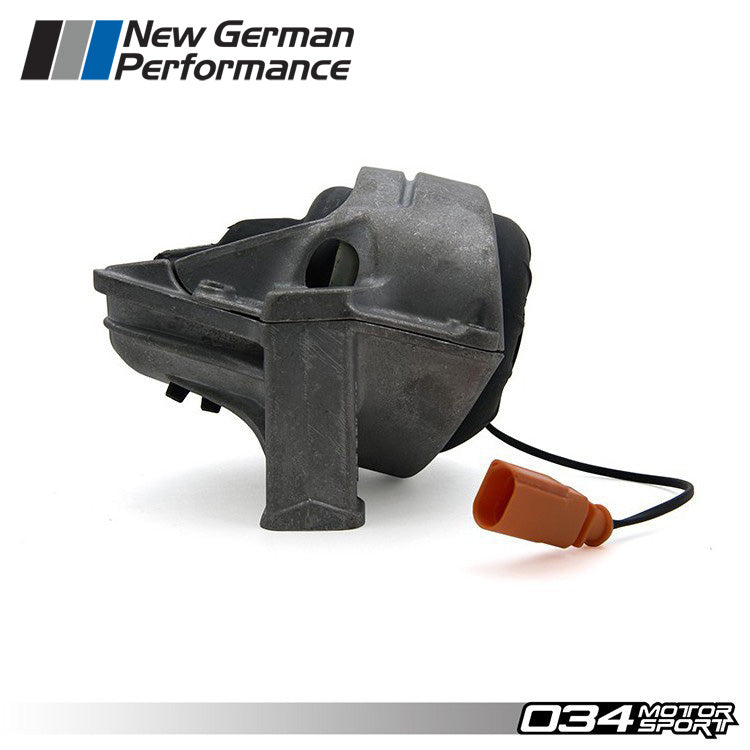

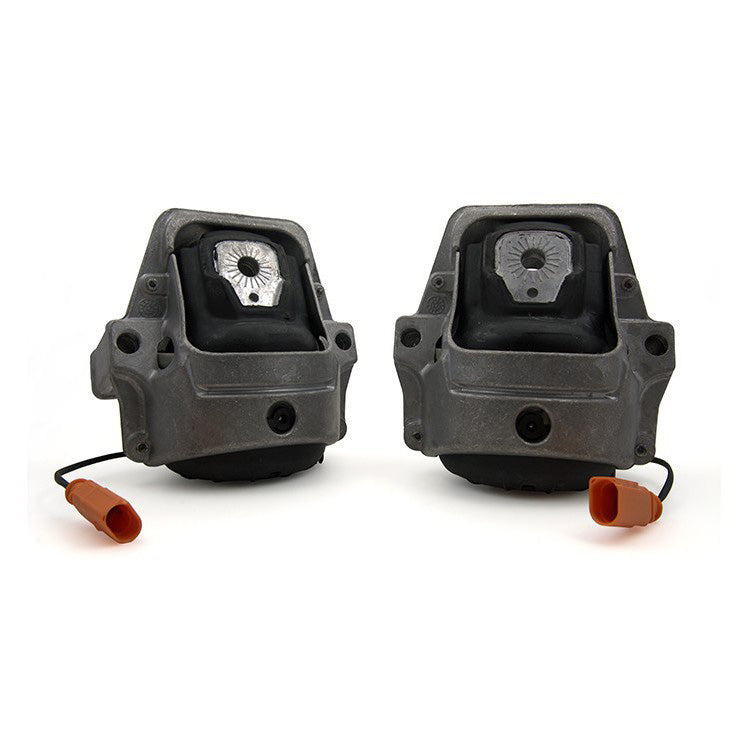

034Motorsport Motor Mounts, Street Density Line - B8/B8.5 Audi A4/A5/Q5 2.0 TFSI

034Motorsport's Density Line Mounts are the new standard in comfort and performance. 034's mounts are redesigned with performance in mind, and manufactured from high-durometer rubber for increased performance and durability, without sacrificing comfort. Density Line Mounts are void-free and fluid-free, eliminating the slop and the possibility of leakage and collapse associated with the factory mounts. The mount bodies are made from high quality cast aluminum using OEM production techniques and employ emulators to replicate the electronics of the factory engine mounts for plug-and-play installation. This ensures MIL-free operation for cars equipped with active engine mounts.

Density Line Mounts are manufactured from high-durometer rubber instead of polyurethane for a number of reasons. While vulcanized rubber mounts are more expensive to prototype due to the complexity of manufacturing and high initial tooling costs, rubber is inherently better than polyurethane as a damping medium for mounts and bushings. Rubber is able to deal with stress under both tension and compression, while polyurethane mounts rely on the damping medium to be effective only under compression. Rubber is also excellent in shear, where polyurethane is ineffective, making it ideal for applications that apply a shear force to the bushing during articulation. Rubber does not pack and wear like polyurethane does, which ultimately results in a long-lasting part with consistent performance and comfort.

Sold individually, two required per vehicle.

Features:

• Manufactured from 45 Durometer (Street Density) Rubber with Void-Free Construction
• Built-In Emulator with Plug-In Connector for Vehicles Equipped with Factory Active Mounts
• Reduced Drivetrain Slop
• Decreased Engine Movement Under Load
• More Direct Power Transfer
• Improved Shifting Feel
• Complete Drop-In Replacement of Factory Engine Mounts

Fitment/Applications:

• Audi A4 2008-2016 B8/B8.5 2.0T
• Audi A5 2008-2017 B8/B8.5 2.0T
• Audi A6 2012-2018 C7/C7.5 2.0 TFSI
• Audi A7 2012-2018 C7/C7.5 2.0 TFSI
• Audi Q5 2008-2017 B8/B8.5 2.0T
• Audi Allroad 2010-2016 B8/B8.5 2.0 TFSI

034-509-0061-SD

This part also goes by the following cross reference.

Cross Reference Part Number:
